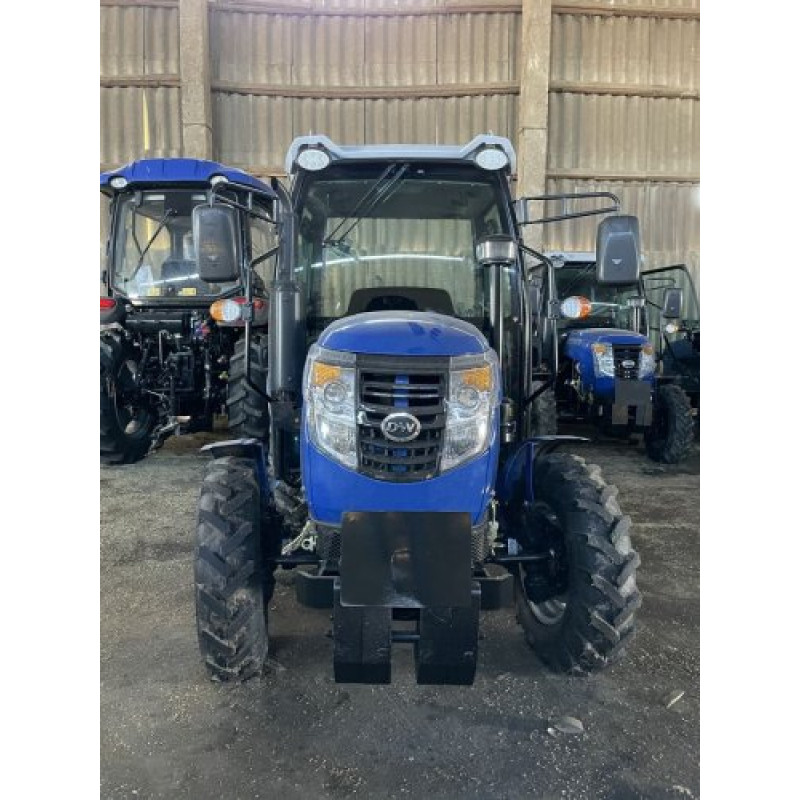

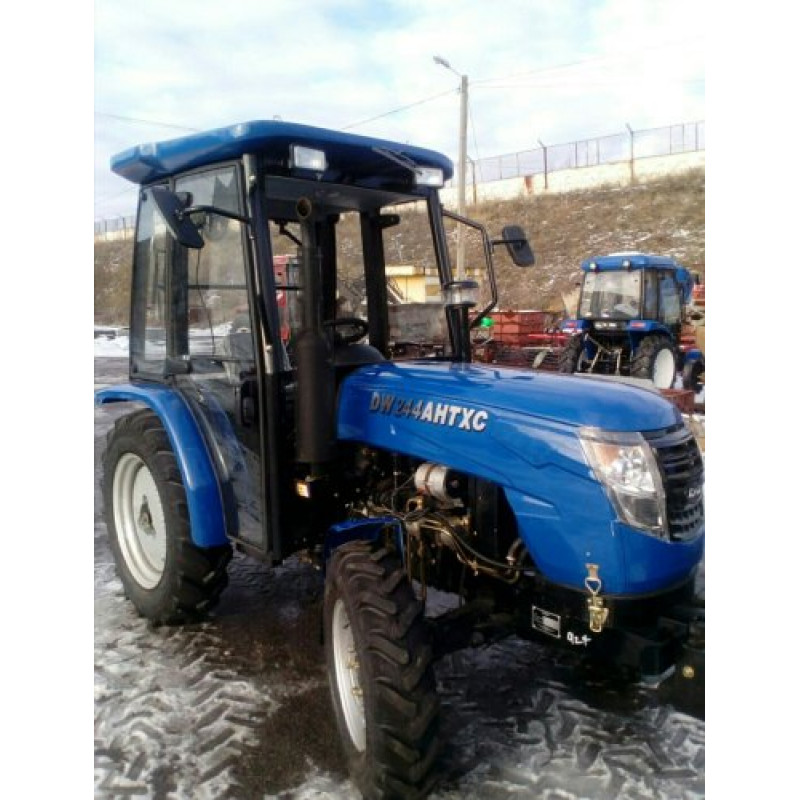

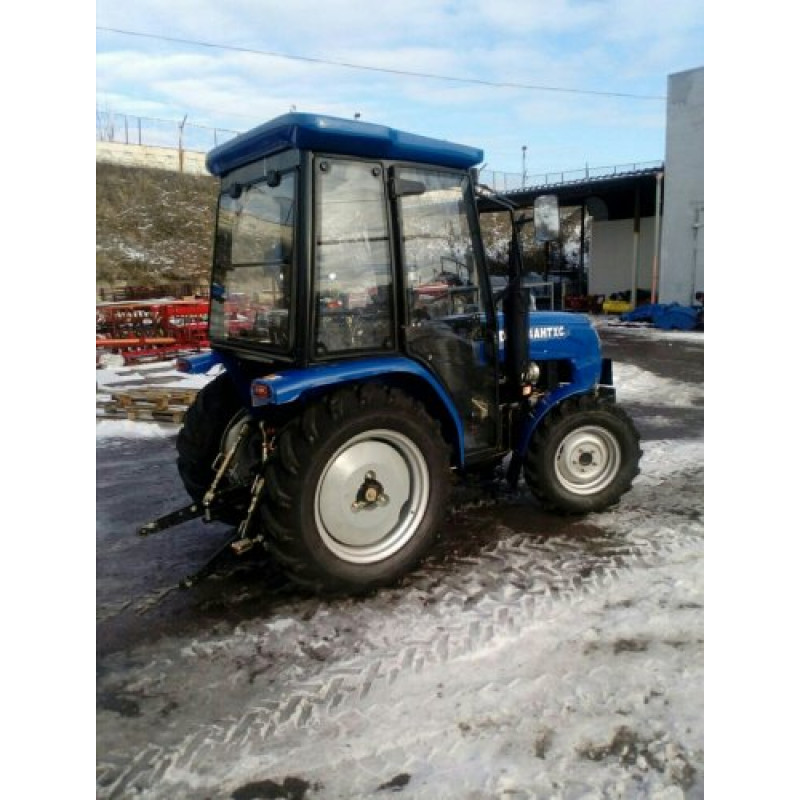

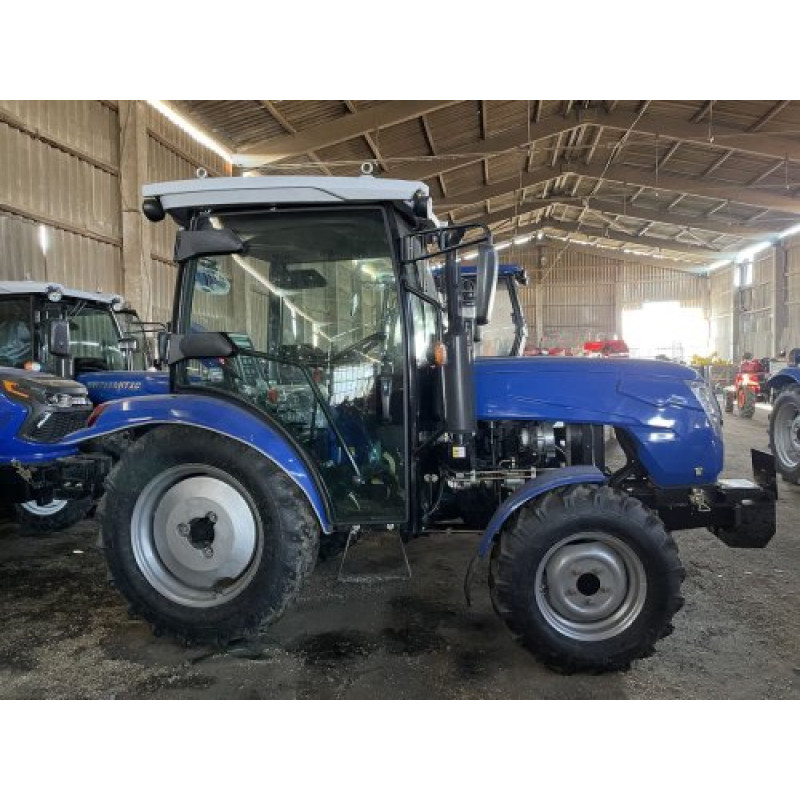

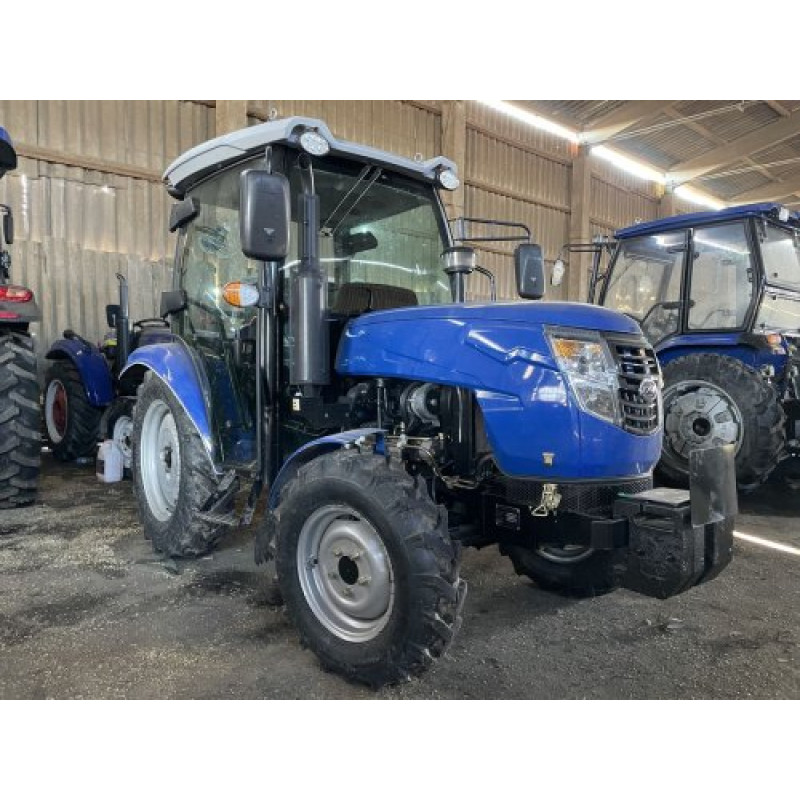

Mini Tractor DW 244 AHTXC — a reliable and comfortable choice
Model: The DW 244 AHTXC mini tractor from the manufacturer DW is a modern and functional mini tractor with a heated cabin, ensuring operator comfort in winter and ventilation in summer. The Flash Army online store (previously mentioned as Motokosmos in the announcement) offers this new product, which has already received positive feedback in Ukraine. This model is suitable for both private farms and commercial use in the agricultural sector.
Design and Engine
The DW 244 AHTXC structurally replicates the previous DW 244AHTX model and is equipped with a three-cylinder KM385BT engine. The engine is diesel, with a nominal power of 24 hp (17.65 kW), a displacement of 1531.33 cm3, a cylinder diameter / piston stroke of 85 / 90 mm, and nominal crankshaft revolutions of 2350 rpm. The starting system is an electric starter.
Key technical features:
water (liquid) engine cooling; power steering (GUR) for easy maneuvering; rear drum brakes with a separate braking system; 4x4 all-wheel drive and differential lock to reduce slippage; (4+1)x2 gearbox; PTO operating speeds of 540 / 720 rpm.
Wheels, Ground Clearance, and Dimensions
The description mentions a front wheel size of 6.50-16, while the technical specifications state 7.50-16; rear wheels are 11.2-24. The minimum ground clearance is 300 mm. The wheelbase is 1700 mm. Tractor dimensions: 3100x1600x2700 mm, weight 1490 kg.
Cabin Comfort and Equipment

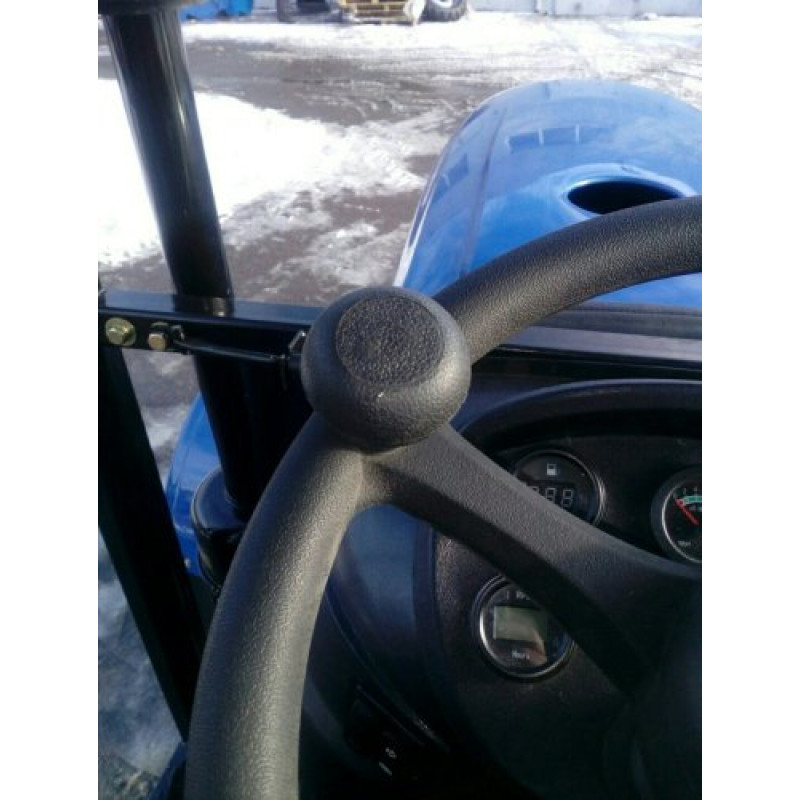

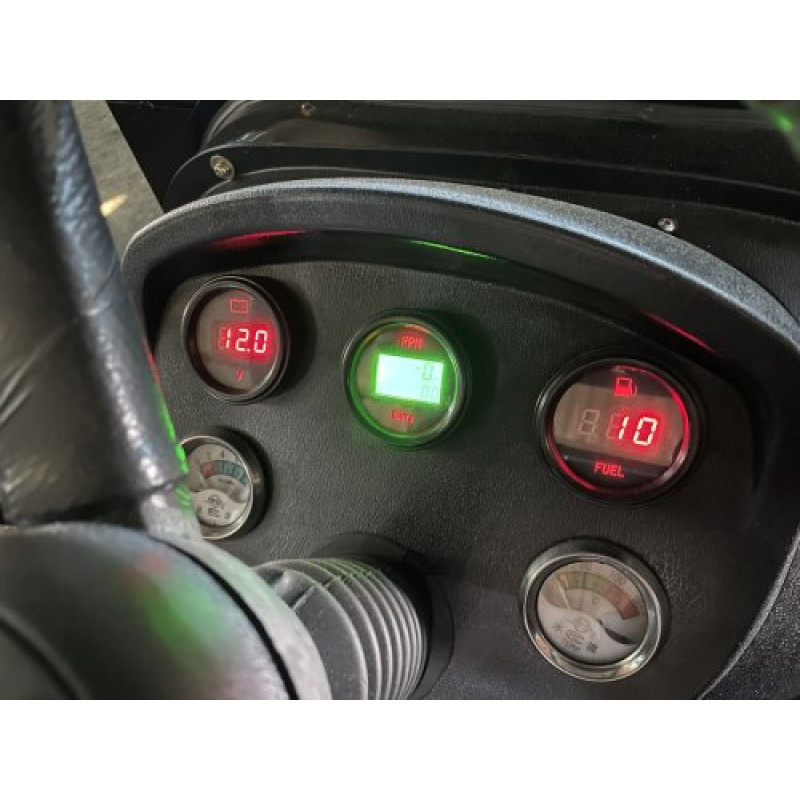

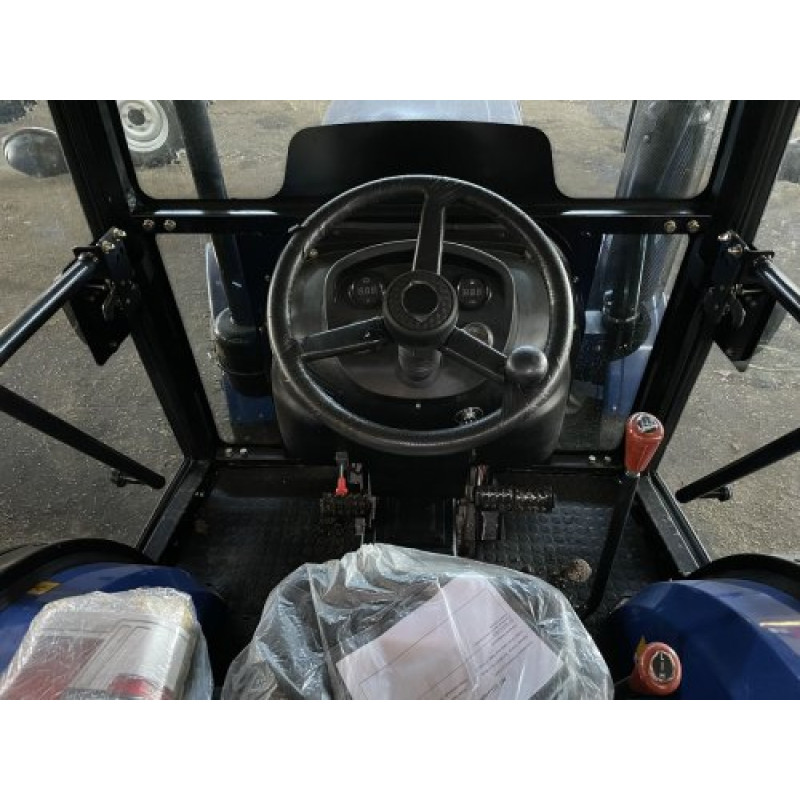

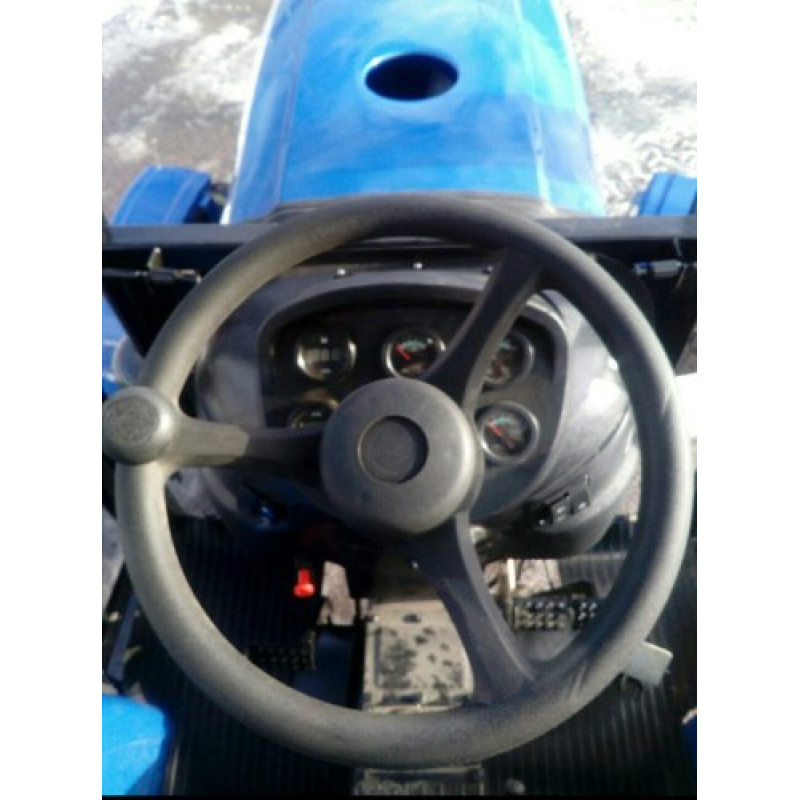

The heated cabin protects the operator from bad weather and has ventilation for the warm season. The seating area is wide and comfortable, the dashboard is equipped with backlighting, sensors, and headlight control buttons (high/low beam). An additional headlight is installed on the rear fender to illuminate the rear hitch when working in the dark. The engine starting system is an electric starter.

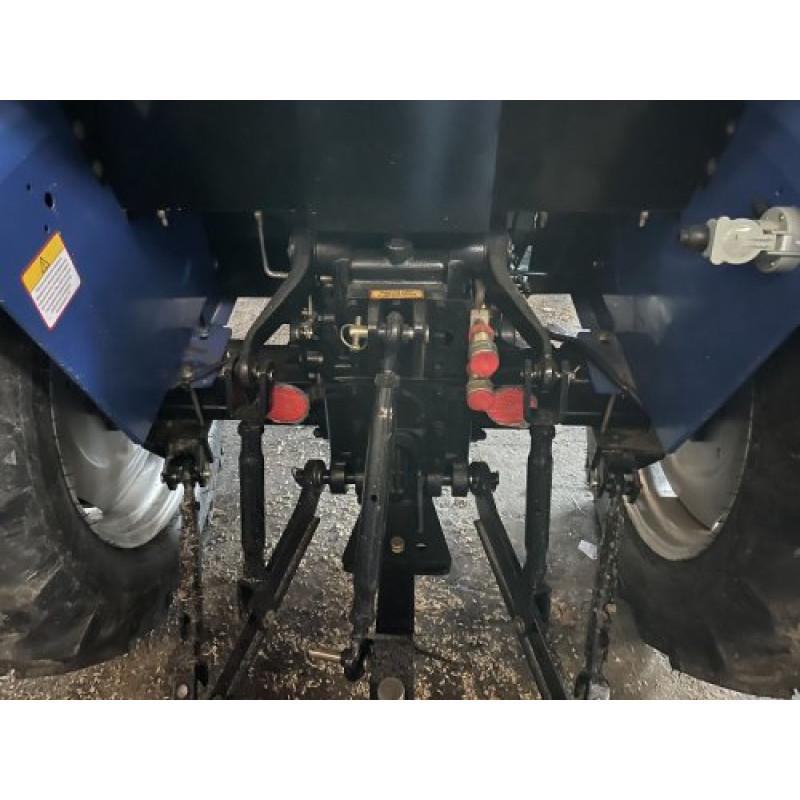

Maximum lifting capacity of the hitch mechanism is 420 kg. Fuel tank volume is 17.0 L. Nominal traction force is 5.8 kN. Nominal fuel consumption ≤275 g/kWh. Nominal engine oil consumption is 2.31 g/kWh. The main drive is direct, steering is hydraulic.
Operation and Purpose
The DW 244 AHTXC from DW is suitable for a wide range of tasks: cultivating small and medium-sized plots, working with attachments, transporting goods, and performing earthworks. All-wheel drive and differential lock ensure confident movement on rough terrain and hilly areas, and the (4+1)x2 transmission allows for flexible speed selection for various operations.
Recommended Analogues
- Jinma 404
- Shifeng 354
- Dongfeng
- Xingtai
- Foton
- Zoomlion
- DTZ 5244
- Bulat 454
- Bulat 250
- Bulat 254
- Belarus 320.4
- Shifeng 350 L
- DW 244
- DTZ 5404k
- Tractor Solis 26
- Solis 50
- Shifeng sf-244
How to buy: leave an electronic application on the Flash Army store website, and a manager will contact you to confirm the purchase and clarify delivery details.
Technical Specifications
| Engine power, hp (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel |
| Number of cylinders | 3 |
| Engine starting system | electric starter |
| Cooling system | liquid |
| Engine displacement, cm3 | 1531.33 |
| Cylinder diameter / piston stroke, mm | 85 / 90 |
| Nominal engine fuel consumption, g/kWh | ≤275 |
| Nominal crankshaft revolutions, rpm | 2350 |
| Nominal traction force, kN | 5.8 |
| Nominal engine oil consumption, g/kWh | 2.31 |
| Gearbox (КП) | (4+1)x2 |
| Front wheels | 7.50-16 |
| Rear wheels | 11.2-24 |
| Main drive | direct |
| Steering | hydraulic |
| PTO revolutions, rpm | 540 / 720 |
| Maximum lifting capacity of the hitch mechanism, kg | 420 |
| Minimum ground clearance, mm | 300 |
| Wheelbase, mm | 1700 |
| Fuel tank volume, L | 17.0 |
| Overall dimensions (L x W x H), mm | 3100x1600x2700 |
| Weight, kg | 1490 |
