Mini Tractor John Deere 3028EN
Brand: John Deere. Category: Tractors > Mini Tractors. Product Type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
Brief Overview

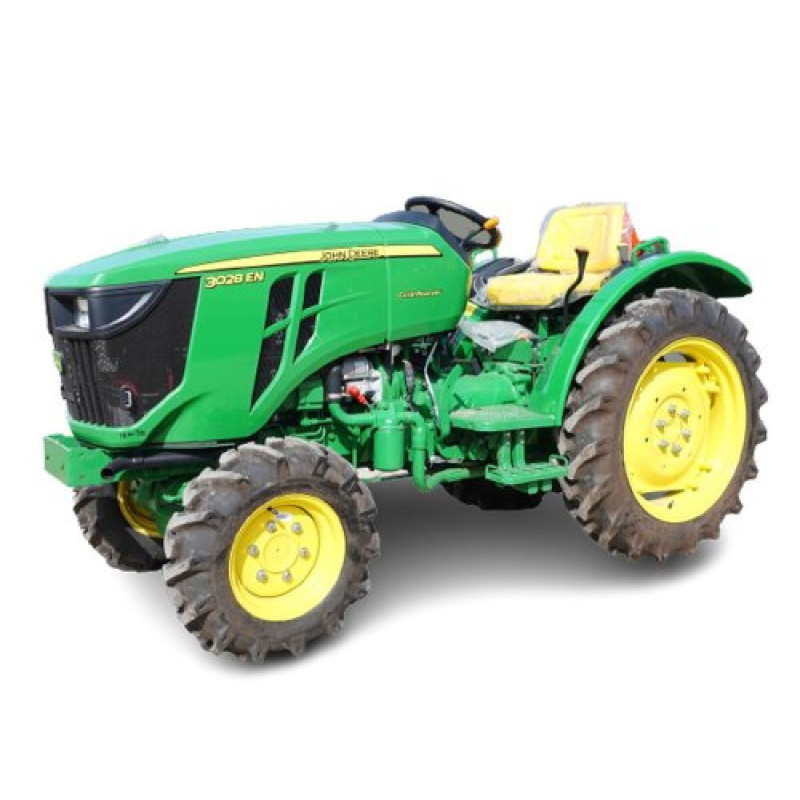

The John Deere 3028EN mini tractor is a compact and durable 4x4 unit, designed for farmers, utility services, and private households. With a power output of 28 hp (20.9 kW) and a 1500 cm3 diesel engine, this model is suitable for intensive work with mounted and trailed equipment: plowing, cultivation, transport operations, and area cleaning. Design solutions focus on reliability, simple maintenance, and low operating costs.
Technical Specifications
Below are all the main parameters of the John Deere 3028EN model.
| Tractor power, hp (kW) | 28 (20.9) |
| Wheel formula | 4x4 |
| Engine type | vertical, 3-cylinder 4-stroke diesel |
| Engine displacement, cm3 | 1500 |
| Cylinder bore / piston stroke | 84x90 |
| Fuel pump type | plunger, in-line |
| Rated engine crankshaft speed, rpm | 2100 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Transmission (gearbox) | (4+1)x2 |
| Transmission and rear axle oil type | transmission oil |
| Front axle oil type | transmission oil |
| Rear differential lock | + |
| Clutch | dry, single-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt drive |
| Brake mechanism | drum type |
| Power take-off (PTO) shaft speed, rpm | 540 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of mounted mechanism, kg | 615 |
| Minimum ground clearance, mm | 300 |
| Wheelbase, mm | 1870 |
| Tire size | rear 8.3-24.0, front 6.0-16.00 |
| Minimum turning radius, m | with one-sided brake 2.8, without brake 3.1 |
| Fuel tank capacity, L | 32 |
| Overall dimensions (LxWxH), mm | 2950x1100x1350 |
| Curb weight, kg | 1070 |
Advantages and Operation
The (4+1)x2 transmission provides a sufficient number of gears for field work and road transport, while the dry single-disc clutch increases durability under intensive loads. The rear differential lock enhances проходимость on difficult terrain, and the 300 mm ground clearance and large tires (rear 8.3-24, front 6.0-16) help overcome obstacles and work in row crops.
Power steering with a separate pump and oil reservoir makes steering easy even with mounted equipment. The cooling system with a V-belt driven fan effectively protects the engine from overheating, and drum brakes ensure reliable braking in field conditions. The 540 rpm PTO supports compatibility with a wide range of implements, and the hydraulic system's gear pump provides a lifting capacity of up to 615 kg for the mounted mechanism.
Compact dimensions of 2950x1100x1350 mm and a wheelbase of 1870 mm make the John Deere 3028EN maneuverable in greenhouses, row crops, and confined spaces. The generous 32 L fuel tank reduces the need for refueling during a work shift. The combination of thoughtful design and quality components guarantees a long service life and minimal operating costs.
This mini tractor is ideal for farms, private homesteads, and municipal use where a versatile, reliable, and economical unit is needed for various tasks.
Other important parameters and technical solutions are detailed in the table above, allowing for a quick assessment of the model's suitability for your tasks.
