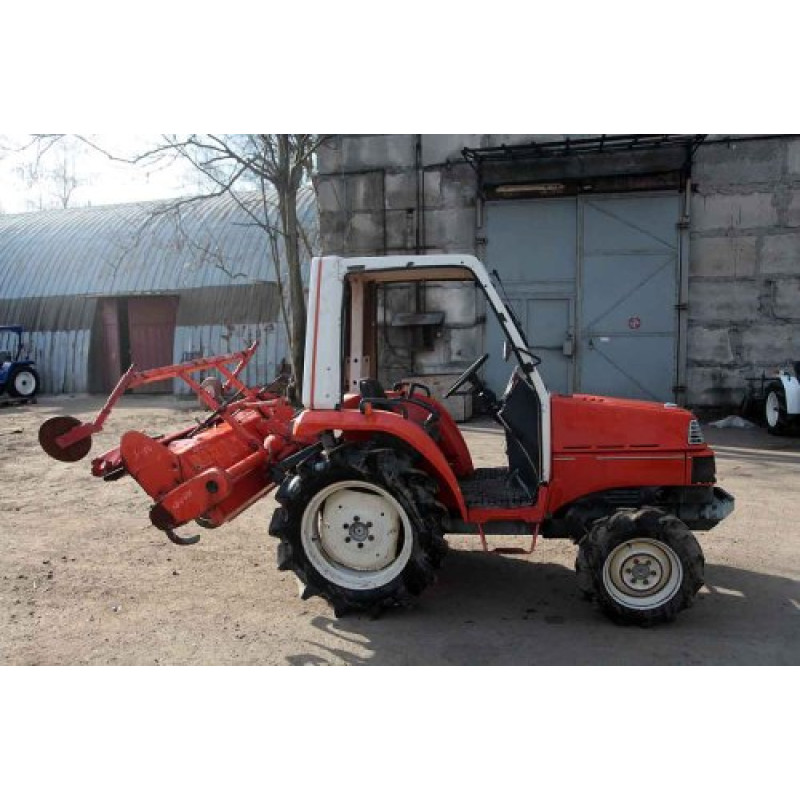

Mini Tractor KUBOTA X-20 Cab

Kubota X-20 Cab Mini Tractor in Ukraine
This compact and versatile model is designed for cultivating gardens, orchards, and field plots up to 5 hectares. The Kubota X-20 Cab combines reliability and durability: high-quality components, refined assembly, and a robust design ensure operation for over 30 years with proper maintenance. Thanks to its compact dimensions and wide range of functions, this mini tractor is ideal for household use, small farms, or service work in urban environments.

Engine and Fuel System

At the heart of the Kubota X-20 Cab is a 3-cylinder, 20 hp locally produced diesel engine, developed at a Japanese factory. The cooling system is forced liquid-cooled with a radiator and a fan connected to the coolant pump. For easier starting, pre-heating is provided (glow plug on the intake manifold). The fuel system is equipped with a high-pressure fuel pump (HPFP), which ensures economical fuel consumption and stable operation under load.

Chassis, Transmission, and Steering

The mini tractor offers 2WD/4WD drive options and track adjustment, making it convenient for inter-row cultivation, planting, hilling, spraying, and fertilizing crops. The minimum turning radius is 2.2 m, ensuring maneuverability in narrow passages. Wheel configuration: front wheels 7.00-14, rear wheels 9.5-22. Brakes are drum-type with hydraulic drive. The gearbox has 12+8 gears, and mechanical differential lock on the rear axle enhances проходимость in difficult conditions.

Hydraulics and PTO

The hydraulic system is two-section, and the lifting mechanism has a nominal lifting capacity of 600 kg — sufficient for most mounted implements. The PTO is three-speed: 540/770/1250 rpm; for ease of operation, the PTO lever is separately located, allowing quick engagement/disengagement and selection of the required speeds. Hydraulic control is performed by a lift/lower lever with tilt and depth adjustment for implements.

Options and Controls

Standard equipment includes hydraulic power steering, an integrated dashboard with all necessary gauges, a quick-turn lever (a useful option when working in confined spaces), a separate PTO lever, a standard set of pedals (accelerator, hand throttle, split brakes), and a single-disc clutch. This set makes the Kubota X-20 Cab convenient for daily operation and performing various tasks.

Price: The estimated cost of the Kubota X-20 Cab mini tractor is $7000. The price may vary depending on the dollar exchange rate, delivery terms, and additional equipment. Payment is cash upon receipt; installment purchase option is available.

Specifications:

Below are the key features and options of the Kubota X-20 Cab model in a convenient format:

• 1. Hydraulic power steering.
• 2. Integrated dashboard with all necessary gauges.
• 3. Quick-turn lever — a useful feature when working in confined spaces.
• 4. Mechanical differential lock on the rear axle.
• 5. Gearbox — 12+8 gears.
• 6. Separately located PTO lever for engaging/disengaging and selecting PTO speed.
• 7. Hydraulic control: lift/lower lever, tilt adjustment for implements, and working depth.
• 8. Standard set of pedals: accelerator, hand throttle, split brakes, single-disc clutch.

Manufacturer: Kubota. Product category: Mini Tractors (Tractors > Mini Tractors section). This mini tractor will be an excellent choice for those looking for compact, reliable, and durable equipment with a full set of useful options.
