Mini Tractor DMTZ 244HX NEW — DMTZ

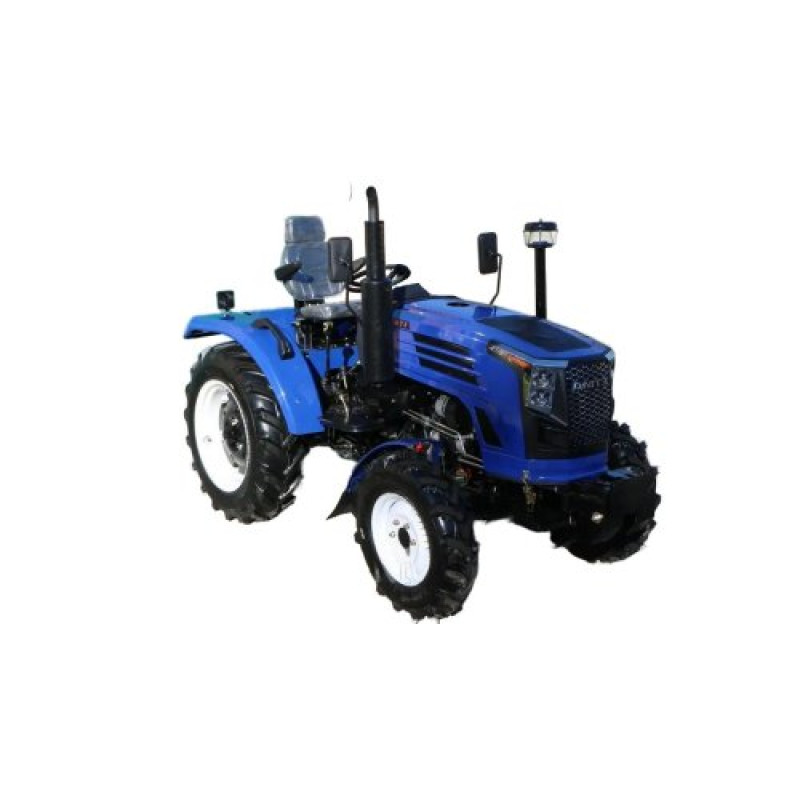

The DMTZ 244HX NEW mini tractor is a reliable and versatile compact tractor from the manufacturer DMTZ, designed for private farms, horticulture, municipal work, and landscape design. This model combines compact dimensions, 4x4 all-wheel drive, an economical three-cylinder diesel engine, and a simple mechanical transmission, ensuring convenient operation in confined areas and on rough terrain.
Briefly about the advantages: A reliable three-cylinder four-stroke diesel engine with direct fuel injection and liquid cooling provides 24 hp (17.6 kW) of power. A robust mechanical non-synchronized gearbox paired with a single-disc dry clutch guarantees long-term operation with correct use. 4x4 all-wheel drive and a ground clearance of 400 mm provide good off-road capability, while dimensions of 3250x1500x1900 mm and a wheelbase of 1820 mm ensure maneuverability in narrow rows and between trees.
Application: The DMTZ 244HX NEW is suitable for soil cultivation with small plows and cultivators, performing tasks with mounted and trailed equipment, mowing grass, snow removal, and transporting goods on the farm. The 540 rpm power take-off (PTO) shaft ensures compatibility with most small-class mounted and trailed equipment.
Key technical specifications:
- Engine type: three-cylinder diesel, four-stroke, with direct fuel injection, non-turbocharged, liquid-cooled.
- Engine displacement: 1532 cm3.
- Engine power: 24 hp (17.6 kW).
- Number of cylinders: 3; cylinder diameter: 85 mm; piston stroke: 90 mm.
- Engine structural weight: 234 kg.
- Wheelbase: 1820 mm; overall dimensions: 3250x1500x1900 mm; ground clearance: 400 mm.
- Drive type: 4x4; transmission type: mechanical, non-synchronized; number of gears (forward/reverse): (4+1)x2.
- Clutch: single-disc dry; power take-off shaft: 540 rpm.
- Front wheel size: 6.5x16; rear: 11.2x24; fuel tank capacity: 25 L.
Technical Specifications
| Engine type | Three-cylinder diesel, four-stroke, with direct fuel injection, non-turbocharged, liquid-cooled |
| Engine displacement, cm3 | 1532 cm3 |
| Engine power, hp and kW | 24 hp or 17.6 kW |
| Number of engine cylinders | 3 |
| Cylinder diameter | 85 mm |
| Piston stroke | 90 mm |
| Engine structural weight, kg | 234 kg |
| Wheelbase, mm | 1820 mm |
| Overall dimensions, mm | 3250x1500x1900 mm |
| Ground clearance, mm | 400 mm |
| Drive type | 4x4 |
| Transmission type | Mechanical, non-synchronized |
| Number of gears (forward/reverse) | (4+1)x2 |
| Clutch | Single-disc dry |
| Power take-off shaft, rpm | 540 |
| Front wheel size | 6.5x16 |
| Rear wheel size | 11.2x24 |
| Fuel tank capacity, L | 25 |
The DMTZ 244HX NEW model from the DMTZ brand belongs to the category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. This model offers an optimal combination of power, off-road capability, and economy for small farm owners, ensuring ease of maintenance and component durability.
If you need a compact and versatile mini tractor for regular field work, garden care, or seasonal municipal tasks — the DMTZ 244HX NEW will be a cost-effective solution.
