Miniature EW Jammer "Hela-2A" — Anti-Mavic for Two Bands
We offer a compact mobile counter-UAV system — the Miniature EW Jammer "Hela-2A". Model: Miniature EW Jammer Hela-2A. Brand: Loki. Manufacturer / Brand (from product data): Asgard Defence Technologies. Category: EW Jammers (in product structure: EW Jammers > Trench EW Jammers). Product ID: 4749. The device is designed for rapid deployment on vehicles, positions, and for personal protection of personnel.
Description and Purpose
The Miniature EW Jammer "Hela-2A" is a versatile anti-Mavic system, designed as a lightweight and mobile means of protection against Mavic family drones and against munition drops. The body is made in the form of a compact box with dimensions of 210mm*100mm*150mm (technical specifications also list dimensions as 210mm x 150mm x 100mm) and a weight of only 2.5 kg (body + antennas). The device is conveniently installed on a vehicle roof using magnets, mounted on positions, or carried on an infantry backpack.
Operational Capabilities
The system blocks drone control channels in two operating bands: 2400-2500 MHz and 5725-5850 MHz. It provides an effective jamming range of up to 300 m, provided the distance between the drone and the drone operator is up to 3000 m. The device is equipped with a remote control for convenient operation from a distance.
Power and Autonomy
The EW jammer can be powered by DC sources 12V, 24V, 28V or from a 220V mains supply via a 220→28V power supply unit with a recommended current of at least 10 A. The autonomous operating time from the system's battery is up to 4 hours, allowing tasks to be performed in field conditions without frequent recharging.
Technical Specifications
- Two Bands: 2400-2500 MHz and 5725-5850 MHz.
- Power: 50 W per antenna, total output power 100 W.
- Effective Range: up to 300 m (under specified conditions).
- Average Output Power: 47 dBm.
- Power Supply: DC 12/24/28V; also operates from 220V via 220-28V PSU (10A and above).
- Operating Temperature: -25°C to +55°C.
- Weight: 2.5 kg (body + antennas).
- Dimensions: specified as 210mm*100mm*150mm and in specifications as 210mm x 150mm x 100mm.
- Technology: GaN — improved efficiency, less heat generation, and more compact size.
- Cooling: dual active cooling.
- Protection: reverse polarity protection.
- Manufacture: Ukraine.
Design Features and Antennas
The design uses installed quadrifilar-type antennas, which provide wide coverage and stable suppression of drone control channels. Thanks to GaN technology and a dual active cooling system, the device offers high efficiency with compact dimensions and low heat dissipation.
Package Contents
- "Hela" System — 1 pc. (assembled).
- Power Cable — 3.5 m length.

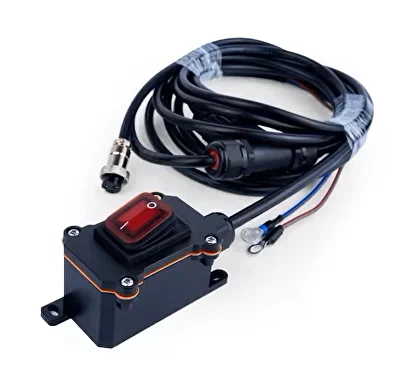

- Remote Control — remote control with 3.5 m cable.
Among the advantages of the system: low weight, compact dimensions, easy installation on vehicles or positions, convenient power supply and control, high output power for effective suppression of Mavic control channels.

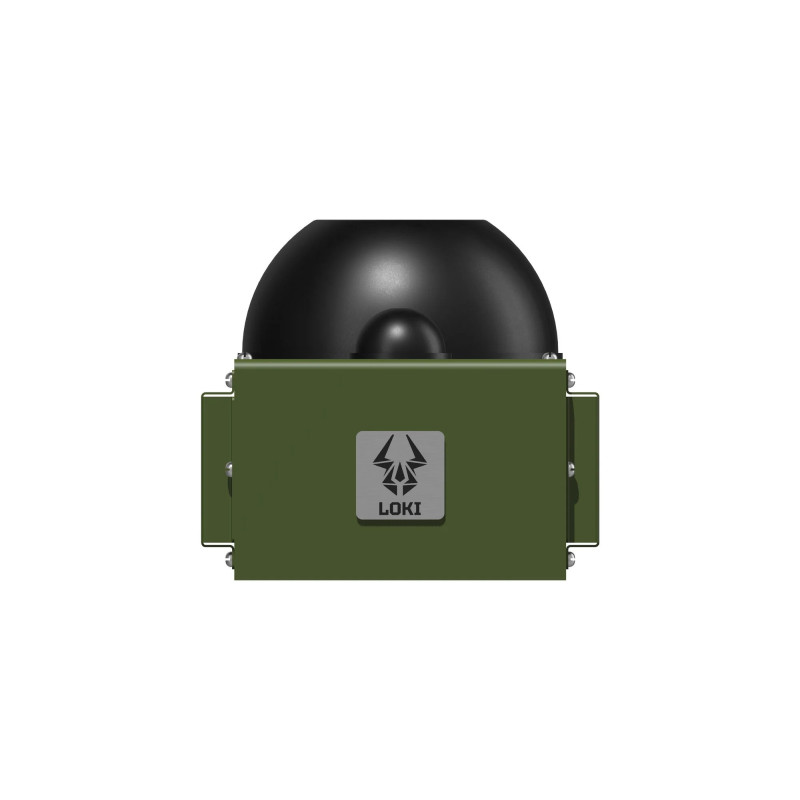

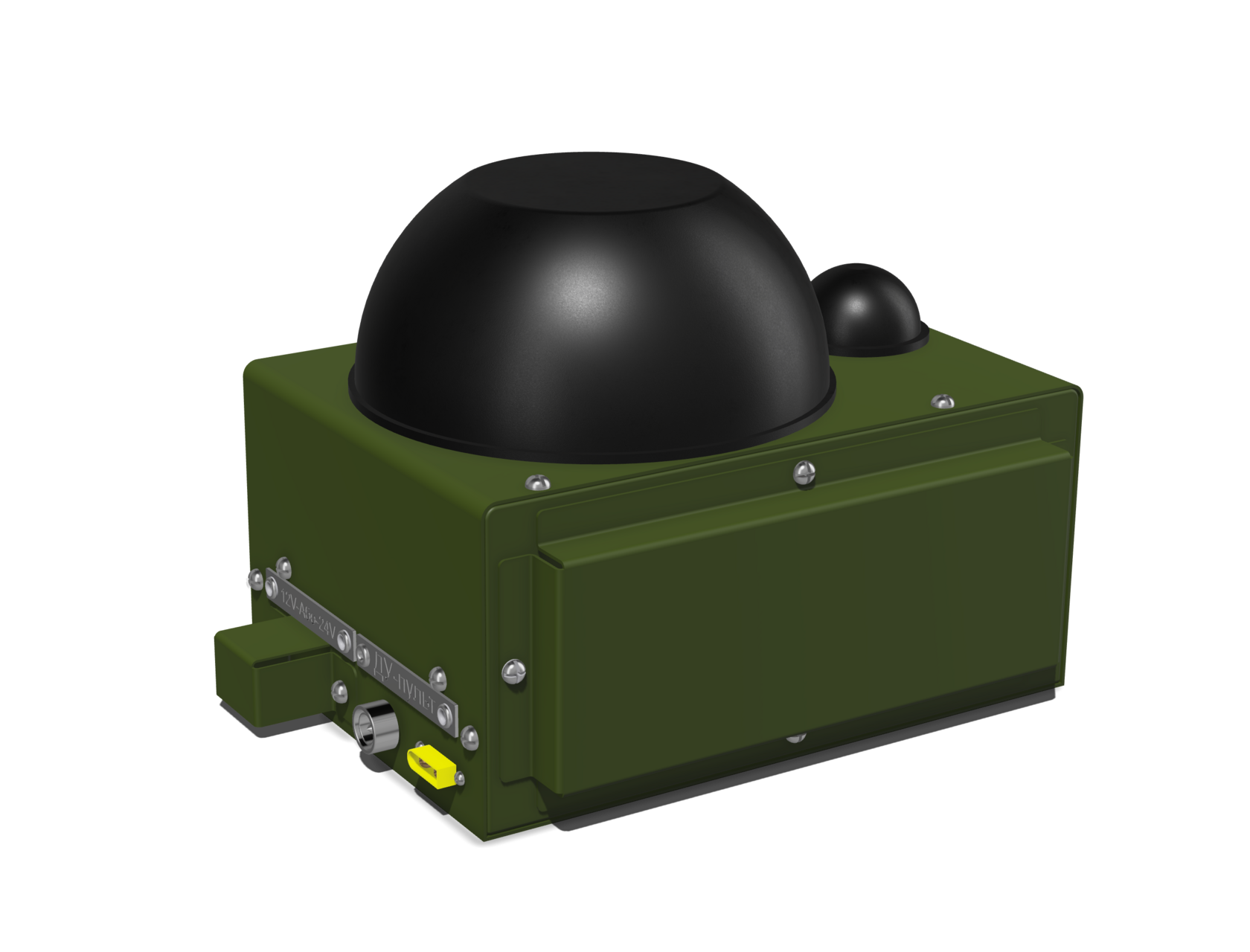

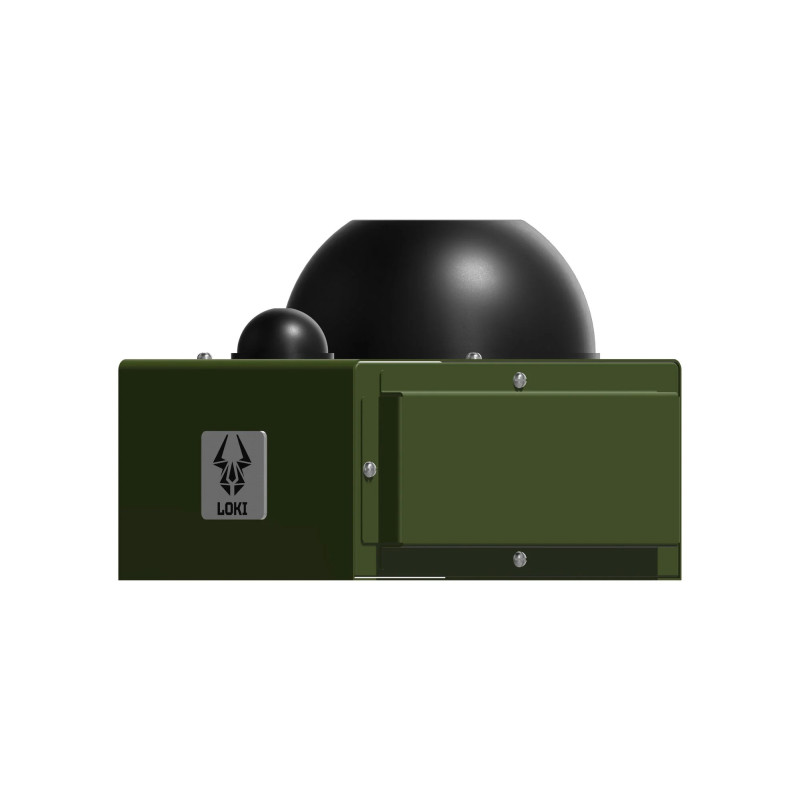

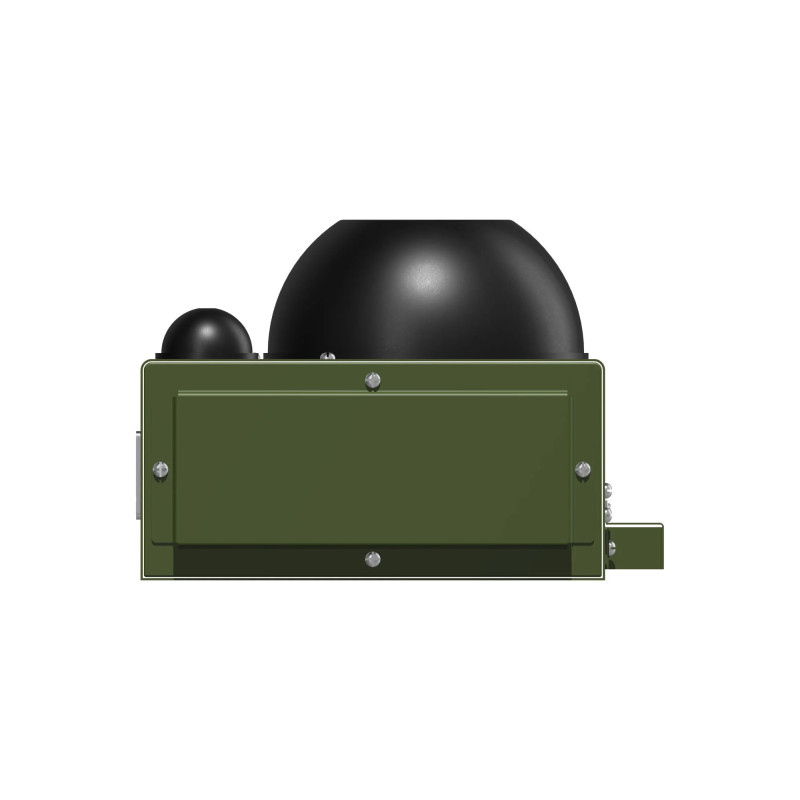

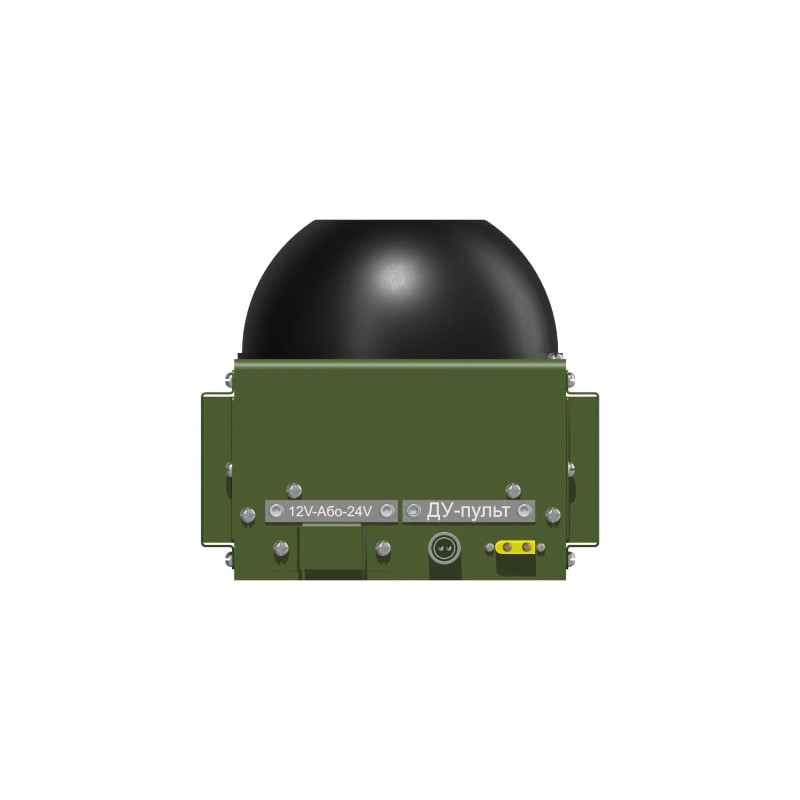

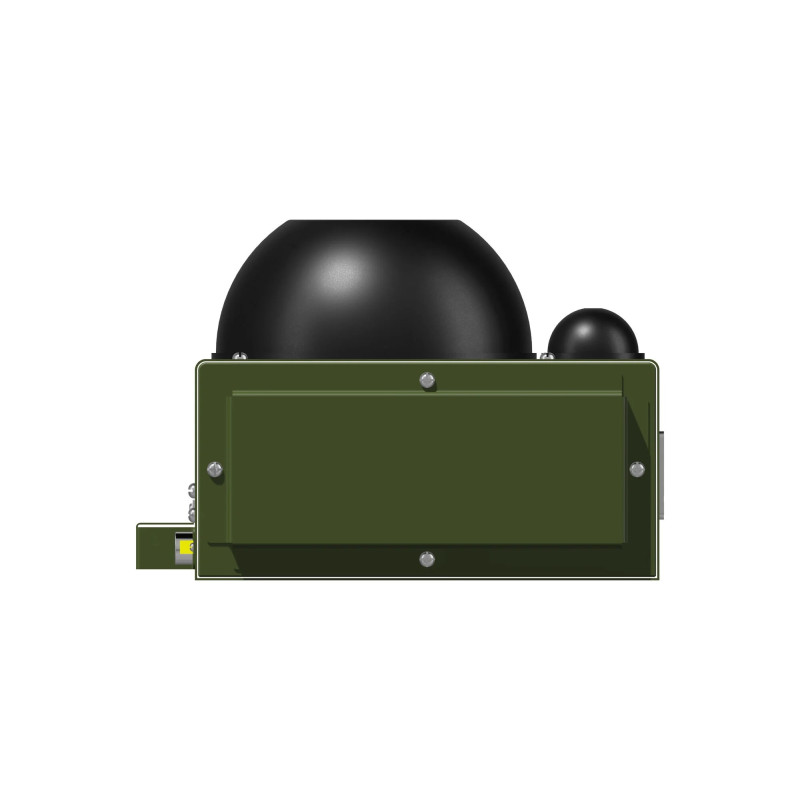

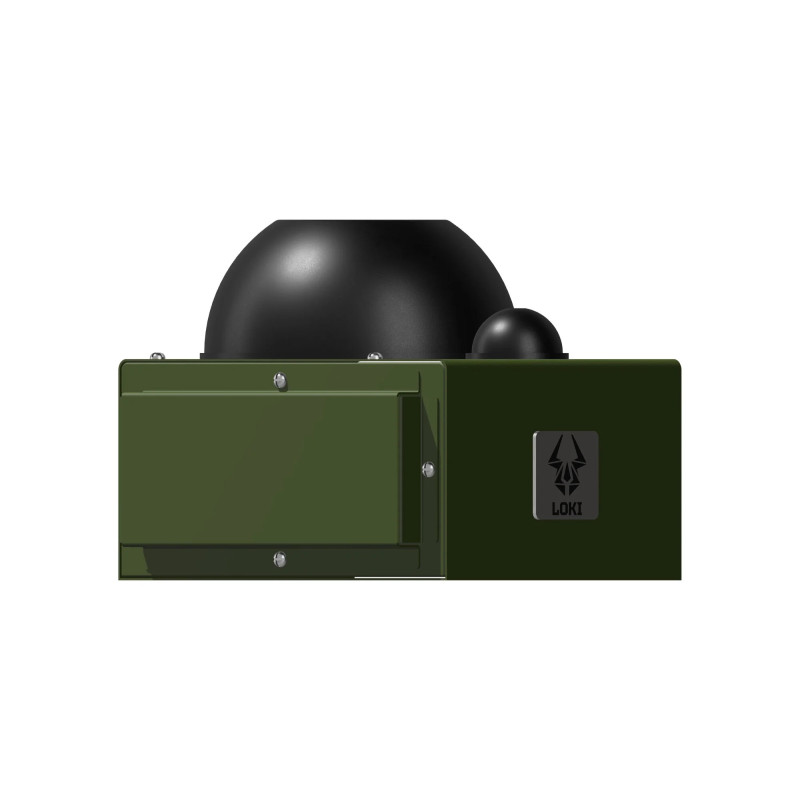

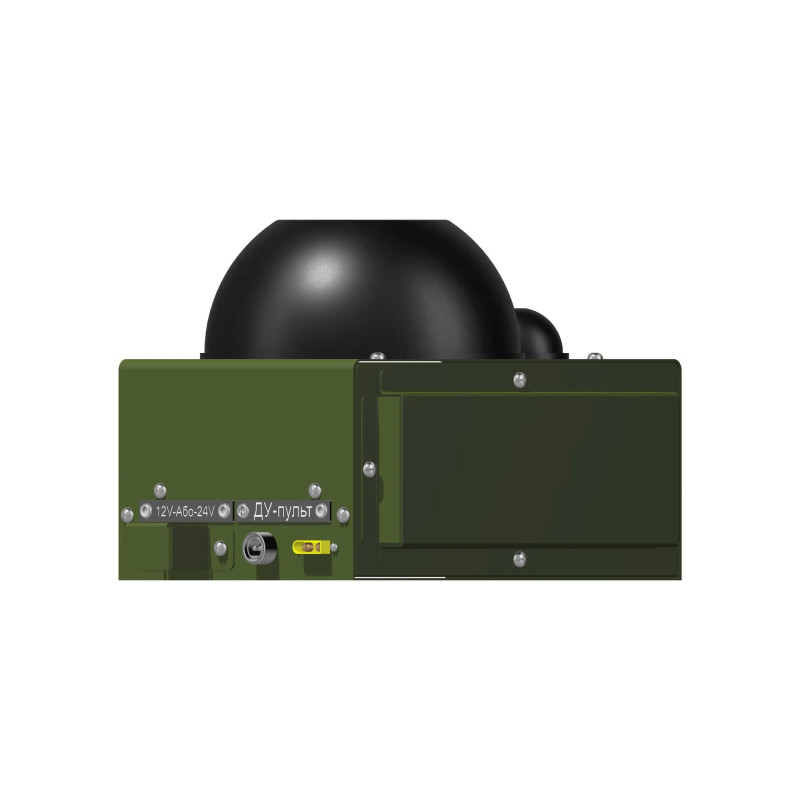

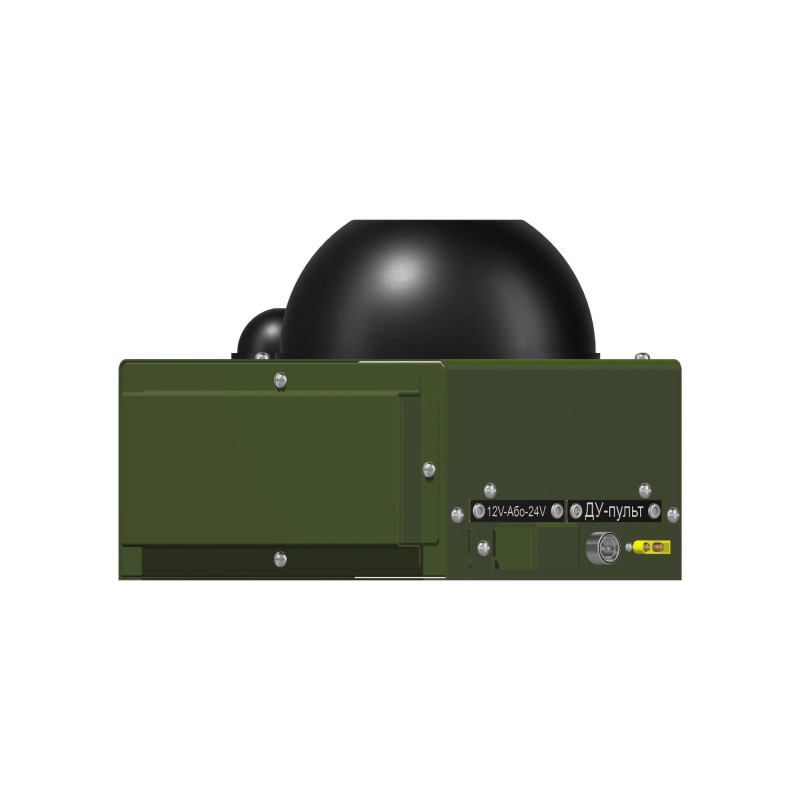

Links to photos and images of the system:
The Miniature EW Jammer "Hela-2A" by Loki is a practical solution for mobile protection against Mavic: combining modern GaN technology, high output power, convenient power supply, and ease of operation in field conditions. All information provided corresponds to the original product description and its technical parameters (ID 4749, category EW Jammers > Trench EW Jammers, manufacturer Asgard Defence Technologies).
