EW Jammer "Pysets" for FPV Drones on 4 Bands (410-525 MHz, 720-1050 MHz)

The "Pysets" modular electronic warfare countermeasure system from ZAVADA is a versatile vehicle-mounted or trench-based EW solution designed for reliable suppression of FPV channels and protection against UAVs in the 410-525 MHz and 720-1050 MHz bands. Thanks to its modular architecture, the system adapts to various field and mobile operations: it can be quickly mounted on a vehicle using an optional magnetic mount or installed in stationary trench positions.

Key Features

• Type: Vehicle-mounted or trench-based EW jammer
• Number of channels: 4
• Frequency range: 410-525 MHz, 720-1050 MHz (detailed breakdown: 393-505 MHz, 720-827 MHz, 830-937 MHz, 940-1050 MHz)
• Antennas: Quadrifilar (omnidirectional)
• Casing: Sealed, IP65 protection rating
• Power supply: 12-24V
• Optional magnetic vehicle mount

Technical Specifications

The system provides radio interference power within 40-60 W (80-110 MHz). Power consumption for one module is 150-180 W/h, and for a full configuration of 6 modules, it is up to 924 W. The capacity of the built-in battery (АКБ) is 2220 Wh. Operating time varies depending on temperature conditions and operating mode: approximately 40-140 minutes; with a 6-module configuration, the battery lasts for approximately 2 hours.

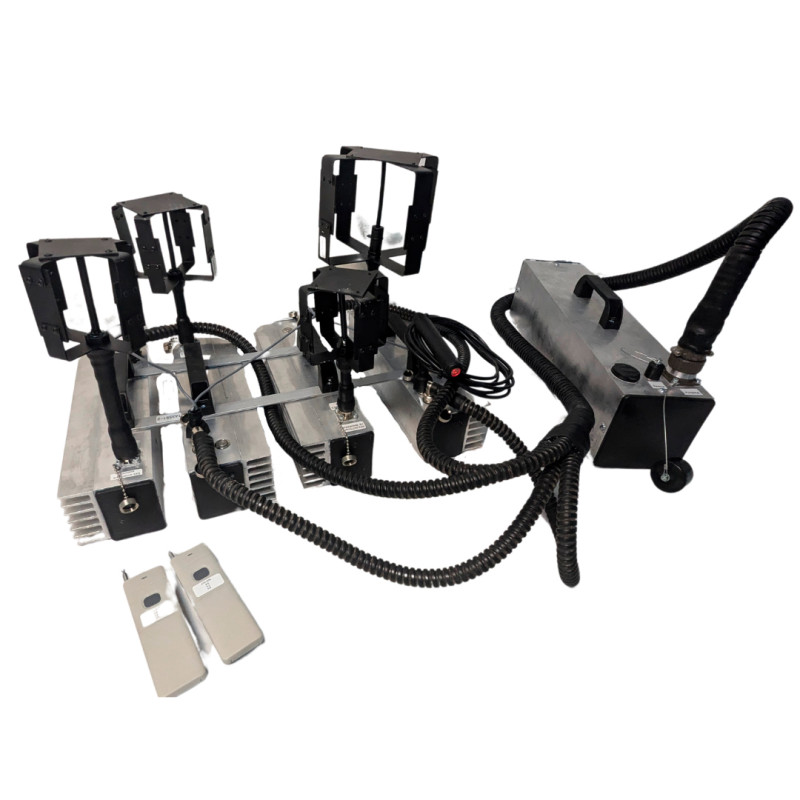

Package Contents

• Remote On/Off button for one EW system
• Connection bar
• Remote radio controls
• Mounting for EW jammer (bolt-on)Quadrifilar antennas — 4 pcs.

Dimensions and Weight

One module has dimensions of 34×10×10 cm and weighs 3 kg. The device's weight without the battery is 12 kg. For the vehicle version, a 12-24V adapter and an optional magnetic mount are provided for quick installation on the vehicle body.

The modular design of the "Pysets" system allows flexible configuration to current tasks: combining the number of channels and modules to achieve the desired radius coverage and power level for FPV channel suppression. The sealed IP65 casing ensures operation in challenging weather conditions, and the omnidirectional quadrifilar antennas provide uniform signal coverage around the installation point.

This system is suitable for use in both stationary positions (trench version) and on mobile platforms (vehicle version) thanks to its 12-24V power supply and optional magnetic mount. It comes fully equipped with remote control elements and mounting components.

Brand: ZAVADA. Product type: EW Jammers > Trench EW Jammers.

Key advantages: modularity and scalability of configuration, powerful radio interference level, protected IP65 casing, ability to install on a vehicle with a 12-24V adapter and magnetic mount, complete set with remote control and mounts, quadrifilar antennas for omnidirectional coverage.

Application: protection against FPV channels and unmanned systems in tactical positions, perimeter security, protection of mobile convoys and important objects in field conditions.
