Kulbaba F 410-500 MHz EW Jammer System with Inverter
Name: Kulbaba F 410-500 MHz EW Jammer System with Kulbaba Inverter. Manufacturer: AWEDYNE. Product Type: EW Jammers.

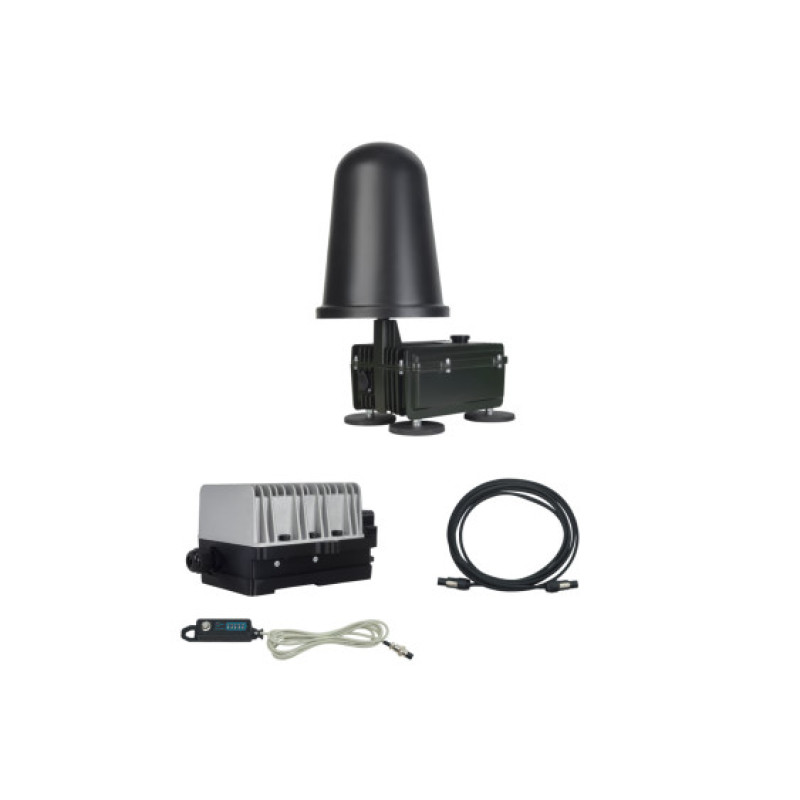

The professional Kulbaba F 410-500 MHz EW jammer system from AWEDYNE is a mobile and field solution for protecting rolling stock, fortifications, and stationary objects from kamikaze drones and other unmanned threats. The device is designed as a modular system with independent blocks: each block has its own casing, a fixed antenna, and a connector for power supply from the included portable LiFePo4 24-volt 12 Ah battery. Power is supplied exclusively from the included battery; connection to a vehicle's onboard network or third-party sources is not provided — this increases reliability and prevents incorrect system modifications.
The antennas on each block are designed for the specific frequency range of 410-500 MHz and are not removable, which prevents the module from being started without an antenna and avoids burnout of amplifier elements. The antenna design is reinforced for geometric stability under the influence of weather conditions and vibrations during vehicle movement. The magnetic mount is based on neodymium magnets in a rubber coating, allowing for quick and reliable installation and removal of the blocks on metal surfaces of the vehicle.
Important Recommendations and Warnings
- 1. Many devices outwardly resemble "Kulbaba," but the MANUFACTURER of the "Kulbaba" system is exclusively AWEDYNE. Other products are not original — be careful when purchasing.
- 2. Devices with multiple bands in one casing and multiple antennas in one casing may not work correctly: antennas must be physically separated from each other. Do not choose multi-band "combines" that reduce protection effectiveness.
- 3. Collinear whip dipoles form a "donut-shaped" field with a vulnerable zone above the device — use proper antennas for dome coverage and minimization of dead zones.
- 4. Power only from the included battery. Do not modify for vehicle power! If longer operating time is needed, purchase additional batteries or blocks.
- 5. If considering devices with active cooling, remember that fans can fail due to rain, snow, or dirt. For field conditions, AWEDYNE recommends passive cooling as more reliable.
Design Description and Features
The system is modular: each block has its own casing and antenna, which increases fault tolerance and simplifies servicing. Fixed antennas protect amplifiers from overheating and incorrect connection without an antenna. The magnetic mount with neodymium magnets in a rubber coating provides a quick and reliable mounting solution on the vehicle body. Passive cooling extends the system's lifespan in field conditions compared to active fan-based cooling.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency range, MHz | 410-500 |
| Codification | Yes |
| Supply voltage, V | 24 |
| Power supply | LiFePo4 24 volts 12 Ah (included) |
| Operating time from one battery | ≈ 2.5 hours (for two blocks) |
| Number of modules, pcs. | 1 |
| Designed cooling | Passive |
The Kulbaba F 410-500 MHz EW jammer system with inverter is a reliable professional solution from AWEDYNE for mobile protection, where ease of installation, speed of deployment, and resilience in field conditions are important. The kit includes a portable LiFePo4 24-volt 12 Ah battery, block(s) with connection, and reinforced fixed antennas. Pay attention to the originality of the manufacturer and avoid dubious multi-band copies that reduce system effectiveness.
