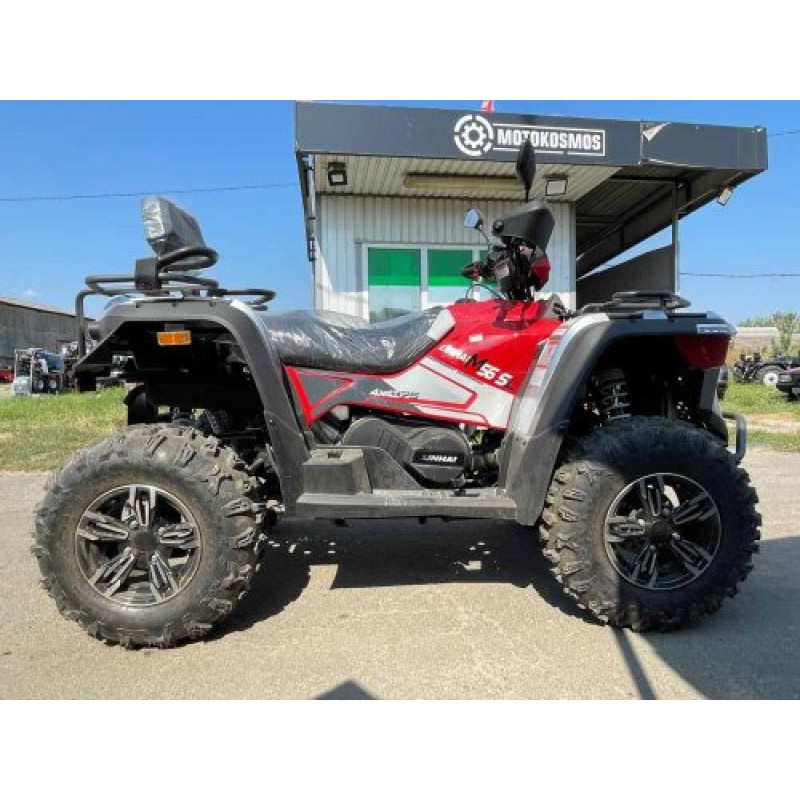

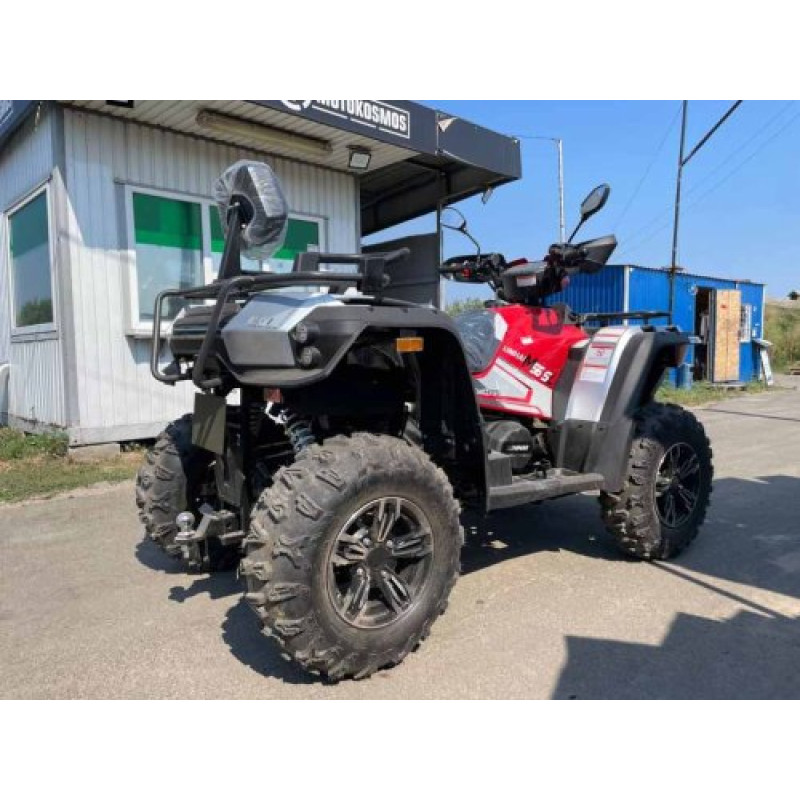

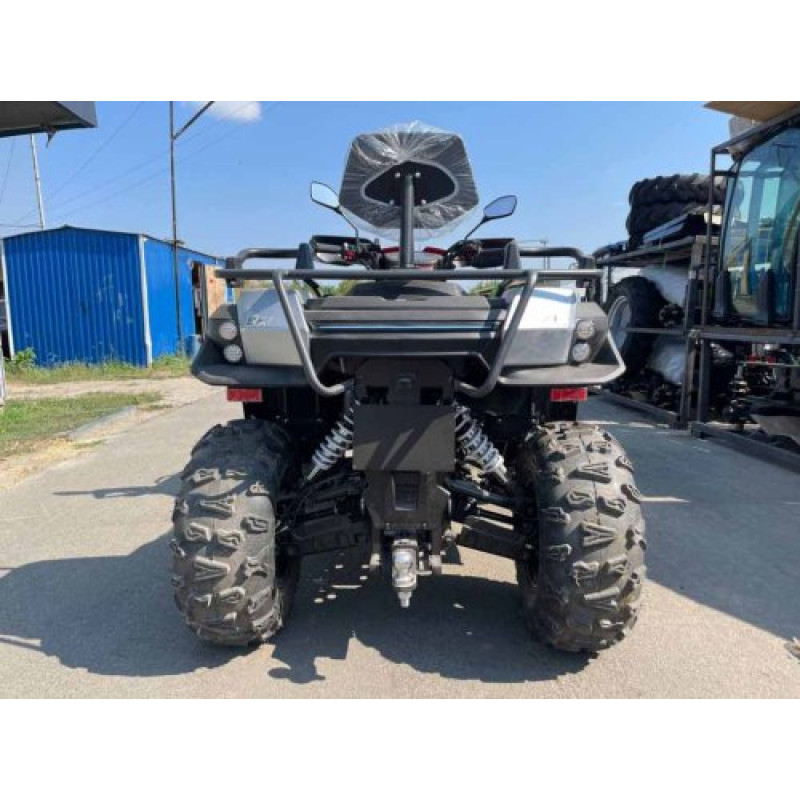

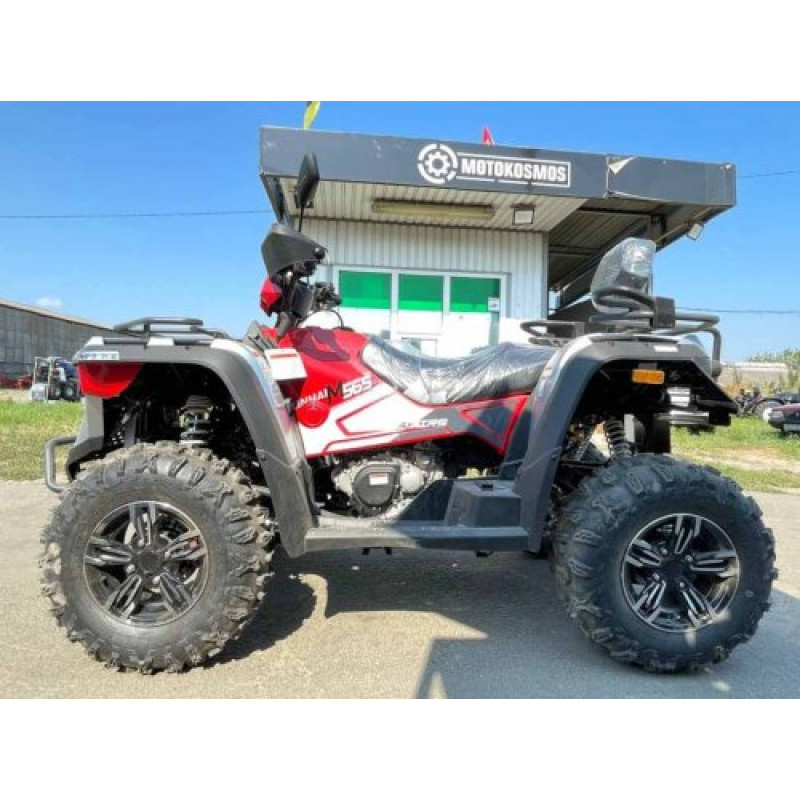

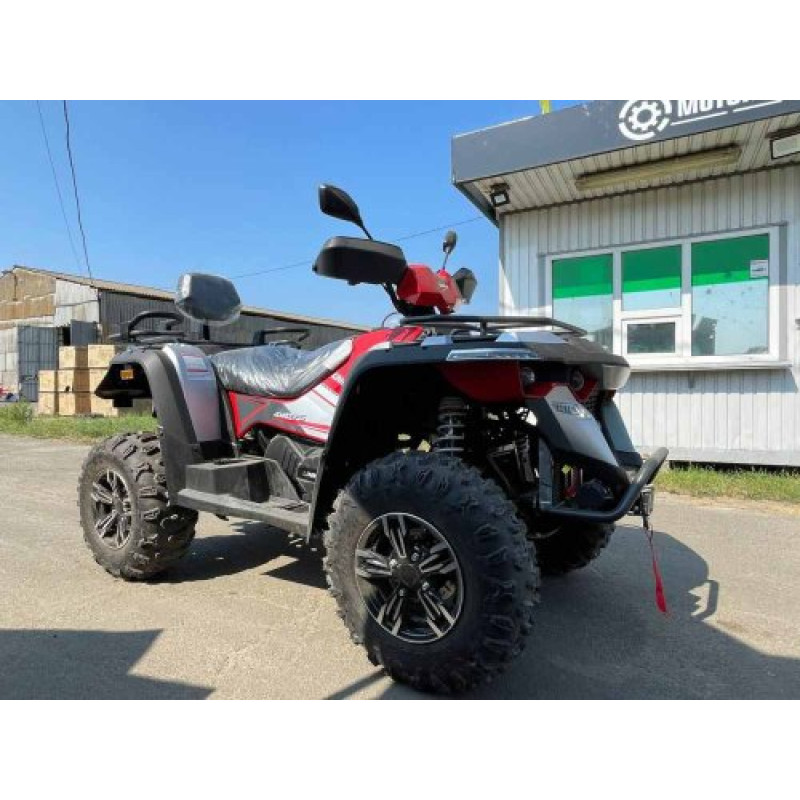

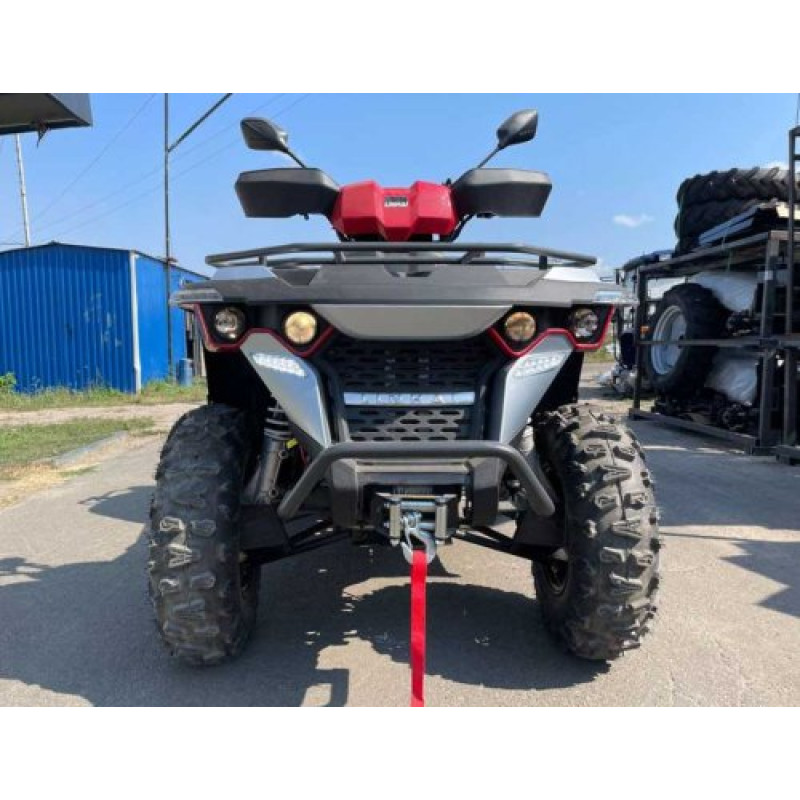

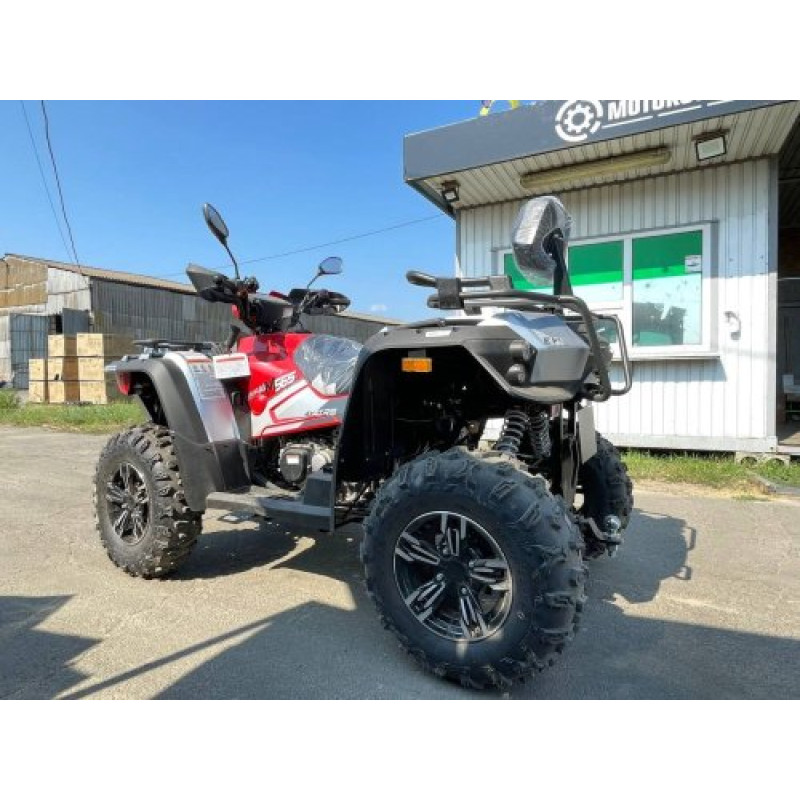

Linhai 565Li EFI EPS — Powerful All-Terrain Vehicle for Rough Terrain
The Linhai 565Li EFI EPS ATV from the LINHAI brand is a modern and reliable motor vehicle designed for work and recreation in challenging off-road conditions. The model combines an electronic fuel injection (EFI) system, electric power steering (EPS) for comfortable and precise control, and thoughtful ergonomics for long rides.
The engine is a four-stroke gasoline unit with a volume of 500 cm3, a nominal power of 39 hp, liquid cooling, and an electric starter. The nominal revolutions are 6900±150 rpm, and the torque is 47 Nm at 5750 rpm. These characteristics ensure confident starting, stable operation under load, and sufficient power for towing and overcoming difficult terrain.
Transmission, Chassis, and Off-Road Capability
The ATV is equipped with an automatic transmission with a V-belt variator (CVT), which ensures smooth movement and ease of operation. Available modes: L / H / neutral / reverse. The presence of a rear differential lock increases off-road capability in difficult sections. The wheel formula is 4x4, and the wheelbase is 1350 mm, which adds stability and handling.
Braking System
Safety is ensured by front hydraulic disc brakes on each wheel, actuated by the handlebar, and a rear hydraulic disc brake on the axle, actuated by the pedal. The combined braking system integrates front and rear brakes. The parking brake locks the rear caliper with a manual drive and a retainer on the handlebar. The brake hoses are reinforced, which increases the reliability of the braking system.
Suspension, Wheels, and Dimensions
The front suspension is independent, McPherson struts; the rear is independent, on double A-arms with a stabilizer bar. Tire sizes: front 25x8-12, rear 25x10-12. ATV dimensions: 2330x1160x1265 mm.
Fuel, Consumption, and Electronics
The fuel tank capacity is 14.2 L, with an average fuel consumption of about 6 L/100 km. Electrical equipment includes front lenses with H4 35W halogen lamps for low/high beam, front and rear marker lights, brake light, turn signals, horn, and speedometer. Power is provided by a sealed lead-acid battery 12V 18Ah.
Configuration and Additional Equipment

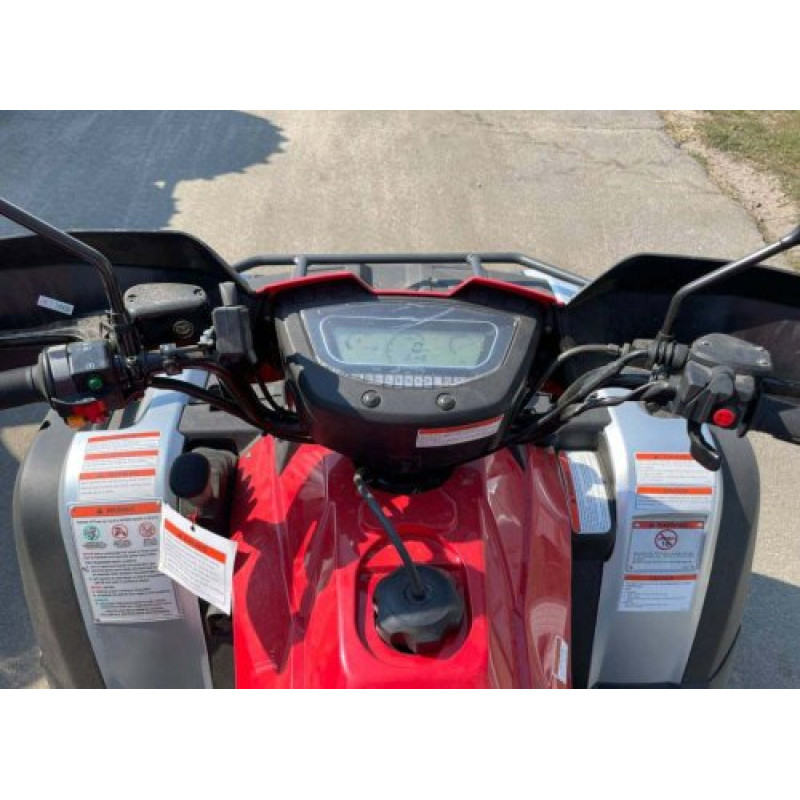

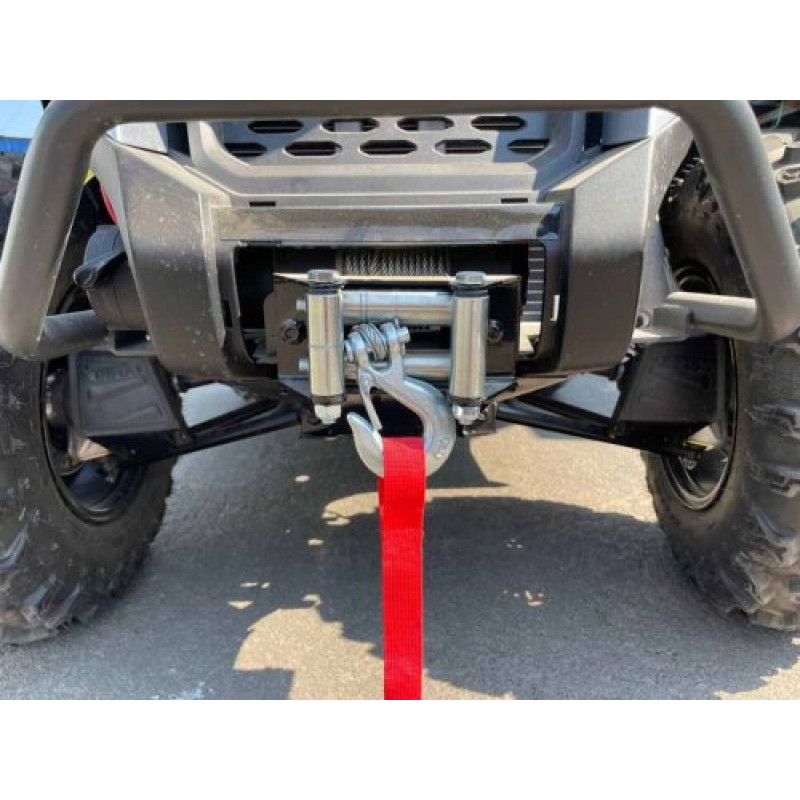

The Linhai 565Li EFI EPS configuration includes rearview mirrors, handguards, an instrument panel with an LCD screen, a winch, alloy wheels, and a tow hitch. Body elements are made of high-strength ABS plastic (front bumper, side protection, fender flares). The metal tubular frame is integrated into the chassis and allows for the installation of additional storage boxes. Thanks to the combination of EPS, a powerful engine, and a robust design, this ATV is suitable for farmers, hunters, tourists, and outdoor enthusiasts.
You can buy the Linhai 565Li EFI EPS in the "Flash Army" online store with delivery throughout Ukraine by major carriers. We offer cash and cashless payment, the possibility of purchasing on credit, and competitive prices due to direct cooperation with the manufacturer. To place an order, leave your contact details — a manager will contact you shortly.
Technical specifications:
| Engine power, hp | 39 |
| Electric power steering | yes |
| Wheel formula | 4x4 |
| Engine type | gasoline, 4-stroke, EFI injector |
| Engine displacement, cm3 | 500 |
| Engine start system | electric starter |
| Cooling system | liquid |
| Nominal engine speed, rpm | 6900±150 |
| Torque, Nm / rpm | 47 at 5750 |
| Transmission (gearbox) | automatic (V-belt variator) |
| Gearbox modes | L / H / neutral / reverse |
| Rear differential lock | yes |
| Final drive | direct |
| Front brakes | hydraulic, disc on each wheel (combined with rear brake) |
| Rear brake | hydraulic, disc on axle (combined with front brakes) |
| Parking brake | locks rear caliper with manual drive and handlebar retainer |
| Brake hoses | reinforced |
| Wheelbase, mm | 1350 |
| Tire size | front 25x8-12, rear 25x10-12 |
| Fuel tank capacity, L | 14.2 |
| Dimensions, LxWxH mm | 2330x1160x1265 |
| Front suspension | independent, McPherson struts |
| Rear suspension | independent, double A-arms with stabilizer |
| Average fuel consumption, L / 100 km | 6 |
| Configuration | rearview mirrors, handguards, instrument panel with LCD screen, winch, alloy wheels, tow hitch |
| Electrical equipment | front lenses with H4 35W halogen lamps, front/rear marker lights, brake light, turn signals, horn, speedometer |
| Battery | lead-acid, sealed, 12V 18Ah |
| Plastic body kit | high-strength ABS plastic (front bumper, side protection, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional storage boxes |
The Linhai 565Li EFI EPS model is ideal for those seeking a balance between driving comfort (EPS), engine power, and structural reliability. It is a versatile ATV for an active outdoor lifestyle and professional use.
Other purchase conditions: delivery across Ukraine, cash or cashless payment, possibility of credit. Leave your contacts — our manager will get in touch to clarify details and help you choose the optimal configuration.
