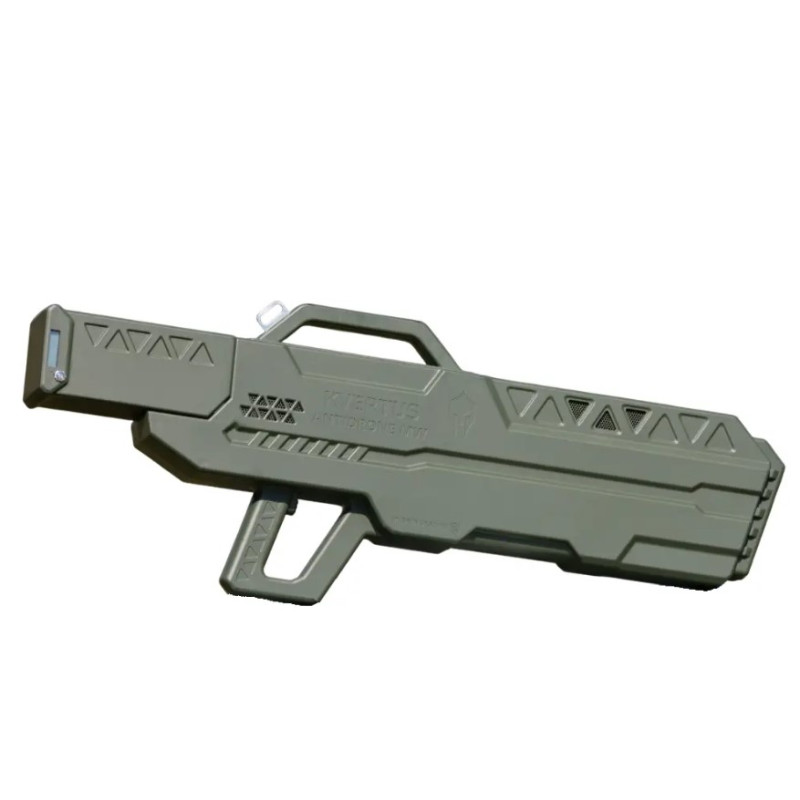

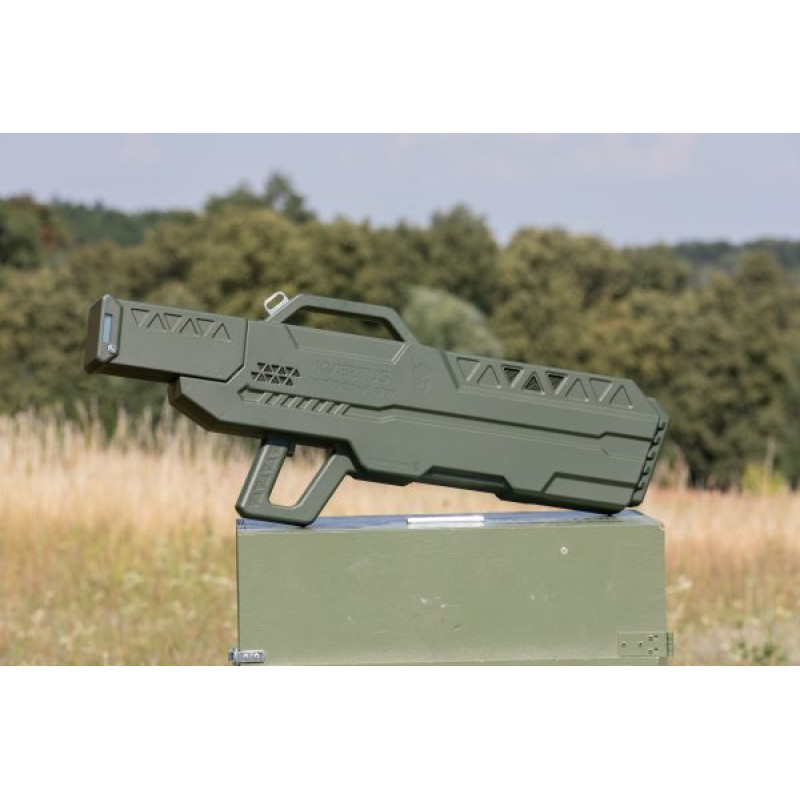

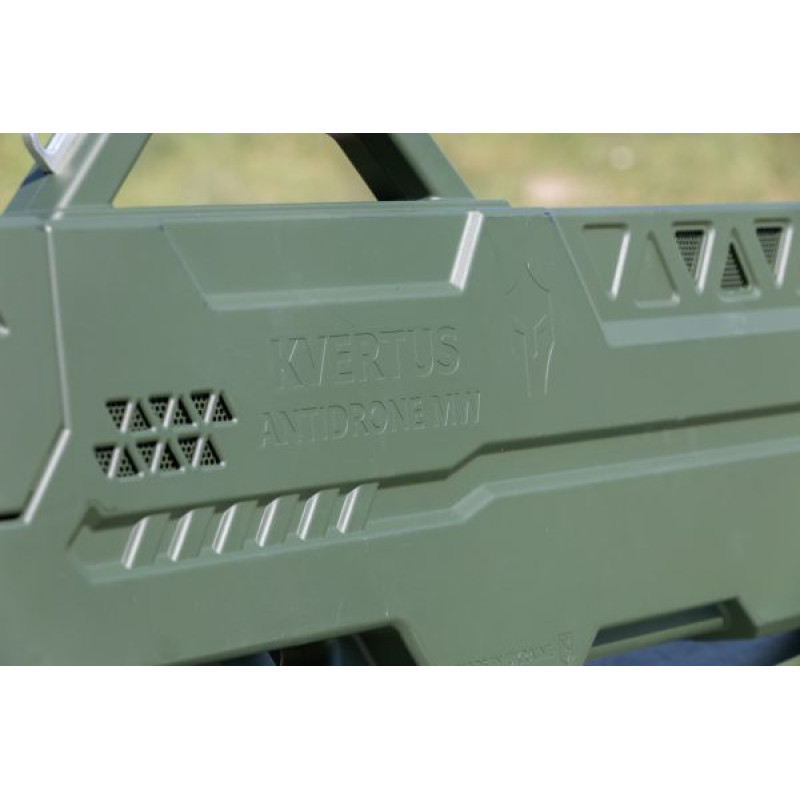

KVERTUS AD MW 300-1350 MHz Anti-Drone Rifle
KVERTUS AD MW is a new development from the manufacturer Kvertus, a specialized anti-drone rifle of the type: EW > Anti-Drone Rifles. The device is designed for effective combat against FPV drones and various classes of unmanned aerial vehicles. The rifle meets the requirements of modern combat conditions, features an ergonomic design, a durable body, and a well-thought-out construction for rapid deployment and reliable operation in the field. The kit includes an IP-1 field indicator, which allows for quick detection of radiation and monitoring of the device's operation in any conditions.
Device Jamming Frequency Ranges
| No. | Channel | Jamming Frequency Range, MHz | Power, W |
| 1 | Remote Radio Control | 300-400 | 50 |
| 2 | Remote Radio Control | 400-500 | 50 |
| 3 | Remote Radio Control | 500-600 | 50 |
| 4 | Remote Radio Control | 600-700 | 50 |
| 5 | Remote Radio Control | 700-850 | 50 |
| 6 | Remote Radio Control | 850-940 | 50 |
| 7 | Remote Radio Control | 940-1050 | 50 |
| 8 | Remote Radio Control | 1050-1150 | 50 |
| 9 | Remote Radio Control | 1150-1250 | 50 |
| 10 | Remote Radio Control | 1250-1350 | 50 |
From the listed ranges, any two can be selected. By agreement between the customer and Kvertus, frequency ranges not specified in this list can be installed, allowing the rifle to be adapted to specific operational requirements.
Technical Specifications
- Effective range: up to 1500 m (depending on application conditions).
- Output power: 100 W.
- Antenna radiation pattern: horizontal — up to 80°; elevation — up to 60°.
- Antenna polarization: linear vertical.
- Antenna VSWR: up to 2.
- Power supply: replaceable 24 V, 15 Ah battery.
- Battery life: 80 min, with a 5 min break every 20 min of operation.
- Cooling: active.
- Protection rating: IP65.
- Weight: 8 kg.
- Includes 2 x 24 V, 15 Ah batteries.
This model combines high output power and a well-designed power system, ensuring long-term operation under load and reliable heat dissipation through active cooling. The design is intended for use in harsh outdoor conditions (IP65 protection rating), and its 8 kg weight allows for quick movement and deployment of the rifle to position. The presence of the IP-1 field indicator facilitates monitoring of jamming operations and enhances operational safety.
The KVERTUS AD MW 300-1350 MHz rifle is an optimal choice for units and services requiring reliable means of suppressing UAV remote control channels with flexible frequency range customization capabilities.
