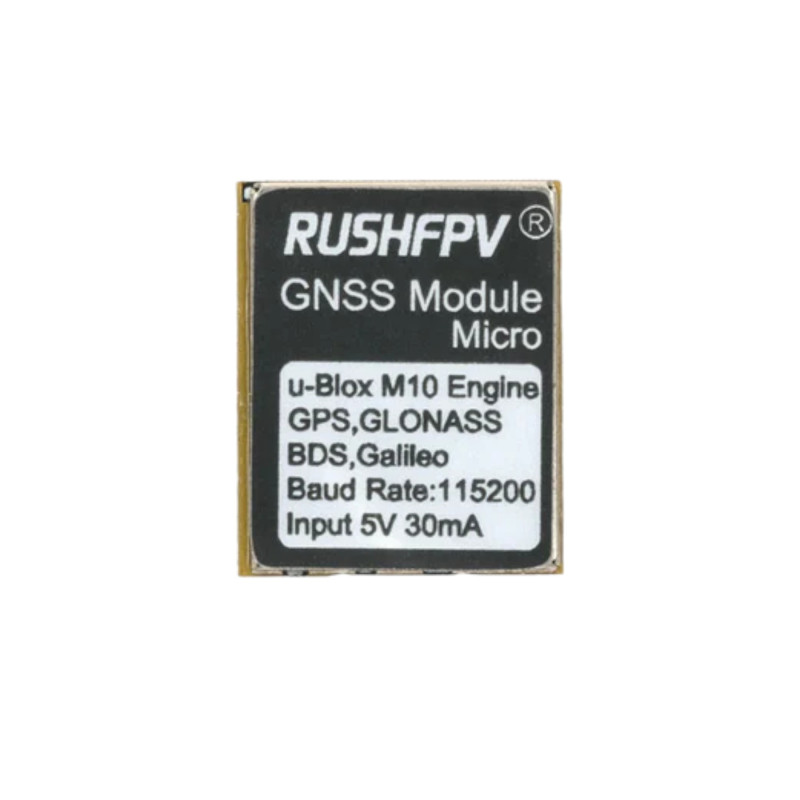

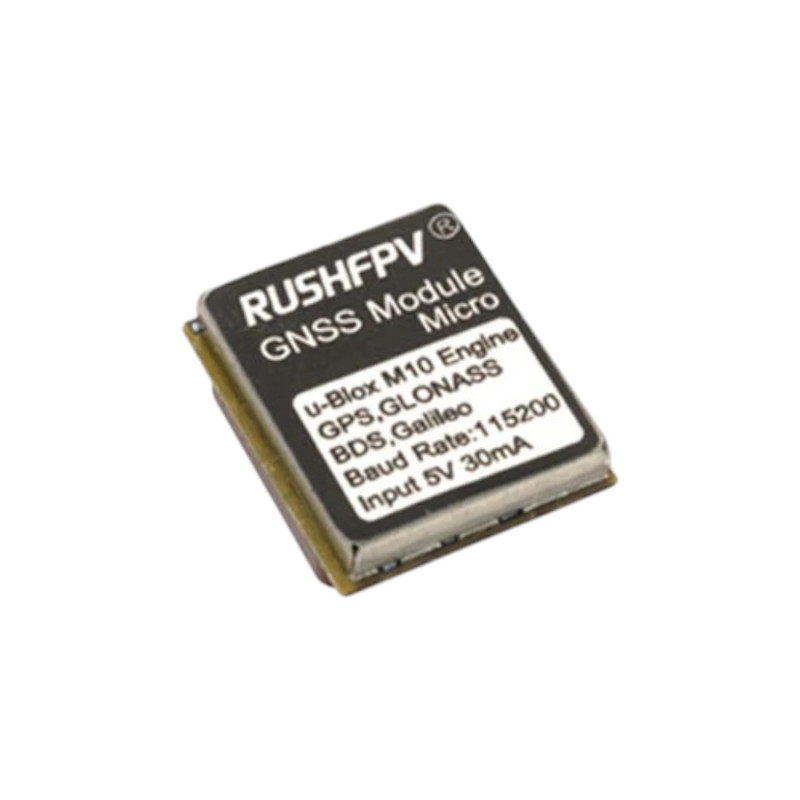

RushFPV GNSS MICRO GPS Module
A powerful and ultralight navigation module from Rush FPV — an ideal solution for FPV drones where every gram and every millimeter matters. The RUSHFPV GNSS Micro is built on the u-Blox M10 chip and supports simultaneous operation of multiple satellite systems: GPS, GLONASS, BDS, Galileo, as well as SBAS and QZSS, ensuring stable positioning in complex flight conditions.

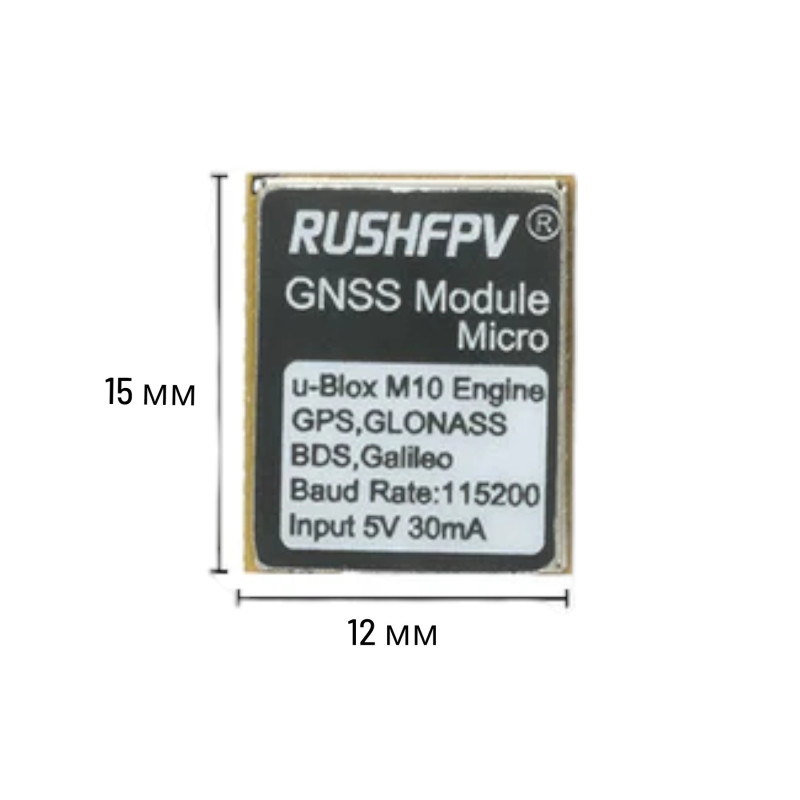

The module weighs only 2.4 g and has compact dimensions of 12×15×4.8 mm, making it an ideal choice for compact builds and lightweight quadcopters. Thanks to the built-in backup battery and internal memory, the device provides a quick "hot start" after a restart, instantly resuming positioning without long waiting times.
Installation Recommendations
The ceramic antenna with anti-fouling coating is protected by a sealed enclosure, but for the best reception quality, the antenna should be placed in an open area, free of obstructions above, at the maximum distance from metal or carbon elements, as well as from the video transmitter (VTX) and the control receiver antenna.
Key Advantages
- Ultralight and compact design — 2.4 g, 12×15×4.8 mm.
- Support for multiple global navigation systems for a stable signal.
- Built-in backup battery and memory for quick positioning recovery.
- Sealed enclosure and antenna protection against contamination.
Specifications:
| Parameter | Value |
|---|---|
| Chip | u-Blox M10 |
| Supported Systems | GPS, GLONASS, BDS, Galileo, SBAS, QZSS |
| Number of Channels | 72 |
| Update Rate | 1-10 Hz |
| Output Protocol | UBLOX |
| Baud Rate | 115200 bps |
| Input Voltage | 5V (30 mA) |
| Positioning Accuracy | 1.5 m (2D ACC) |
| Velocity Accuracy | 0.05 m/s |
| Reception Sensitivity | -162 dBm |
| Max. Operating Altitude | 50,000 m |
| Max. Speed | 500 m/s |
| Dimensions | 12×15×4.8 mm |
| Weight | 2.4 g |

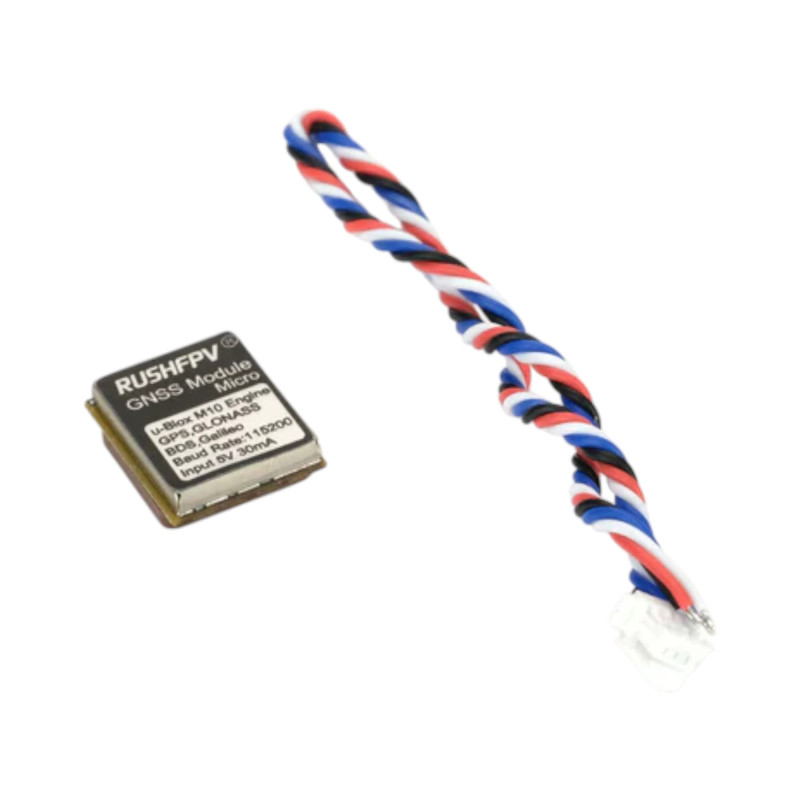

| Interface | TX, RX, 5V, GND |
| Features | backup battery, quick "hot start", contamination protection, sealed board |
The Rush FPV GNSS MICRO is an excellent choice for those building a fast and maneuverable FPV drone who need reliable and accurate satellite positioning without significant weight increase. The module combines a modern u-Blox M10 chip, a wide range of supported systems, high reception sensitivity, and compact dimensions, allowing it to be integrated even into the smallest designs. Choose a professional approach to navigation with Rush FPV.
