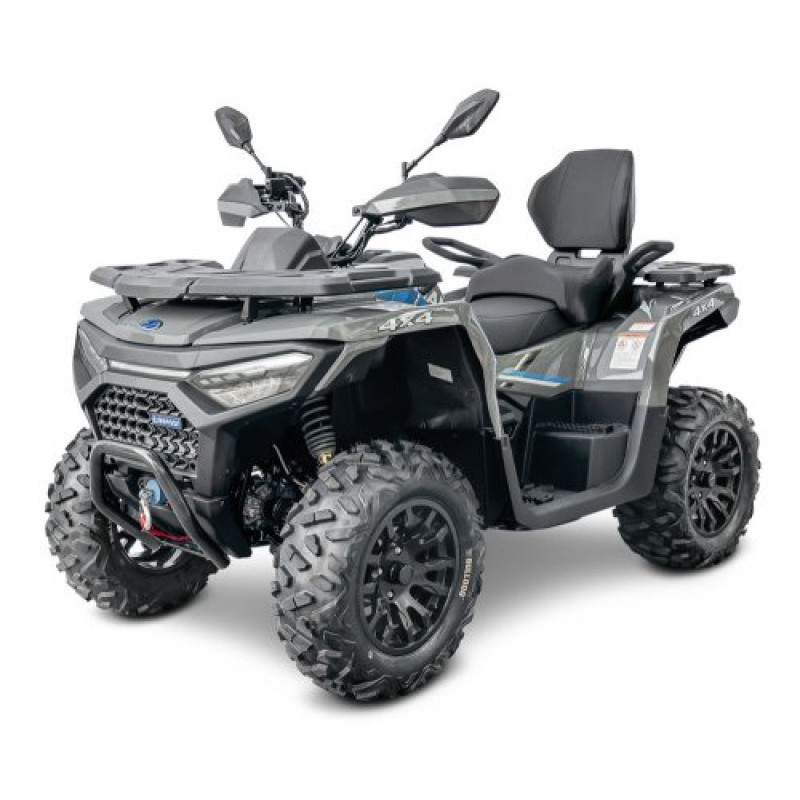

Linhai M650 Promax EFI EPS PREMIUM ATV
Model: Linhai M650 Promax EFI EPS PREMIUM. Manufacturer: LINHAI. Product category: Motor Vehicles > ATVs. This versatile 4x4 ATV combines a modern fuel-injected engine, a reliable chassis, and a full suite of electronics for comfortable and safe off-road and on-road riding. It is designed for both active recreation and field work, offering high cross-country capability, maneuverability, and ease of operation.
Specifications:
| Engine power, hp | 39 |
| Wheel formula | 4x4 |
| Engine type | gasoline, 4-stroke, EFI injector |
| Engine displacement, cm3 | 585 |
| Engine start system | electric starter |
| Cooling system | liquid |
| Rated engine speed, rpm | 6900±150 |
| Torque, Nm / rpm | 49.5 at 5750 |
| Gearbox (transmission) | automatic (V-belt variator) |
| Gearbox modes | L/H/N/R |
| Rear differential lock | yes |
| Final drive | direct |
| Front brakes | hydraulic, disc on each wheel with lever actuation (combined with rear brake) |
| Rear brake | hydraulic, disc on wheel axle with pedal actuation (combined with front brakes) |
| Parking brake | locks rear caliper with manual actuation and handlebar lock |
| Brake hoses | reinforced |
| Wheelbase, mm | 1470 |
| Tire size | front 25x9-14, rear 25x11-14 |
| Fuel tank capacity, L | 20 |
| Dimensions, LxWxH mm | 2395x1305x1330 |
| Front suspension | independent, McPherson struts |
| Rear suspension | independent on double A-arms with anti-roll bar |
| Equipment | rearview mirrors, hand guards, instrument panel with LCD screen, winch, alloy wheels, tow hitch |
| Electrics | Front lenses with H4 halogen lamps 35W (low/high beam), front and rear marker lights, brake light, turn signals, horn, speedometer |
| Battery | sealed lead-acid, 12V 18Ah |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional cases |
The model is equipped with a 585 cm3 engine with 39 hp, providing confident traction and a maximum torque of 49.5 Nm at 5750 rpm. The EFI injection system and liquid cooling increase reliability and fuel efficiency, while the electric starter and sealed 12V 18Ah battery guarantee quick and reliable starting. The automatic transmission (V-belt variator) with L/H/N/R modes makes control simple for beginners and experienced riders, and the rear differential lock increases cross-country capability in difficult conditions.
Driving characteristics include independent front suspension with McPherson struts and independent rear suspension on double A-arms with an anti-roll bar, ensuring comfort, stability, and control over bumps. A wheelbase of 1470 mm and tire sizes (front 25x9-14, rear 25x11-14) guarantee good stability and maneuverability, while dimensions of 2395x1305x1330 mm make the ATV compact while maintaining functionality.
The braking system is combined: disc brakes on the front axles with manual actuation in conjunction with a disc brake on the axle with pedal actuation, reinforced brake hoses, and a manual parking brake with a lock on the handlebars increase safety when operating in mountains, forests, or fields. The final drive is direct, and structural solutions enhance transmission durability.
The equipment meets modern requirements: rearview mirrors, hand guards, an instrument panel with an LCD screen, a factory winch for self-recovery, alloy wheels, and a tow hitch for towing or installing cases. The electrical system includes H4 35W halogen lenses for low and high beams, marker lights, a brake light, turn signals, and a horn; the speedometer displays key driving parameters and informs the driver.
- Engine type: gasoline, 4-stroke, EFI injector
- Displacement: 585 cm3; power: 39 hp
- Wheel formula: 4x4; rear differential lock: yes
- Transmission: automatic variator; modes: L/H/N/R
The 20 L fuel tank allows for long trips without frequent refueling, and the durable ABS plastic body kit and tubular metal body kit integrated into the frame provide protection for components and the possibility of additional equipment. The Linhai M650 Promax EFI EPS PREMIUM is a balanced choice for those who value power, comfort, and modern equipment from the LINHAI brand.
