EW Jammer Bulba 2.0 — Dual-Channel System
Manufacturer: Bulba. Category: EW Jammers > Trench EW Jammers.

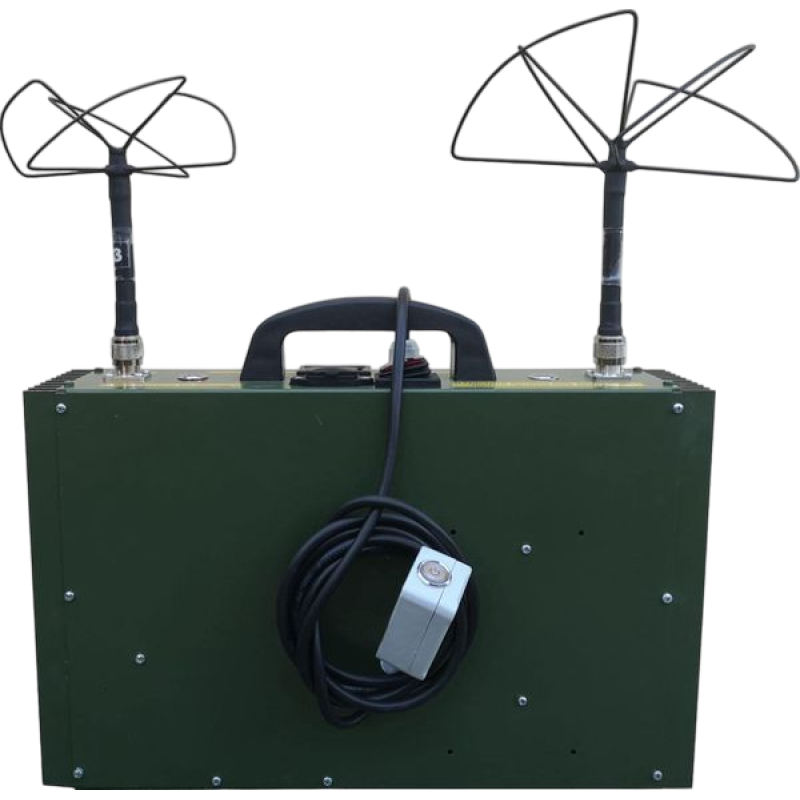

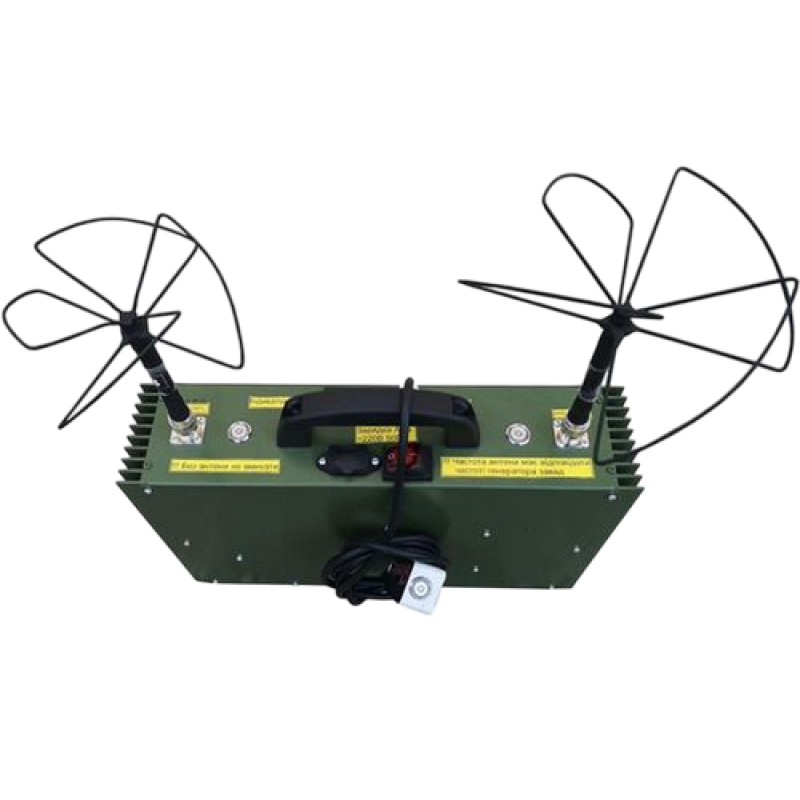

Brief description: The Bulba 2.0 EW jammer is a modular dual-channel anti-drone system that allows for various protection configurations by connecting individual modules. The device is packed in a special backpack and worn over the shoulder, ensuring high mobility and rapid deployment in the field. The system allows selecting up to two suppression channels, enabling precise coverage of necessary frequency ranges.
Features and purpose: The system is designed to suppress drone radio channels in selected ranges. The modular design allows for quick changes to the antenna and channel set according to specific threats and tasks. The casing is made of painted aluminum-metal material with external forced heat dissipation, which increases durability and reliability during field operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Power supply | built-in charging unit and LiFePo4 battery with 380 Wh, designed for more than 120 minutes of autonomous operation at full load |
| Antenna types | «Clover» with individual tuning |
| Weight | 6 kg |
| Minimum autonomous operating time | up to 60 min |
| Radiation power | more than 30 W per band (can be more, but testing has shown it only affects health) |
| Operating range | 150-200 m |
| Suppression channels (two to choose from) | 200-300 MHz; 300-400 MHz; 400-500 MHz; 500-600 MHz; 600-720 MHz; 720-850 MHz; 850-950 MHz; 950-1150 MHz; 1100-1280 MHz; 1560-1620 MHz; 2370-2470 MHz |
Additional information: The modular architecture allows combining antennas and channels according to specific threats. Although the battery is rated for more than 120 minutes at full load, in some configurations, the actual minimum autonomous operating time can be up to 60 minutes. Power exceeding 30 W per band ensures effective signal suppression, but increased power should be considered in terms of safety and impact on personnel health.
The Bulba 2.0 EW jammer is ideal for field operations, perimeter protection, creating temporary drone-free zones, and for anti-drone defense units. Thanks to its convenient backpack packaging, over-the-shoulder carry, and simple antenna setup, the system can be quickly deployed to protect important objects or during mobile tasks.
The design includes up to two selectable suppression channels, wide frequency band coverage (list of channels provided in technical specifications), «Clover» type antennas with individual tuning, an effective range of 150-200 meters, a weight of 6 kg, and a built-in 380 Wh LiFePo4 battery. The casing is aluminum-metal with a painted surface and external forced heat dissipation for reliable heat removal during prolonged use.
This system allows for quick adaptation to changes in the tactical situation: replacing modules and antennas does not require specialized equipment, making the system practical for combat and technical applications. However, it is necessary to consider the limitations regarding the impact of radio frequency power on health and adhere to relevant safety rules.
