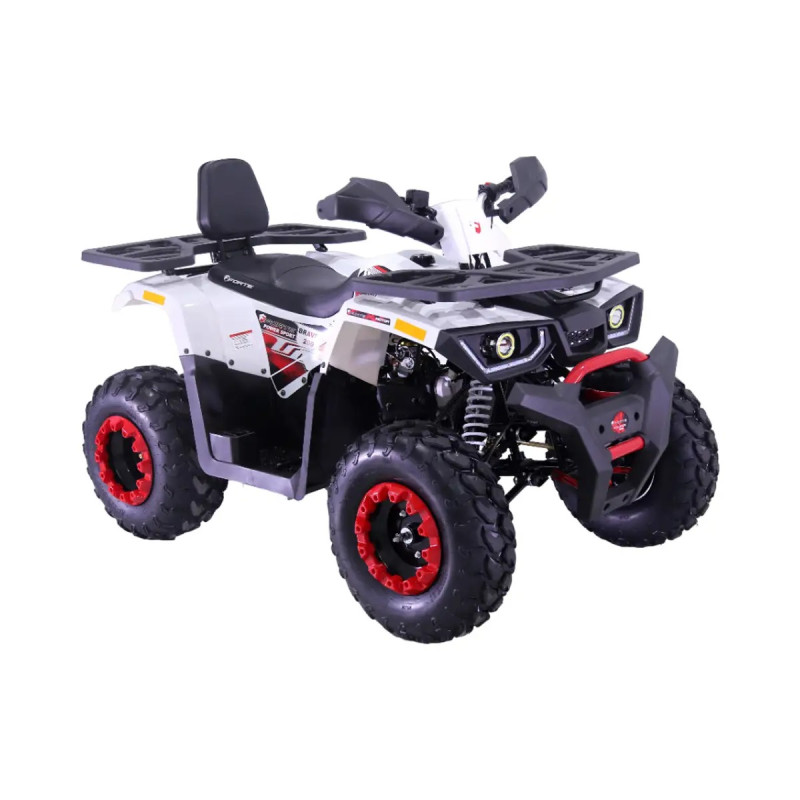

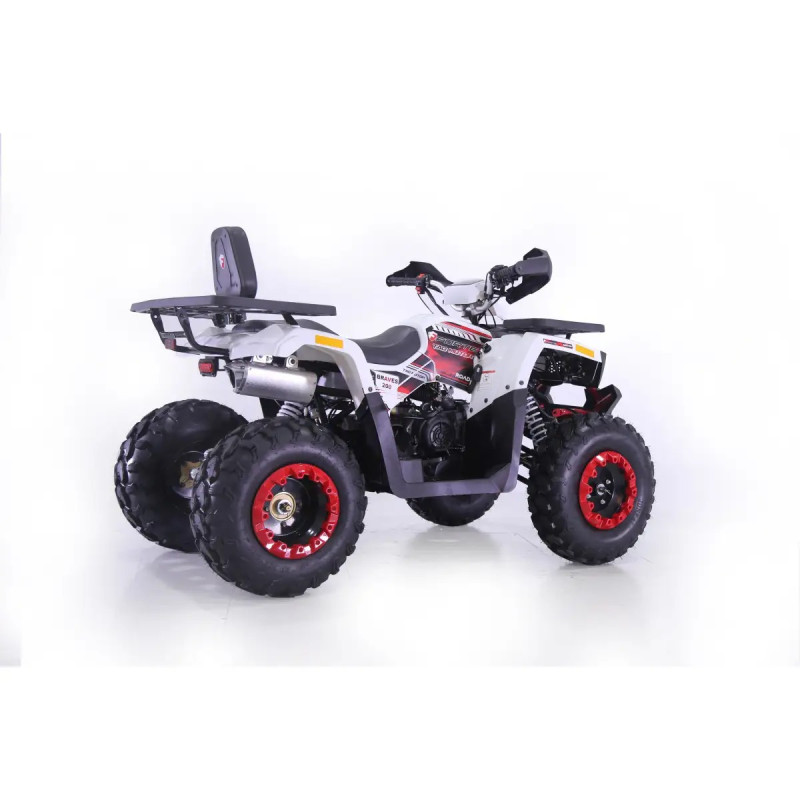

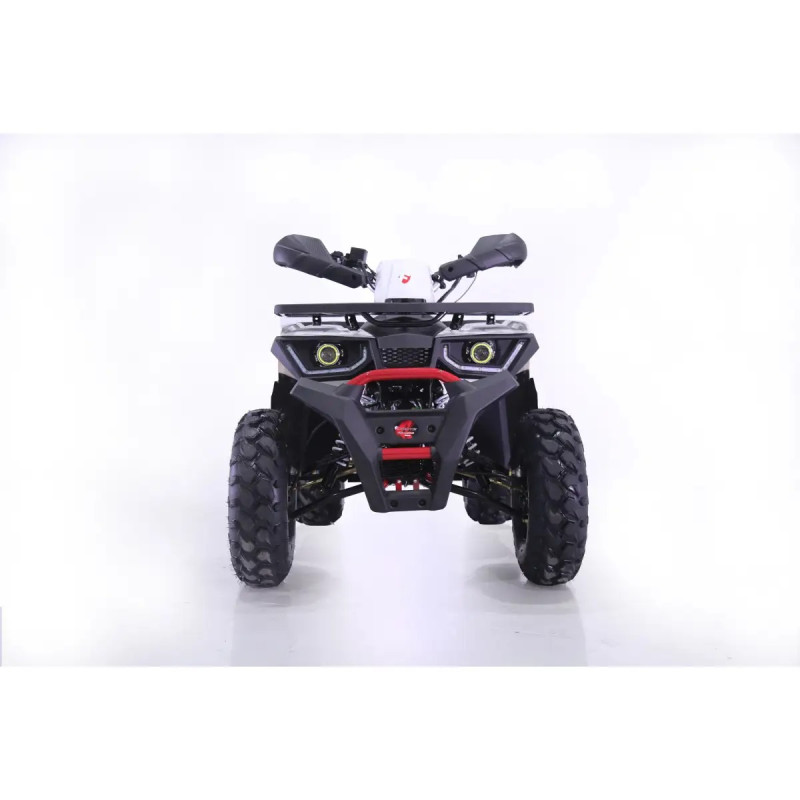

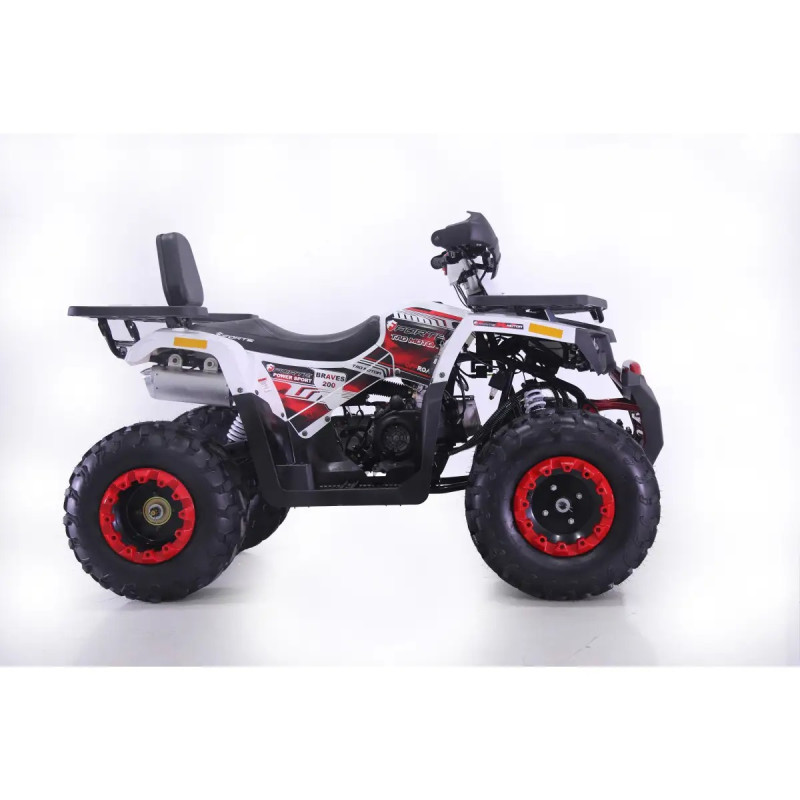

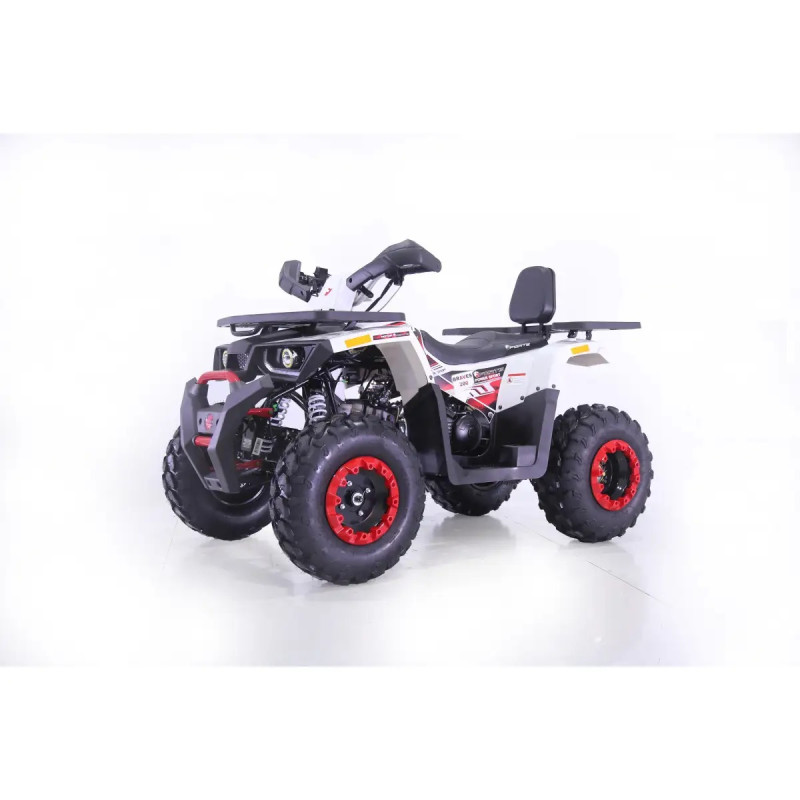

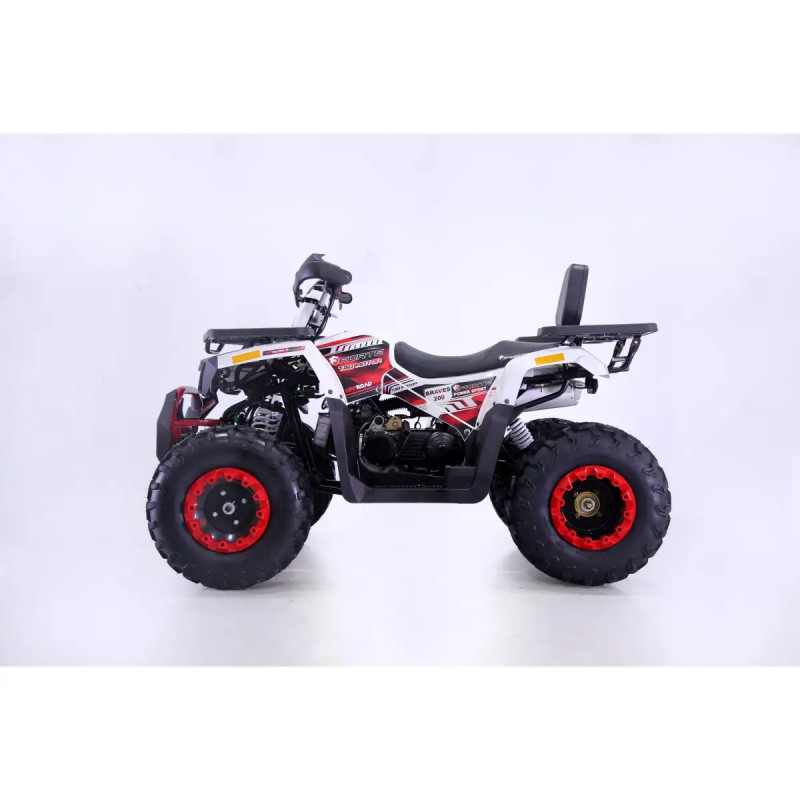

Forte BRAVES 200 LUX Quad Bike (White-Red)
Brief overview: The Forte BRAVES 200 LUX quad bike in white and red is a compact off-road vehicle for adults, combining a motorcycle-like riding position with enhanced stability thanks to its four wheels. The model's dimensions are 1860 x 1100 x 1130 mm; the quad bike's weight is 175 kg, and its maximum load capacity is 190 kg. This model is not intended for use on public roads and does not require state registration.
Key Advantages and Design Features
- Designed for adult users, two-seater (2 seats) New enlarged front impact bumper made of durable alloy with plastic coating
- Color digital speedometer for convenient speed monitoring
- Ergonomic backrest for the rear seat for passenger comfort
- Heated handlebars for comfortable riding in cold weather
- New steering mechanism for easier cornering with handguards on the handlebars
- Increased diameter aluminum alloy wheels and aggressive tread for off-road use
- Enlarged footrest with foot support for the rear passenger
- Rear LED taillight with reflector
- Additional kick-start and electric start for reliable ignition
- Additional front lighting for improved visibility
- Front and rear luggage racks with plastic coating for convenient cargo transport
- Tow hitch for trailer attachment capability
Technical Specifications
| Parameter | Value |
|---|---|
| Max speed | 65 km/h |
| Battery | 12V / 9Ah |
| Weight | 175 kg |
| Manufacturer | Forte |
| Fuel consumption | 3.5L / 100 km |
| Dimensions | 1860 x 1100 x 1130 mm |
| Rear brakes | Disc |
| Rear tires | 23x10-10 |
| Rear suspension | Dependent, spring shock absorber |
| Number of seats | 2 |
| Number of cylinders | 1 |
| Ground clearance | 130 mm |
| Color | White-Red |
| Wheel formula | 4x2 |
| Country of origin | China |
| Max torque | 10.2 N · m |
| Max load capacity | 190 kg |
| Engine displacement | 170 cm³ |
| Engine RPM | 6500 rpm |
| Fuel tank capacity | 5 L |
| Features | Heated handlebars; Ergonomic rear passenger seat backrest; Color digital speedometer; Handguards |
| Cooling | Air-oil |
| Front brakes | Double drum, mechanical |
| Front tires | 23x7-10 |
| Front suspension | Independent A-arm with shock absorber |
| Power | 9 hp |
| Frame | Steel, tubular |
| Ignition system | Capacitor discharge |
| Engine type | Four-stroke |
| Fuel type | Gasoline |
| Drive type | Chain |
| Start type | Electric start/kickstart |
| Transmission | Automatic FNR variator |
Additionally: The reinforced steel tubular frame ensures rigidity and structural reliability; an efficient air-oil cooling system maintains optimal engine temperature; the capacitor discharge ignition system provides stable starting and operation; the chain drive and automatic FNR variator make control simple and predictable. Manufacturer: Forte. Country of origin: China.
