Product Code: FA111-KB 0051 IG-111
In Stock
55 грн.
This product has a minimum quantity of 5
Buy this product in 1 click:
Main specifications
Application:
Universal
Braid density:
82
Cable Design:
Flexible
Cable type:
Coaxial
Capacity:
82
All specifications
We will deliver this product:
Payment
Specifications
Application
Universal
Braid density
82
Cable Design
Flexible
Cable type
Coaxial
Capacity
82
Central conductor material
Copper
Core material
Copper
Execution of 1 screen
Tape
Execution of screen 2
Wire
Inner conductor resistance, Ohm/km
22.10
Insulation material
Polyvinyl chloride
Length in package
100
Loop resistance, Ohm/km
37.40
Material of 2 screens
Copper
Maximum bend radius
50
Maximum Current (Ieff), A
6
Maximum operating frequency
5.8
Maximum operating temperature
70
Minimum bend radius
25
Minimum installation temperature, deg
-5
Minimum operating temperature
-20
Model
WL195
Mount type
External

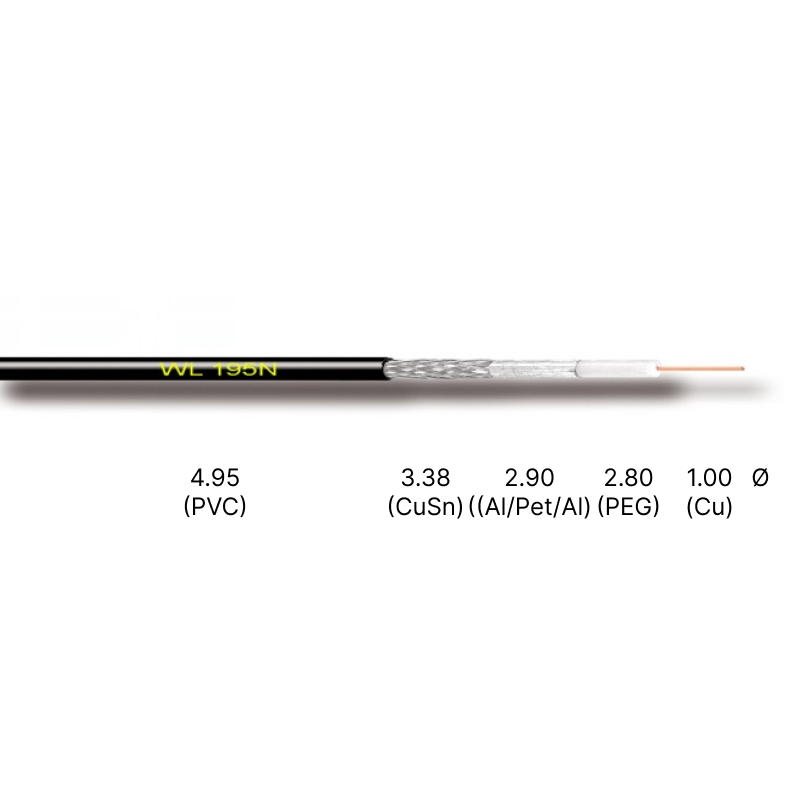

Nominal diameter of the central conductor
1
Nominal diameter with sheath
4.95
Nominal diameter with shield
3.38
Nominal shell wall thickness
0.785
Number of Cores
1
Outer conductor resistance, Ohm/km
15.30
Outer Shell Type
Moisture-resistant
Packaging
Reel
Protection Material
Metal
Protection Type
Braid
Purpose
For Communication Systems
Screen availability
Yes
Screen material 1
Aluminum
Service life
15
Shell color
Black
Shell material
PVC
Test voltage
3
Thermal Insulation
Polyvinyl chloride
Wave impedance
50
Weight
16.7
