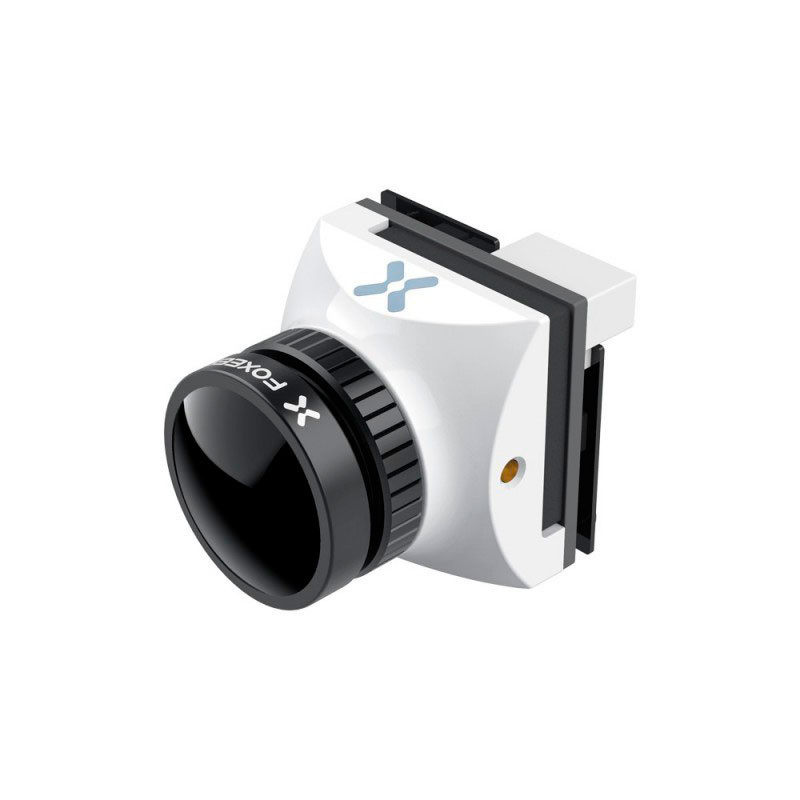

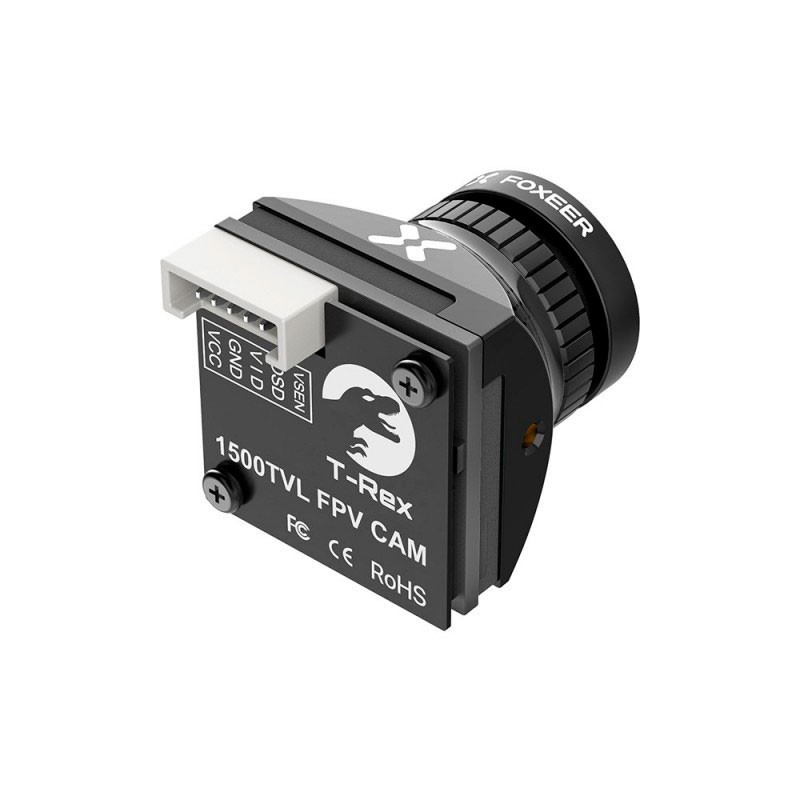

Foxeer T-Rex 1500 TVL Camera for FPV Flights
The Foxeer T-Rex 1500 TVL camera is a compact and lightweight module from the manufacturer Foxeer, designed for use on drones and quadcopters. Product category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Cameras. This model combines high image quality and minimal weight, making it ideal for high-speed FPV racing, micro-drones, and space-constrained frames.
Below are the technical specifications highlighting the key features of the Foxeer T-Rex:
| Technical Specifications | Value |
|---|---|
| Sensor | 2-megapixel CMOS |
| Horizontal Resolution | 1500TVL |
| Field of View | 4:3 FOV-H: 120° / FOV-D: 150°; 16:9 FOV-H: 155° / FOV-D: 175° |
| Aspect Ratio | 4:3/16:9 (switchable) |
| TV System | PAL/NTSC (switchable) |
| Lens Thread | M12 |
| Shutter Speed | Auto |
| Image Flip | Up, Down, Left, and Right |
| Video Output | CVBS Analog Signal |
| Latency | 6 ms |
| Minimum Illumination | 0.001lux |
| White Balance | Auto |
| DNR | 3DNR |
| WDR | 110 dB |
| Day/Night Modes | EXT, Auto, Color, B/W |
| OSD (On-Screen Display) | Voltage/Name/Time |
| Input Voltage | 4.5 ~ 16V |
| Power Consumption | 115mA ± 15% at 12V DC; 270mA ± 15% at 5V DC |
| Operating Temperature | -10 ° ~ 50 ° C |
| Operating Humidity | 20 ~ 80% |
| Storage Temperature | -20 ° ~ 70 ° C |
| Dimensions | 19 x 19 mm |
| Weight | 8.6 g (without cable) |
Description and Advantages
The Foxeer T-Rex 1500 TVL is equipped with a 2-megapixel CMOS sensor, providing high image detail and a horizontal resolution of 1500TVL. For various tasks, you can choose between 4:3 or 16:9 aspect ratios, and a wide field of view allows you to see from 120° horizontally to ultra-wide 175° diagonally, which is especially important during fast maneuvers in FPV competitions.
Switchable PAL/NTSC TV standards and the ability to change day/night modes (EXT, Auto, Color, B/W) make the camera compatible with various equipment and lighting conditions. Low minimum illumination of 0.001lux combined with 3DNR and 110 dB WDR ensures a clear and high-quality image even in complex, high-contrast scenes. Automatic shutter and automatic white balance simplify setup during flight preparation.
Due to its very low signal latency — just 6 ms — the Foxeer T-Rex is an excellent choice for racing and fast maneuvers where prompt video feedback is critically important. The analog CVBS video output ensures compatibility with most transmitters and monitors.
The camera features image flip in all directions, a built-in OSD displaying voltage, name, and time, and operates within a wide input voltage range of 4.5–16V, allowing it to be used with various types of flight controllers and power sources. Compact dimensions of 19×19 mm and a weight of only 8.6 g (without cable) enable installation of the module even in very small frames, without affecting the aerodynamics and maneuverability of the aircraft.
Package Contents:
- FPV Foxeer T-Rex Micro 1500TVL Camera
- OSD Board
- 2-pin OSD cable
- Servo cable
- Mounting hardware
The Foxeer T-Rex 1500TVL combines minimal weight, high resolution, and professional image adjustment capabilities, making it one of the best options for both amateurs and professionals in the FPV field. It is designed for those who need fast reaction speed, image quality, and reliability in a compact form factor.
