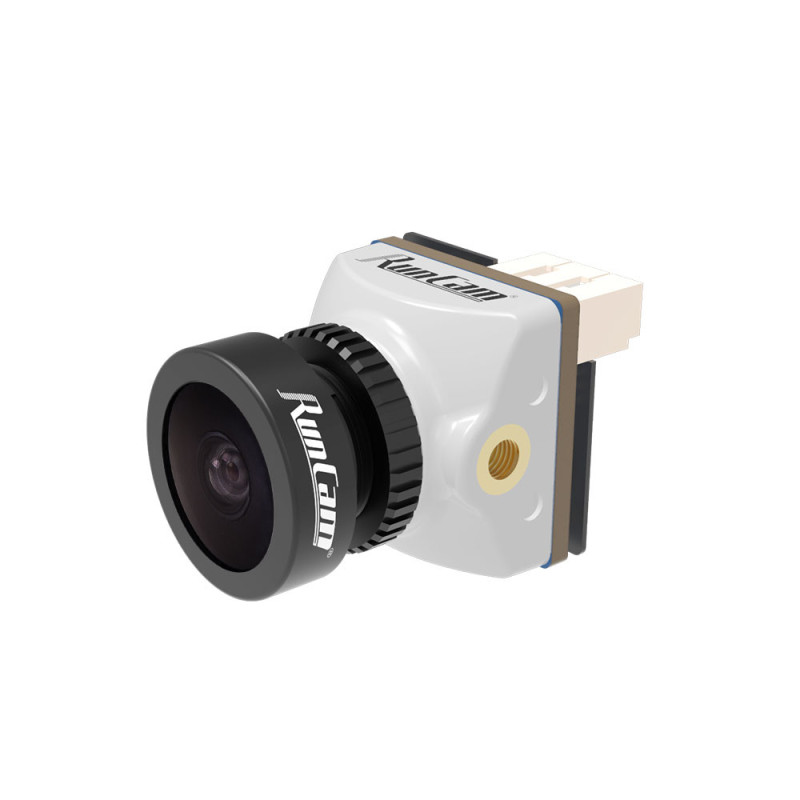

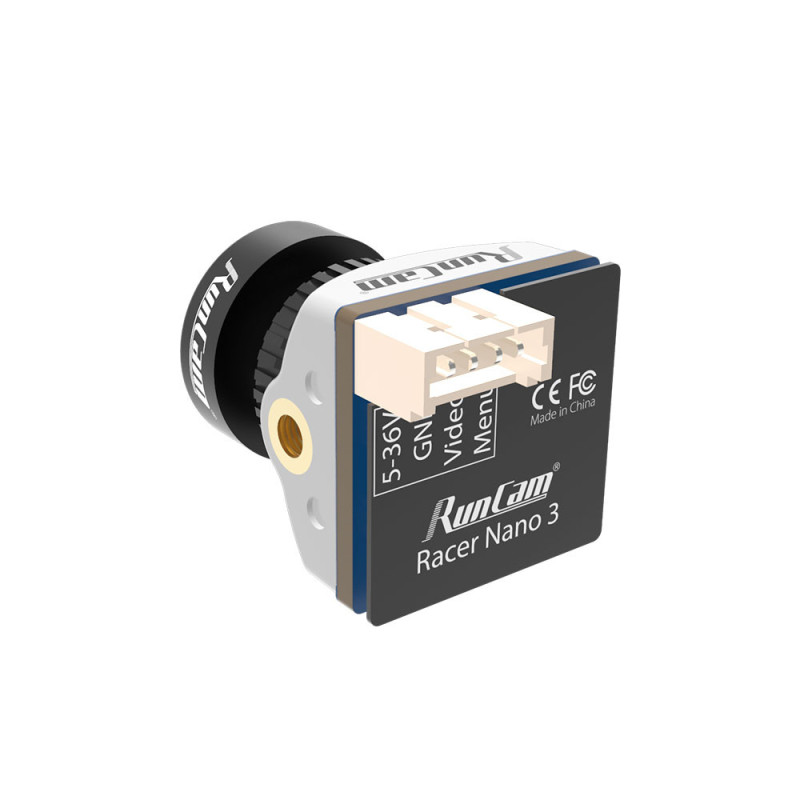

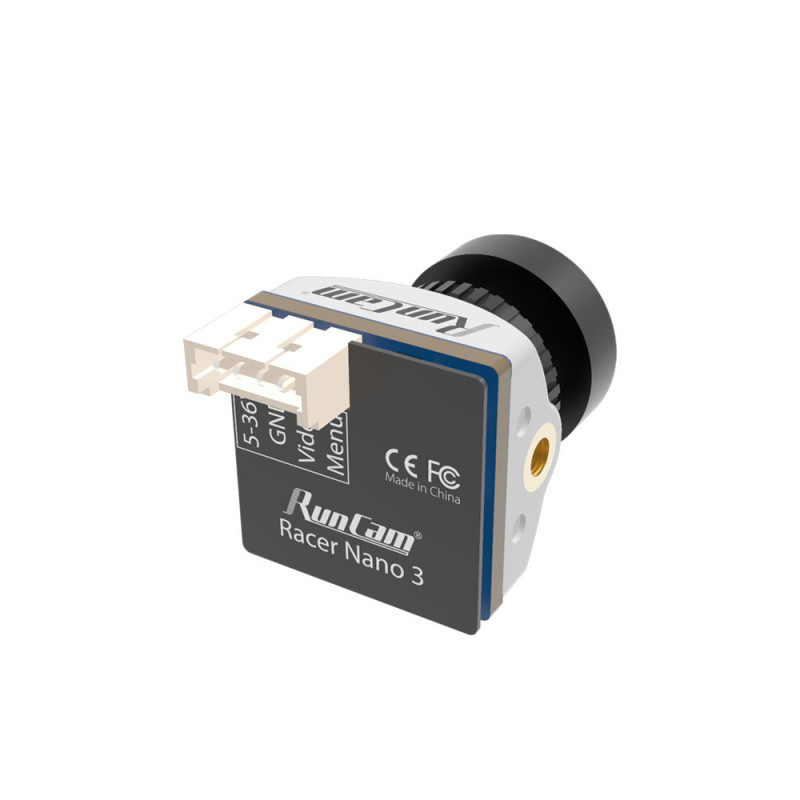

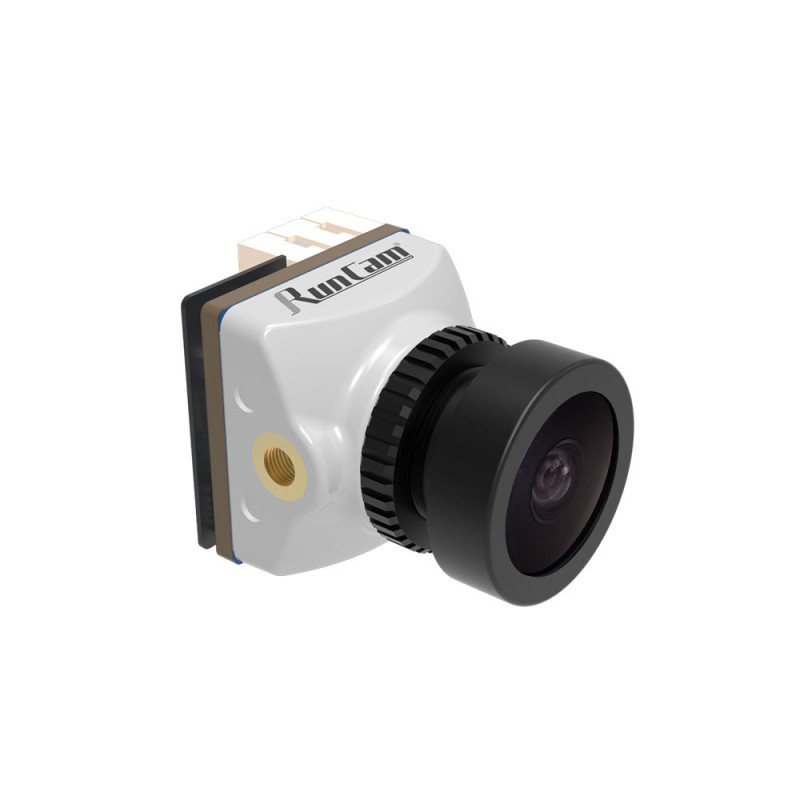

RunCam Racer Nano3 MCK Camera

The RunCam Racer Nano3 MCK camera from the RunCam brand is a compact, lightweight, and functional FPV camera module designed for racing mini-drones and quadcopters. The model combines high horizontal resolution, wide Super WDR dynamic range, and universal compatibility with video signal standards, making it an ideal choice for pilots who need a clear image during fast maneuvers or in challenging lighting conditions.

Specifications

• Model: RunCam Racer Nano3 MCK
• Brand: RunCam
• Scene Settings: Personal / Lightrax
• Screen Format: 4:3 / 16:9 (switchable)
• Image Sensor: Super WDR CMOS Sensor
• Signal System: NTSC / PAL (switchable)
• Dimensions: 14 mm x 14 mm x 16 mm
• Net Weight: 3.5 g
• Power Consumption: 70 mA at 12 V / 120 mA at 5 V
• Power Supply: DC 5-36 V
• Minimum Illumination: 0.01 Lux at 1.2F
• Horizontal Resolution: 1000 TVL
• Electronic Shutter Speed: Auto
• Menu Control: Joystick
• Lens: 1.8 mm FOV 160°
• Housing Material: ABS plastic
• Integrated OSD: Yes
• Mirror / Flip: Available
• WDR: Super WDR
• Signal-to-Noise Ratio: > 50 dB
• Day/Night: Color image

Description and Advantages

The RunCam Racer Nano3 MCK is equipped with a Super WDR sensor, providing an extended dynamic range and high detail in conditions of contrasting lighting: bright sun in the background or darkened areas do not lose important information. The 1000 TVL horizontal resolution ensures frame clarity at high flight speeds, which is especially important for competitions and precise spatial orientation.

Compact dimensions of 14×14×16 mm and an ultra-light mass of 3.5 g allow the camera to be integrated even into the smallest racing drone frames without significantly affecting the lift and control of the aircraft. The ABS plastic housing combines lightness and mechanical resistance, simplifying installation and operation.

The model's functionalities include a switchable screen format of 4:3 or 16:9 and support for NTSC/PAL standards, making the camera compatible with various recording devices and transmitters. Menu settings are adjusted with a convenient joystick directly in the field. The integrated OSD allows for useful telemetry without additional modules, and the mirror and flip options provide freedom when mounting the camera in any orientation.

Power and Energy Consumption

The wide DC 5-36 V power range makes the RunCam Racer Nano3 MCK compatible with most electrical systems and quadcopter controllers. Low current consumption — 70 mA at 12 V and 120 mA at 5 V — helps save battery resources during long flights.

Package Contents

• 1x RunCam Racer Nano 3 1.8 mm camera – MCK FPV Edition
• 1x ABS plastic bracket
• 1x 4-pin cable
• 1x User manual

This camera is perfectly suited for competitions, training, and amateur flights where reaction speed, minimal weight, and maximum image clarity are important. The RunCam Racer Nano3 MCK is an excellent choice for pilots who value the combination of image quality, compact form factor, and ease of integration into the drone's design.
