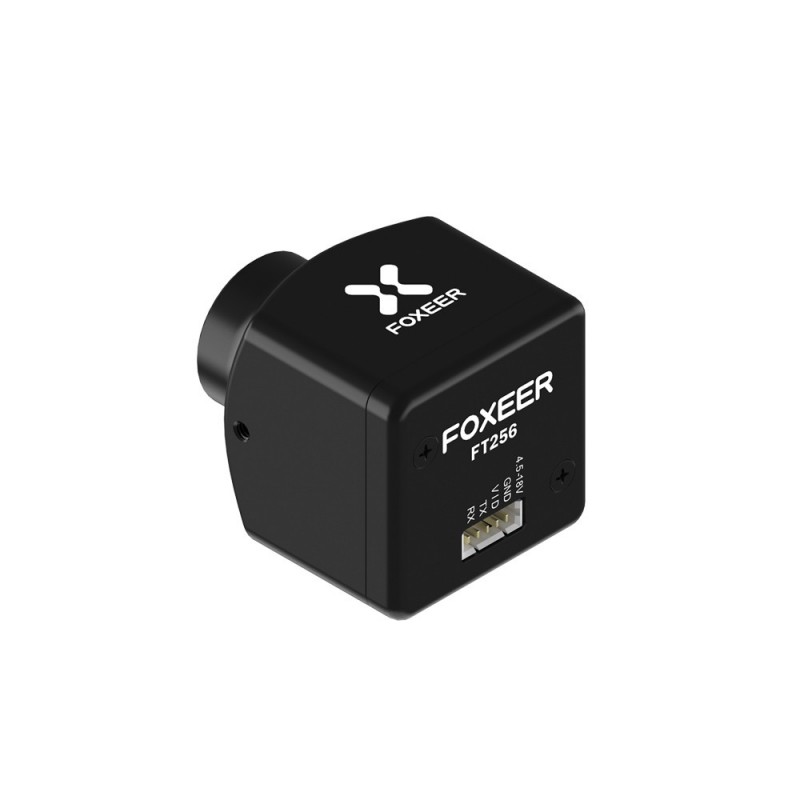

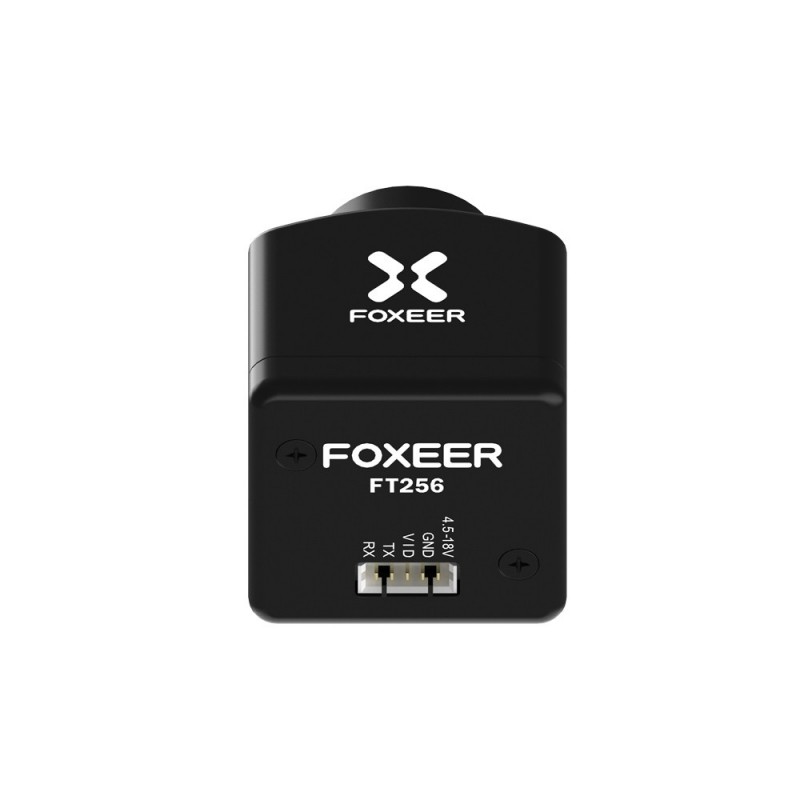

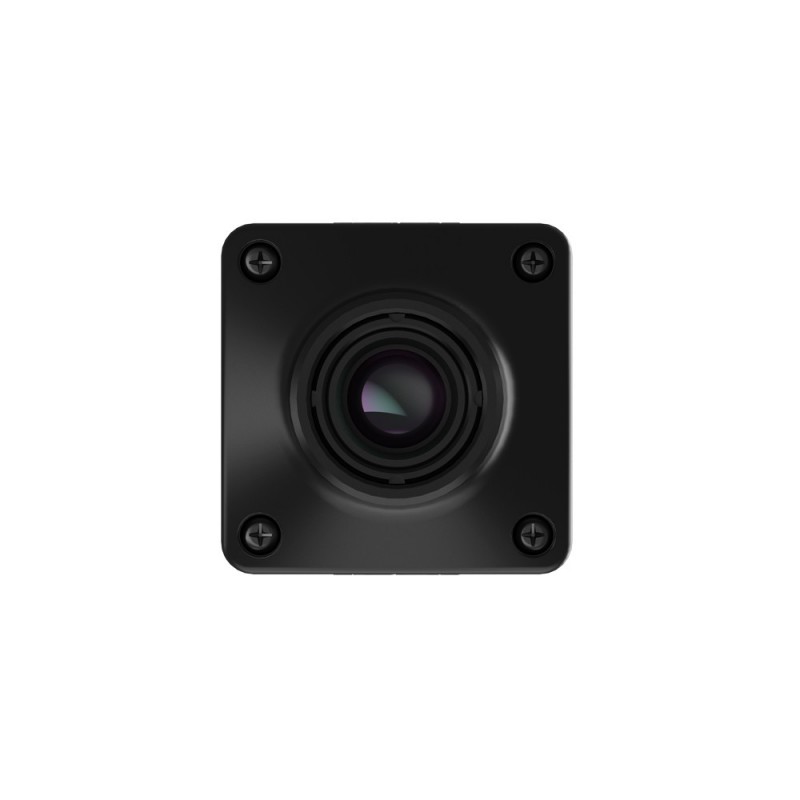

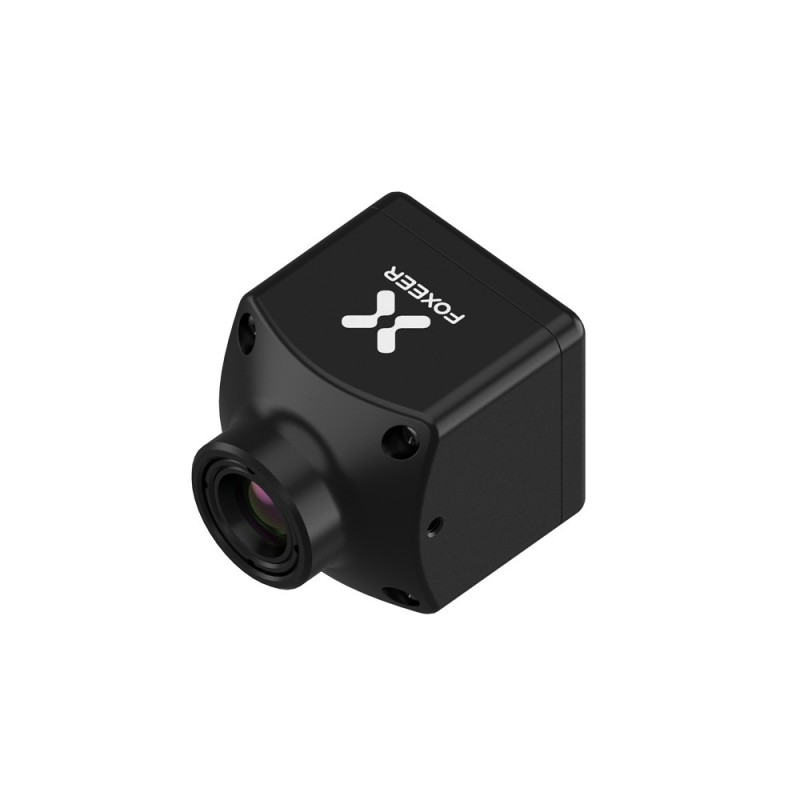

Foxeer FT256 Analog CVBS Thermal Camera from Foxeer is a compact and reliable thermal module for drones and mobile platforms. This model is designed for integration into surveillance systems, rescue operations, and inspection tasks: it features a CVBS video output for compatibility with a wide range of analog video systems and supports power input in the 4.5-18V range, making it versatile for multirotors, portable devices, and other installations. The housing measures 25.8×25.8×31.8 mm and weighs only 28 g — this minimizes impact on the platform's mass and center of gravity, which is especially important for lightweight UAVs.
Advantages of Foxeer FT256 Analog CVBS Thermal Camera
- High resolution of 256×192 pixels for precise detection of thermal sources and objects even in challenging conditions.
- Wide operating temperature range from -40℃ to +80℃ ensures stable performance in extreme climates.
- Robust and protected housing — resistance to moisture, dust, and external impacts ensures durability in field conditions.
- Easy integration: intuitive settings, compatible outputs, and small dimensions allow quick connection of the camera to existing monitoring and control systems.
- Video output: Analog CVBS for compatibility with analog recorders and transmitters.
- Power supply: 4.5-18V — versatility for various platforms and power sources.
Applications
The Foxeer FT256 is ideal for security and surveillance tasks, night patrolling, search and rescue operations, as well as agricultural monitoring and infrastructure inspection. Thanks to its spectral range of 8～14 μm, the camera captures thermal contrasts invisible in the optical range, allowing the detection of people, animals, equipment overheating, and other anomalies.
Package Contents
Package Contents:
- 1 x Camera
- 1 x Cable
- 1 x Mount
Technical Specifications
| Specifications | Value |
|---|---|
| Resolution | 256*192 |
| Frame Rate | 50 fps |
| Lens | Fixed focus Atherma 7mm |
| Field of View | 25°*19° |
| Refresh Rate | 25 Hz |
| Detector Type | 12 μm |
| Spectral Range | 8～14 μm |
| Thermal Sensitivity | Drone Parts > Cameras. The Foxeer FT256 model provides reliable thermal diagnostics and versatile integration into analog video ecosystems, combining small dimensions, low weight, and low power consumption with a wide range of applications. If you are looking for a compact thermal camera for drones or mobile surveillance solutions — this model will be a practical choice. |
Additional key features and information: brand — Foxeer; product category — Drones and Quadcopters > Cameras; Analog CVBS video output; 4.5-18V power supply; dimensions 25.8×25.8×31.8 mm; weight 28 g; operating temperature range -40℃ to +80℃; spectral range 8～14 μm; detector type 12 μm; fixed Atherma 7 mm lens; field of view 25°*19°; frame rate 50 fps; refresh rate 25 Hz. The camera is suitable for integration into monitoring systems, drones, mobile solutions for inspections and rescue operations, where compactness, low weight, and low power consumption are important.
