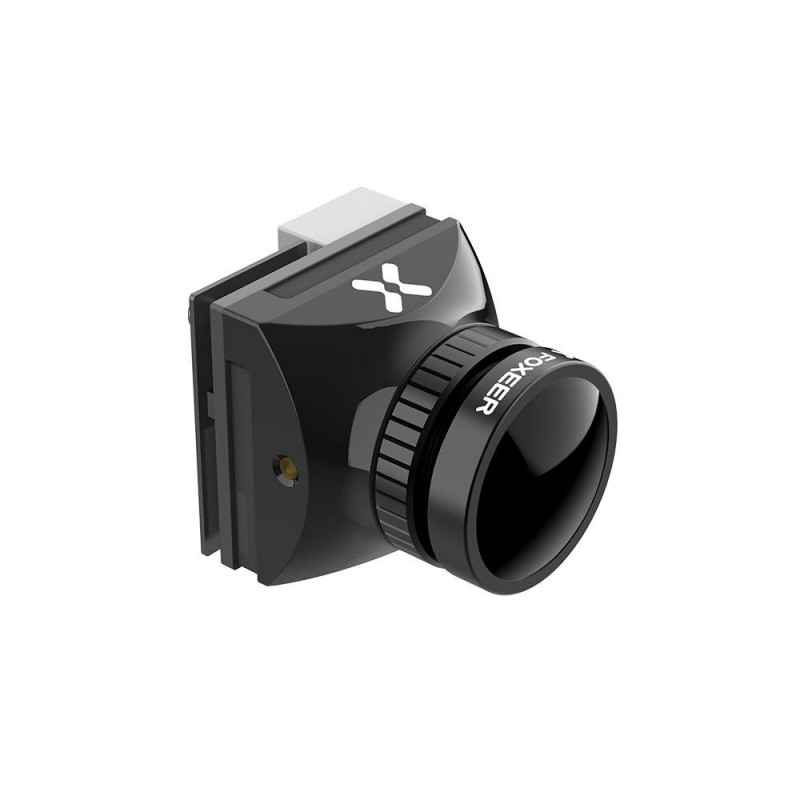

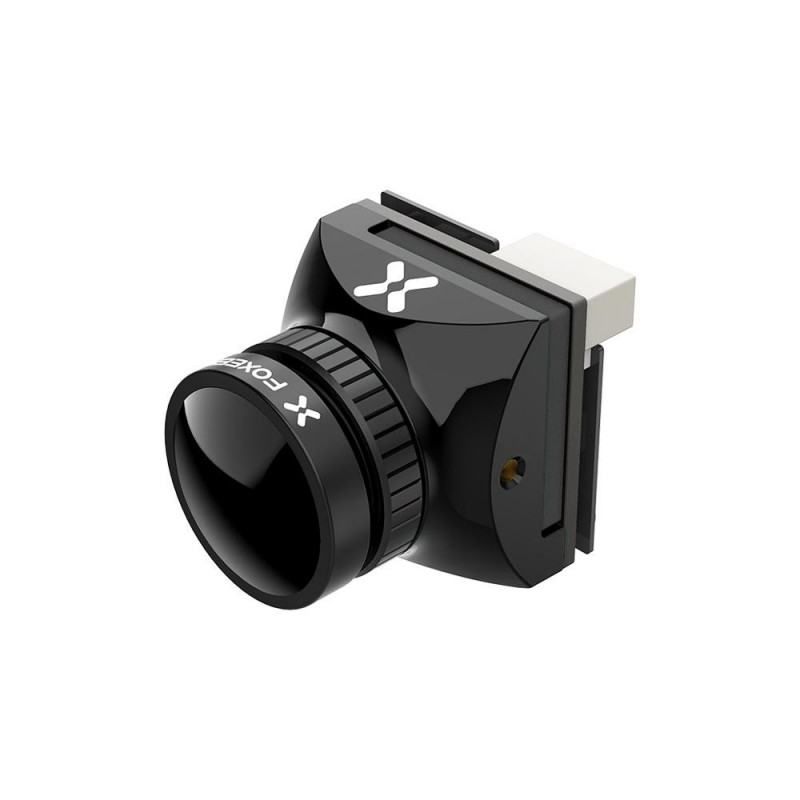

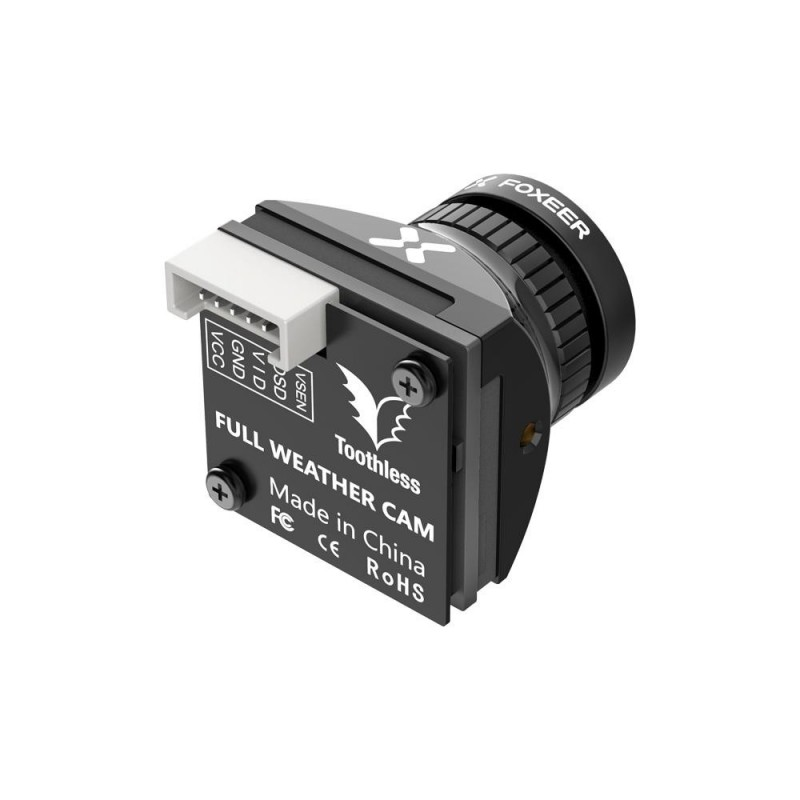

Foxeer Toothless 2 Micro FPV Camera
Foxeer Toothless 2 Micro is a compact, lightweight, and high-tech FPV camera from the Foxeer brand, designed specifically for racing and freestyle drones where weight, size, and image quality are critical. The camera combines an advanced Sony sensor, a wide range of settings, high sensitivity in low light, and durability in various operating conditions, making it an ideal choice for pilots who want detailed video during flight.
Key Advantages
- Sony 1/2″ CMOS sensor provides a clear and detailed image with 1200TVL resolution.
- Switchable 4:3 / 16:9 aspect ratio and support for PAL/NTSC video systems for compatibility with various equipment.
- Ultra-wide field of view with multiple FOV options for optimal coverage during maneuvering.
- Super sensitivity in low light: minimum illumination 0.0001 Lux, allowing flights in twilight and low light conditions.
- Super WDR 100 dB and 3DNR for high-quality scene reproduction in high-contrast conditions and noise reduction in the video signal.
- Flight OSD displays power voltage, camera name, and time directly in the video feed.
- Wide power input range: from 5 V to 16 V ensures flexible integration with various drone power systems.
- Compact dimensions of 19×19 mm and a weight of only 8.5 g (without cable) make the camera an excellent choice for lightweight frames and miniature builds.
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor Type | Sony 1/2″ CMOS |
| Aspect Ratio | Switchable between 4:3 and 16:9 |
| Video System | PAL / NTSC (switchable) |
| Resolution | 1200TVL |
| Field of View (FOV) |
|
| Shutter Speed |
|
| Video Output | Analog CVBS signal |
| Minimum Illumination | 0.0001 Lux |
| White Balance | Auto |
| Digital Noise Reduction (DNR) | 3DNR |
| Wide Dynamic Range (WDR) | 100 dB |
| Day/Night Mode | EXT / Auto / Color / B&W |
| Flight OSD | Voltage / Camera Name / Time |
| Input Voltage | 5 V ~ 16 V |
| Menu Language | English, Chinese, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese, Greek |
| Operating Temperature | -10° ~ 50°C (relative humidity up to 90% max.) |
| Operating Humidity | 20 ~ 80% |
| Storage Temperature | -20° ~ 70°C |
| Current Consumption |
|
| Dimensions | 19 mm × 19 mm |
| Weight | 8.5 g (without cable) |
The Foxeer Toothless 2 Micro stands out for its reliability and durability: its design and electronics are engineered for operation in challenging flight conditions, and the multilingual menu allows for quick parameter adjustment to suit your needs. The camera easily integrates into standard FPV systems thanks to its compact size and universal mounting, while providing a stable analog CVBS video signal for most transmitters and displays.
This model is suitable for pilots who value fast response, high detail, and the ability to fly in low light or high-contrast scene conditions. Support for a wide power input range (5–16 V) and flight OSD makes integration simple, and powerful 3DNR and WDR algorithms ensure a clean image in various conditions.
Order the Foxeer Toothless 2 Micro camera to enhance the quality of your FPV flights and get stable, detailed video even in challenging lighting conditions.
