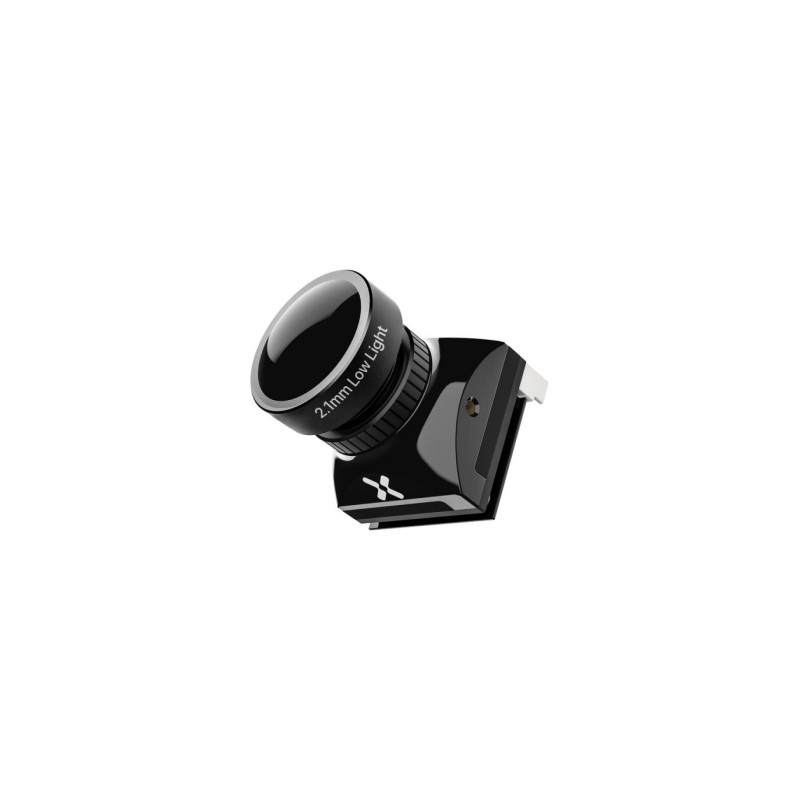

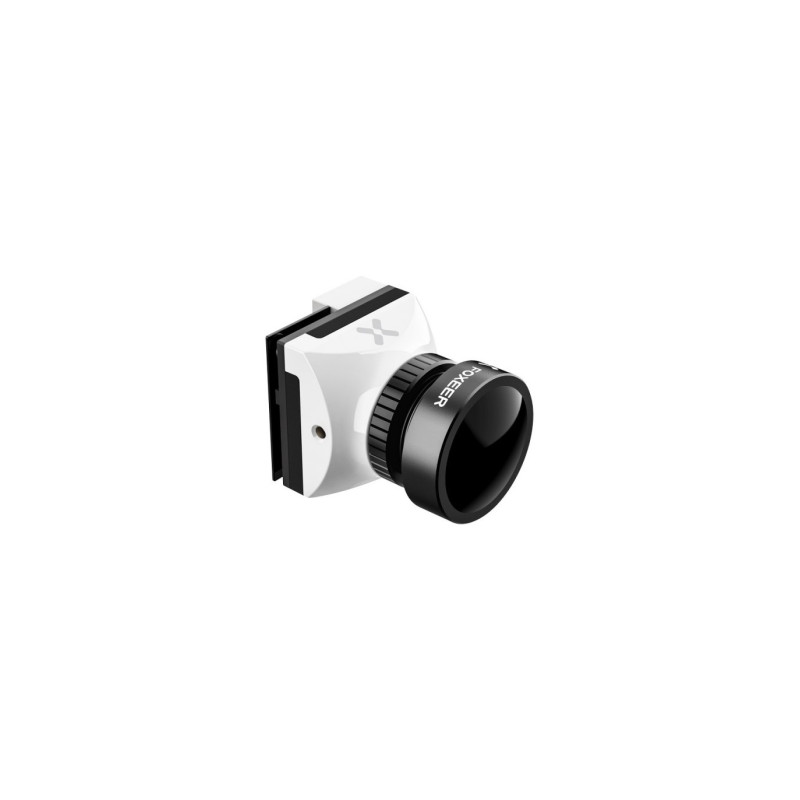

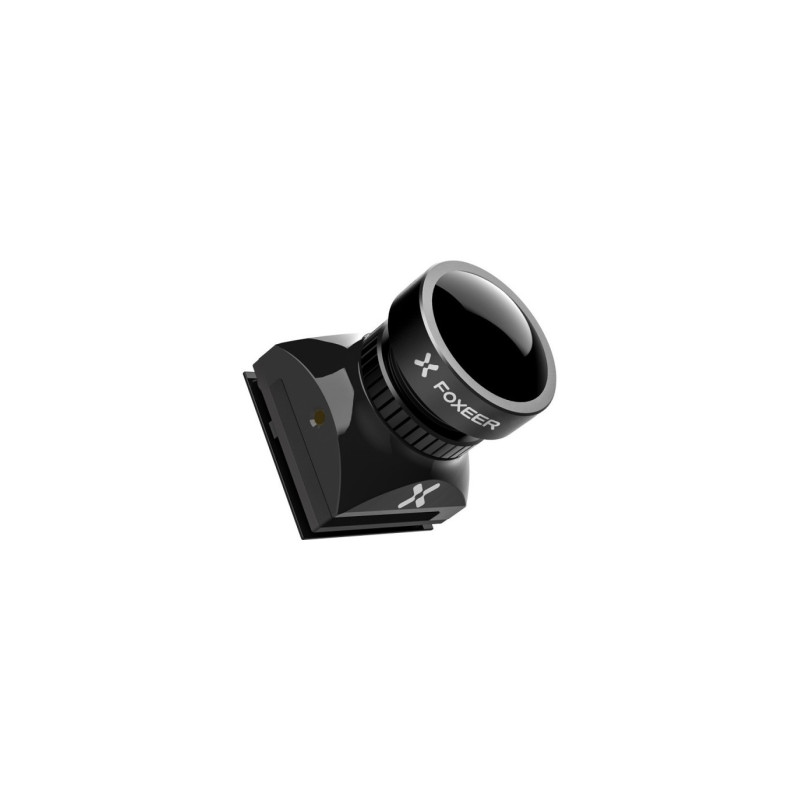

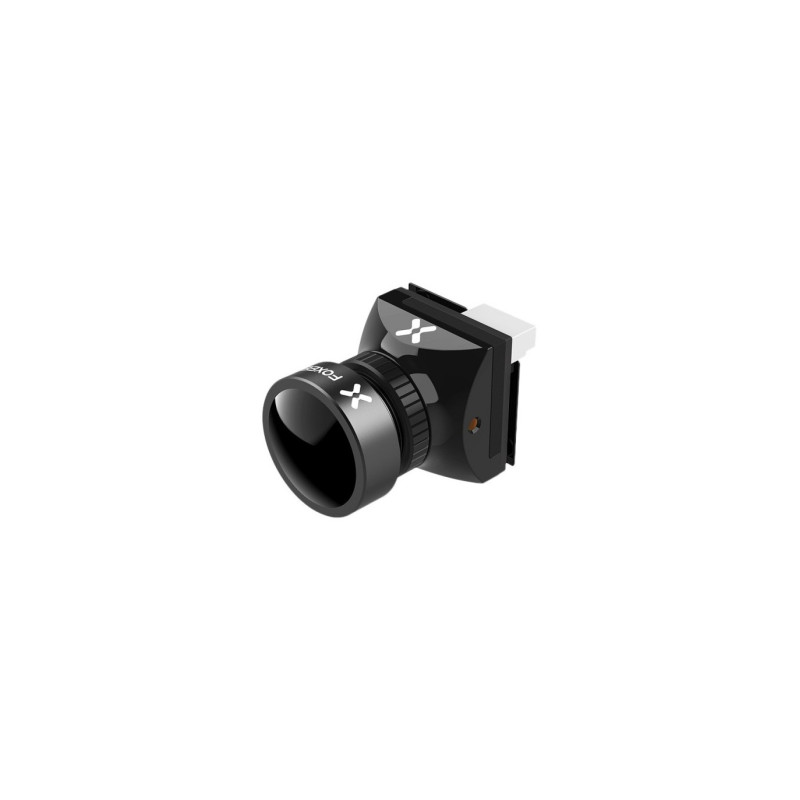

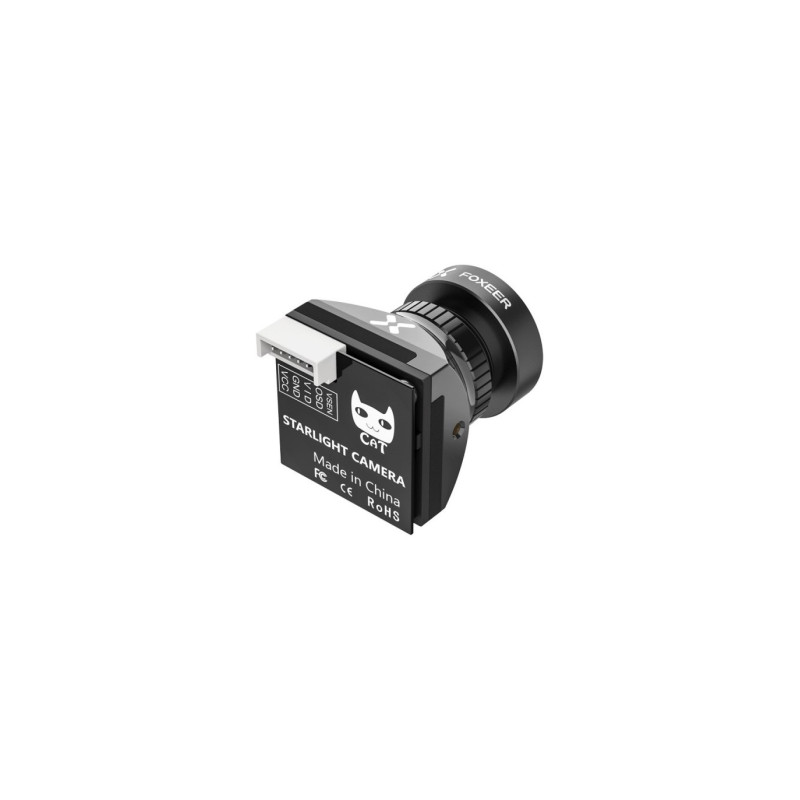

Foxeer Cat 3 Micro Camera for Drones — Compact and High-Quality Optics from Foxeer
Product Overview: The Foxeer Cat 3 Micro Camera is a lightweight, compact, and functional analog FPV camera designed specifically for racing quadcopters, freestyle, and mini-drones. Brand: Foxeer. Category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Cameras. The Cat 3 Micro combines high resolution, wide dynamic range, and minimal video signal latency, making it an ideal choice for fast maneuvers and precise aerial orientation.
Key Features:
— Sony 1/3" CMOS sensor provides a clear, high-contrast image;
— 1200TVL resolution for detailed video stream;
— Supports 4:3 and 16:9 formats with switchable options for compatibility with various transmitters and monitors;
— Switchable PAL/NTSC TV systems;
— Wide field of view depending on aspect ratio: for 4:3 FOV-H: 100° / FOV-D: 125°; for 16:9 FOV-H: 100° / FOV-D: 115°.
| Parameters | Value |
|---|---|
| Sensor | Sony 1/3″ CMOS |
| Resolution | 1200TVL |
| Format | 4:3/16:9 (switchable) |
| TV System | PAL/NTSC (switchable) |
| Field of View | 4:3 FOV-H: 100° / FOV-D: 125°; 16:9 FOV-H: 100° / FOV-D: 115° |
| Shutter Speed | PAL 1/25 ~ 1/10000 s; NTSC 1/30 ~ 1/10000 s |
| Video Output | CVBS |
| Minimum Illumination | 0.00001Lux |
| White Balance | Auto |
| DNR | 3DNR |
| WDR | 100dB |
| Latency | Less than 10 ms |
| Day/Night Modes | EXT/Auto/Color/B&W |
| OSD (On-Screen Display) | Voltage, Name, Time |
| Input Voltage | 4.6V ~ 20V |
| Power Consumption | 95mA ± 15% at 12V |
| Original Size | 19 x 19mm |
| Weight | 10.7g (without cable) |
Advantages and Applications:
The Foxeer Cat 3 Micro stands out for its exceptional compactness — its dimensions of 19 x 19 mm and weight of 10.7 g (without cable) allow it to be installed even on the smallest micro-drone frames. The low minimum illumination of 0.00001Lux ensures reliable operation in low light and at night. 3DNR and WDR 100dB technologies provide a clean image in challenging lighting conditions, reducing noise and glare. The low video signal latency (less than 10 ms) gives pilots an advantage during fast maneuvers and competitions.
Compatibility and Video Signal:
The camera features a CVBS video output, ensuring broad compatibility with video transmitters and receivers. Support for PAL/NTSC and the ability to switch between 4:3 and 16:9 formats make the Cat 3 Micro versatile for various equipment. The input voltage range of 4.6V~20V allows connection to different power sources in the drone's design, and the consumption of 95mA ± 15% at 12V minimizes battery load.
Package Contents
- 1 x Foxeer Micro Cat 3 Camera
- 1 x OSD Remote
- 1 x Set of Bolts and Nuts
- 1 x Servo Cable for TBS Unify VTX
Who It's For:
The Foxeer Cat 3 Micro is ideal for racing pilots, freestylers, and anyone who needs the lightest and highest-quality FPV optics for miniature frames. Thanks to the built-in OSD, information about voltage, name, and flight time is available in the video stream, enhancing control during flight. All technical and mounting parameters are provided in the specifications table above; data is provided by the manufacturer Foxeer.
