Product Code: FA111-KB 0030-25 IG VA-111

In Stock

6 240 грн.

Buy this product in 1 click:

Main specifications

Application: Universal

Cable availability: No

Cable Design: Flexible

Cable type: Coaxial

Central conductor material: Copper

All specifications

We will deliver this product:

Payment

Description

The original high-quality CAVEL WL500ZHN cable is produced exclusively in Italy by the renowned company CAVEL.

Need minimal losses at 2.4 GHz and 5.8 GHz? - This cable is for you!

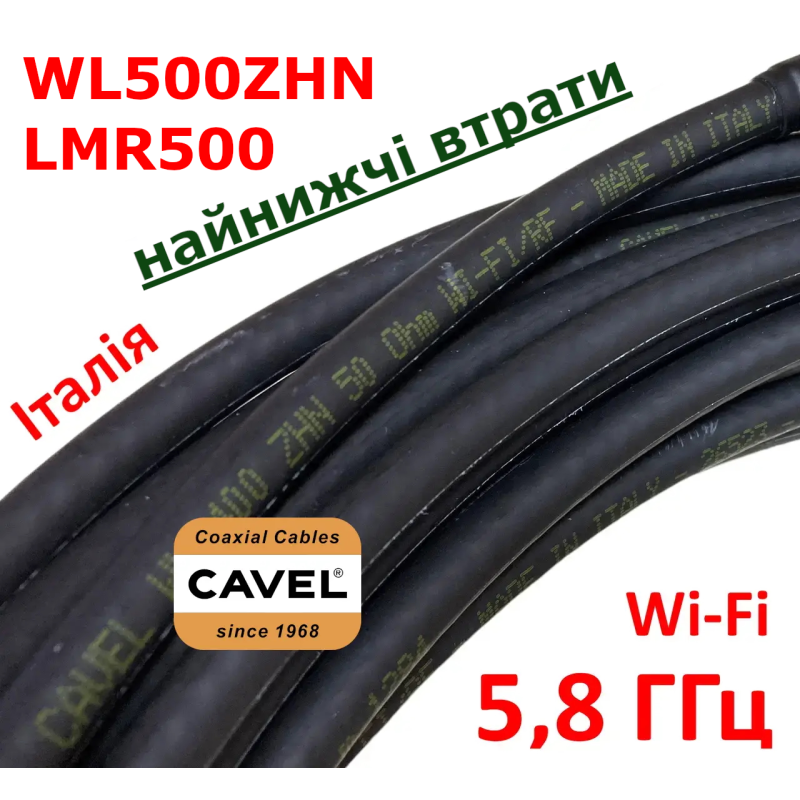

CAVEL WL500ZHN is a 50 Ohm corrugated RF coaxial cable with an outer diameter of 12.7 mm, a black outer jacket, and a 100% copper center conductor. It offers excellent shielding from external electromagnetic interference and environmental resistance.

High-quality installation of N-Type, QMA connectors with sealing, and manufacturing of adapters (pigtails) are available.

The CAVEL WL500ZHN cable ensures minimal signal attenuation over distance and environmental impact, but its thickness and rigidity make direct connection to devices with miniature SMA and QMA type connectors difficult.

It is recommended to additionally purchase appropriate adapters or "pigtails":

N-type = SMA (male)

N-type = SMA (female)

N-type = QMA (male)

N-type = QMA (female)

The highest quality connectors and other materials are used in manufacturing.

For additional sealing, heat shrink tubing is applied with adhesive.

An essential production stage is testing significant parameters on professional equipment.

As a result, you receive a product of the highest quality and can be confident in its performance under all permissible conditions.

Thanks to quality materials, the cable is easily solderable.

If you are looking for a copper coaxial cable LMR500 or a similar 50 Ohm cable, then CAVEL WL500ZHN will be an excellent alternative for your project due to its superior electromagnetic and mechanical properties.

The CAVEL WL500ZHN coaxial cable (which you can confidently use as an LMR500 coaxial cable) boasts European manufacturing quality, excellent operational and technical characteristics, and an affordable price.

Below, we provide the parameters of the CAVEL WL500ZHN cable, so you can compare them with the characteristics of the LMR 500 cable.

RF coaxial cables are used for transmitting high-frequency signals in various electronic equipment, especially in transmitters and receivers, transceivers, radio and TV transmitters, and antennas.

Various mechanical, temperature, and electrical characteristics of coaxial cables allow them to be used for signal transmission up to 5800 MHz.

CAVEL WL500ZHN Technical Specifications

Construction
Center conductor:
material		Cu
diameter	mm	3.4
Dielectric:
material		PEG/PE
diameter	mm	9.4
Shield:
Laminated foil	material	APAS
Braid	material	CuSn
- coverage	%	78
- diameter	mm	10.17
Outer jacket:
material		LSZH
diameter	mm	12.7
Physical parameters
Copper weight	kg/km	116.0
Cable weight	kg/km	212.23
Minimum bending radius single/	mm	100
multiple bends	mm	-
Tensile strength for cable	N	1150
Electrical parameters
Characteristic impedance	Ohm	50 ±2
Capacitance	pF/m	78
Velocity of propagation	%	86
ATTENUATION AT 20 °C
50 MHz	dB/100m	1.9
150 MHz	dB/100m	3.4
200 MHz	dB/100m	4.2
220 MHz	dB/100m	4.4
300 MHz	dB/100m	5.3
450 MHz	dB/100m	6.6
470 MHz	dB/100m	6.7
862 MHz	dB/100m	9.5
900 MHz	dB/100m	9.7
1000 MHz	dB/100m	10.3
1500 MHz	dB/100m	13.1
1800 MHz	dB/100m	14.5
2000 MHz	dB/100m	15.4
2500 MHz	dB/100m	17.5
5800 MHz	dB/100m	23.8
Return loss coefficient
5 - 470 MHz	dB	> 30
30 - 300 MHz	dB	> -
300 — 600 MHz	dB	> -
470 — 1000 MHz	dB	> 28
600 — 1000 MHz	dB	> -
1000 — 2000 MHz	dB	> 26
2000 - 3000 MHz	dB	> 22
Shielding factor
5 - 30 MHz	mOhm/m	> 2.5
30 — 1000 MHz	dB	> 90
1000 — 2000 MHz	dB	> 105
2000 - 3000 MHz	dB	> 100
Inner conductor resistance	Ohm/km	2.1
Outer conductor resistance	Ohm/km	4.2
Loop resistance	Ohm/km	6.3
Maximum power
30 MHz	W	4400
50 MHz	W	3400
100 MHz	W	2550
150 MHz	W	1930
220 MHz	W	1600
400 MHz	W	1160
450 MHz	W	1090
900 MHz	W	750
1000 MHz	W	710
1500 MHz	W	570
1800 MHz	W	520
2000 MHz	W	490
2500 MHz	W	430
5800 MHz	W	-
Breakdown voltage	kV	8

Key Characteristics	LMR 400 Cable	LMR 500 Cable
Manufacturer	Cavel
Country of origin	Italy
Purpose	For communication systems
Cable type	Coaxial
Cable construction	Flexible
Installation type	Outdoor
Length in reel	500 m
Dielectric	Polyethylene
Dielectric diameter	7.2 mm	9.4 mm
Center conductor diameter	2.7 mm	3.4 mm
Outer diameter	10.3 mm	12.7 mm
Braid coverage	82 %	78 %
Weight per 1 km of cable	148.80 kg	212.23 kg
Minimum bending radius (single/repeated bending)	52 / 103 mm	65 / 130 mm
Maximum cable pulling force	720 N	1150 N
Inner conductor resistance	3.4 Ohm/km	2.1 Ohm/km
Minimum installation temperature	-5 °C	-5 °C
Operating temperature	-20 / +80 °C	-20 / +80 °C
Impedance	50 Ohm	50 Ohm
Velocity ratio	86 %	85 %
Outer conductor resistance	6.0 Ohm/km	5.0 Ohm/km
Loop resistance	9.4 Ohm/km	7.1 Ohm/km
Jacket insulation voltage (spark test)	8 kV	8 kV
Maximum current	25 A	34 A
Service life	15 years
Price per 1 m	183 UAH	198 UAH
Main difference: • Diameter and signal attenuation: WL500ZHN has a larger diameter (12.7 mm vs 10.3 mm for WL400ZHN), which provides lower signal loss, especially at high frequencies (e.g., 2.4 GHz and 5.8 GHz). This makes it a better choice for longer communication lines or applications where minimal attenuation is critical. • Flexibility and installation: WL400ZHN, having a smaller diameter, is more flexible and convenient for installation in confined spaces or when connecting to devices with miniature SMA or QMA type connectors.




Attenuation (at 20°C)
	Attenuation frequency [MHz]	Attenuation [dB/100m]
50 MHz	2.8	2.3
150 MHz	5	4
220 MHz	6	5
450 MHz	8.7	7.6
900 MHz	12.5	11
1500 MHz	16.6	15.5
1800 MHz	18.2	17
2000 MHz	18.6	18
2500 MHz	22.5	19.5
3000 MHz	24.7	21.4
4000 MHz	28.4	25.8
4800 MHz	31	28.3
5800 MHz	37	32.5

Maximum power
30 MHz	3360	4400
50 MHz	2590	3400
150 MHz	1470	1930
220 MHz	1200	1600
450 MHz	820	1090
900 MHz	570	750
1500 MHz	430	570
1800 MHz	390	520
2000 MHz	360	490
2500 MHz	320	430
