The RG142 high-frequency coaxial cable is a benchmark for signal transmission reliability in extreme temperatures and high-frequency environments. Thanks to double shielding and fluoropolymer (FEP) insulation, this cable ensures minimal loss and maximum interference protection, making it an ideal choice for professional radio communications and industrial equipment.
Purpose
-
Building cellular and satellite communication systems.
-
Manufacturing high-quality cable assemblies (jumpers).
-
Use in radar and navigation equipment.
-
Connecting antennas in high-temperature and aggressive environments.
-
Application in military and aviation equipment.
Technical Specifications
| Parameter | Value |
| Cable Type | RG 142 RF Coaxial |
| Impedance | 50 Ohm |
| Operating Frequency Range | DC - 6 GHz |
| Conductor Material | Brass |
| Insulation Type | PTFE (Polytetrafluoroethylene) |
| Jacket Material | Tan FEP (Fluorinated Ethylene Propylene) |
| Withstanding Voltage | 1500V r.m.s (at sea level) |
| Operating Voltage | 500V r.m.s (at sea level) |
| Temperature Range | -55°C to +155°C |
| Durability | ≥ 500 mating cycles |

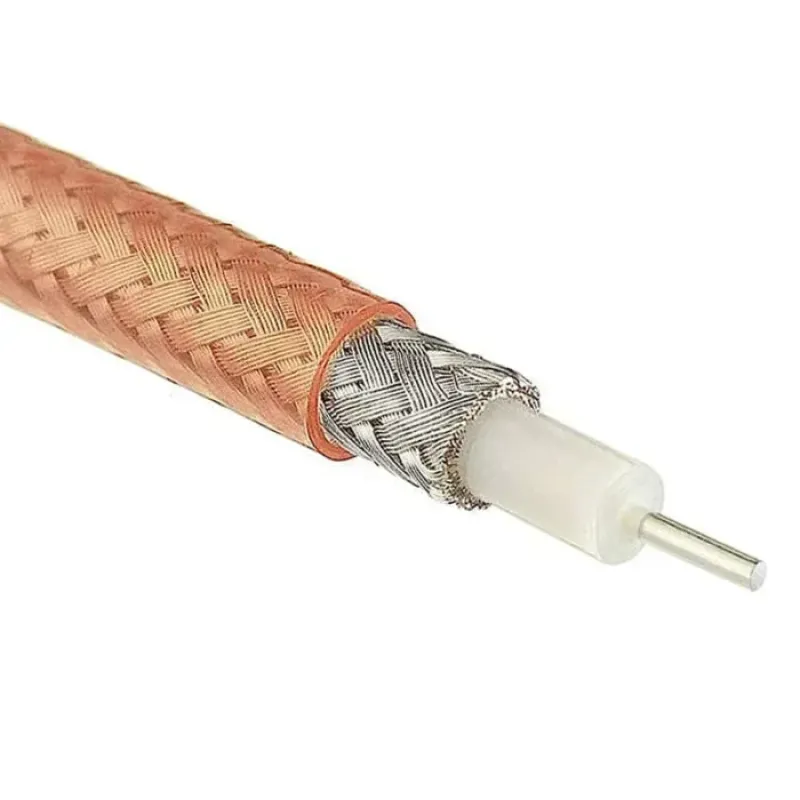

Materials and Construction
-
The center conductor is made of high-quality brass for stable conductivity.
-
PTFE dielectric provides excellent insulation properties at high frequencies.
-
Double shielding ensures a high electromagnetic interference (EMI) protection factor.
-
The Tan FEP outer jacket is resistant to chemical exposure, UV, and moisture.
Functions and Capabilities
The RG142 cable supports stable operation across a wide frequency spectrum up to 6 GHz, allowing its use in modern Wi-Fi, 4G LTE, and 5G standards. High-temperature resistance allows the cable to be routed near heating elements or in engine compartments. The double braid shield minimizes signal leakage and improves VSWR performance.
Compatibility
-
Compatible with standard RF connectors of types N, SMA, TNC, BNC for RG142 cable.
-
Suitable for radio stations, repeaters, and signal amplifiers.
-
Integrates into laboratory measurement equipment systems.
Advantages
-
Minimum signal attenuation at frequencies up to 6 GHz.
-
Exceptional thermal resistance (up to +155°C).
-
High mechanical strength and durability.
-
Reliable double shielding for signal purity.
-
Resistance to aggressive external environments.
Package Contents
-
RG142 Coaxial Cable.
Packaging
-
Individual polyethylene bag for dust protection.
-
Compact packaging measuring 20x10x2 cm.
-
Packaged item weight is 0.088 kg.
Warranty and Service
The product comes with an official manufacturer's warranty. Each cable segment undergoes technical inspection for impedance compliance and shielding integrity.
Choose professional quality for your networks — order RG142 cable today for stable, loss-free communication.
