The CAVEL RG58 C/U cable is a benchmark of Italian quality in the world of radio communications. Manufactured at the Italiana Conduttori factory, this 50-ohm cable ensures flawless signal transmission thanks to its stranded tinned copper conductor and double shielding. It is an ideal solution for those who are not willing to compromise on the reliability and durability of their equipment.
Purpose
- Construction of antenna-feeder devices for radio communications.
- Connection of car and stationary radio stations.
- Use in measuring equipment and laboratory apparatus.
- Connecting components of Wi-Fi systems and radio networks with 50 Ohm impedance.
- Installation of video surveillance systems where a flexible coaxial cable is required.
Technical Specifications
| Characteristic | Value |
|---|---|
| Characteristic Impedance | 50 ± 3 Ohm |
| Center Conductor Material | Tinned copper wires (19 × 0.18 mm) |
| Center Conductor Diameter | 0.9 mm |
| Dielectric Material | Solid Polyethylene (PE) |
| Dielectric Diameter | 2.95 mm |
| First Shield | 100% Aluminum Foil |
| Second Shield | 90% Tinned Copper Braid |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Outer Cable Diameter | 5.0 mm |
| Nominal Capacitance | 91 pF/m |
| Velocity of Propagation | 66% |
| Temperature Range | from -20°C to +70°C |
| Attenuation at 100 MHz | 14.43 dB/100m |
| Attenuation at 1000 MHz | 53.77 dB/100m |

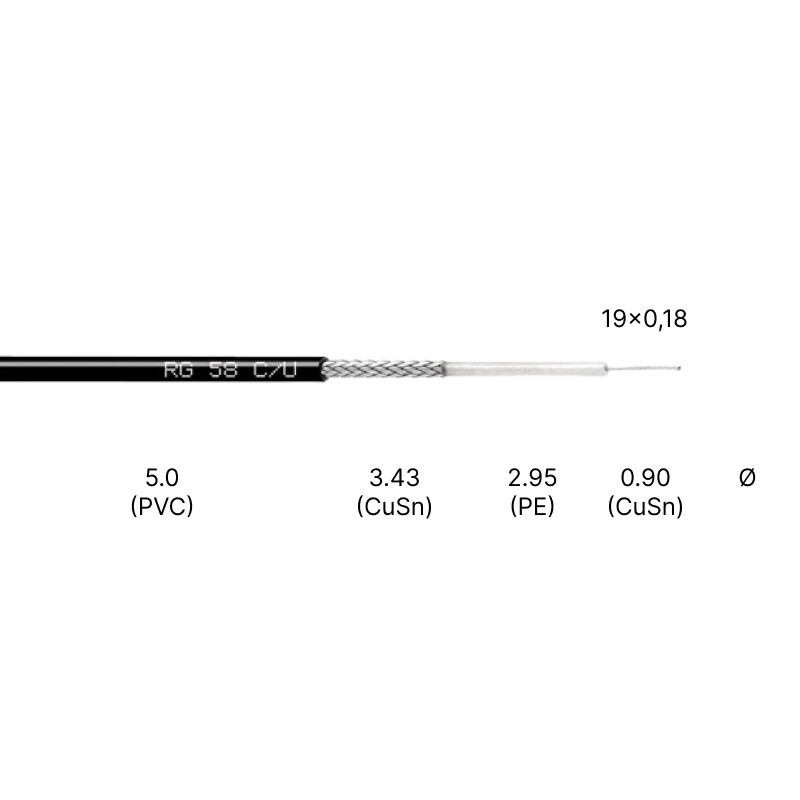

Materials and Construction
- Stranded tinned copper center conductor for maximum flexibility and oxidation resistance.
- High-quality solid polyethylene dielectric ensuring stable parameters.
- Double shielding system (foil + dense braid) for protection against electromagnetic interference.
- Outer jacket made of durable and elastic black PVC, resistant to mechanical stress.
Functions and Capabilities
Thanks to its 19 × 0.18 mm construction, the cable offers excellent flexibility, allowing it to be used in areas with frequent bends, such as when routing in vehicles or connecting measuring instruments. Tinned copper facilitates the soldering of connectors and guarantees a long service life even in humid environments.
Compatibility
- Compatible with BNC, TNC, SMA, N-type, and UHF (PL-259) connectors for RG58 cable.
- Suitable for professional two-way radios from Motorola, Kenwood, Icom, and others.
- Can be used with any equipment having a standard 50 Ohm impedance.
Advantages
- 100% original product manufactured in Italy (CAVEL).
- High shielding density (90% braid) ensures signal purity.
- Tinned components prevent copper corrosion.
- Stable attenuation performance across the entire frequency range.
- High flexibility and ease of installation.
Package Contents
- CAVEL RG58 C/U Coaxial Cable — (1 pc.)

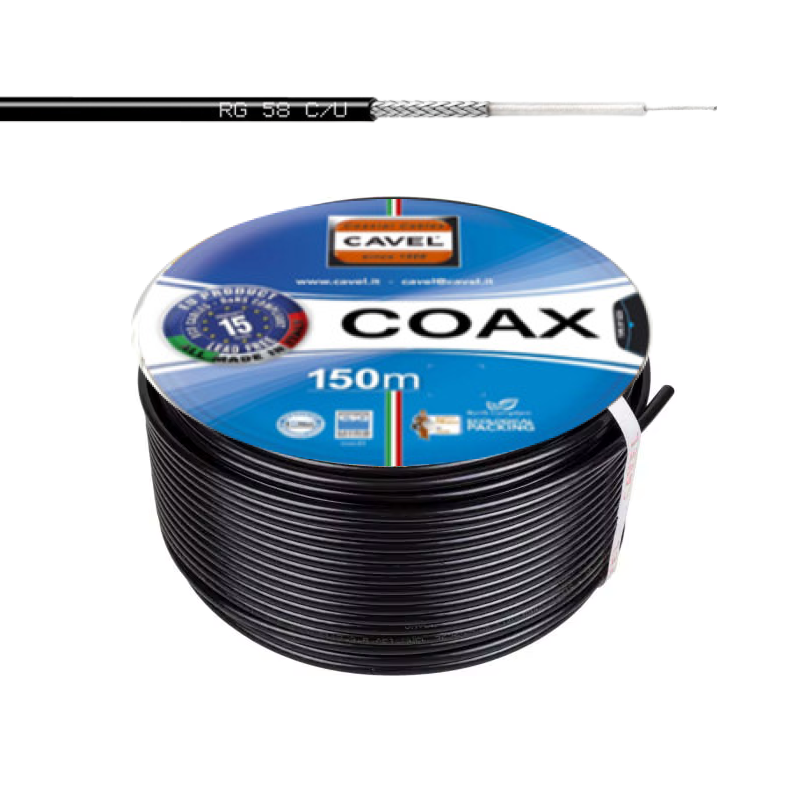

Packaging
- Supplied in an individual cardboard box.
- Cable wound on a special spool for convenient unwinding.
- Factory marking present along the entire length of the cable.
Warranty and Service
The manufacturer guarantees compliance with the stated characteristics throughout the service life, provided installation standards are observed. As an official CAVEL product, the cable undergoes strict outgoing quality control at the factory in Italy.
Choose Italian quality for your communication — order the CAVEL RG58 C/U cable today!
