Product Code: FA100-HA-2737-15-1-100
2 750 грн.
Buy this product in 1 click:
We will deliver this product:
Payment
Description

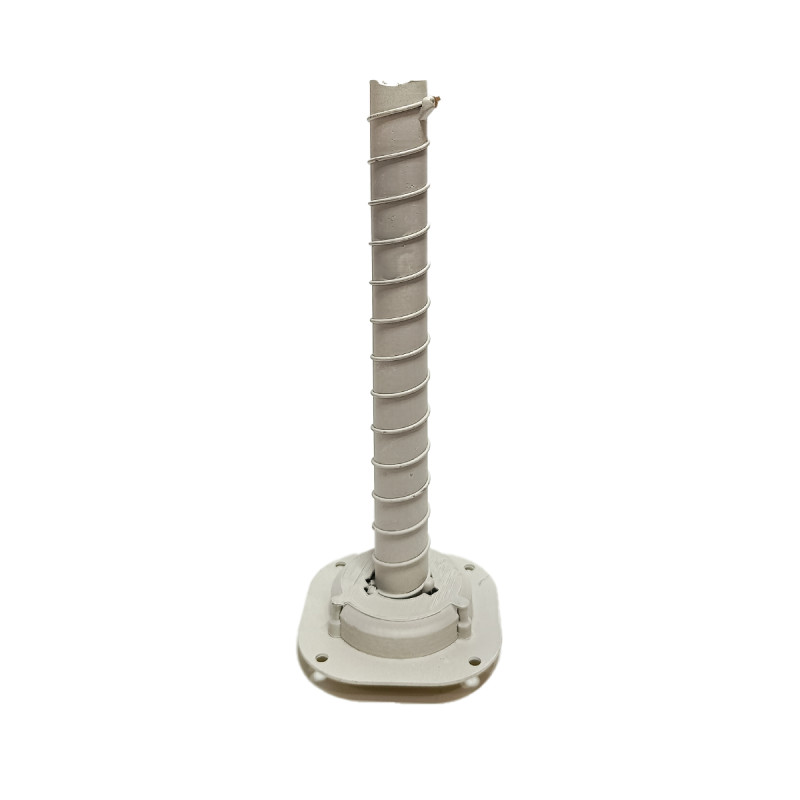

Broadband spiral antenna for the 2.7 - 3.7 GHz band, RHCP or LHCP, gain 12 dBi at 2.7 GHz up to 15.5 dBi at 3.7 GHz. Beamwidth from 27 to 42 degrees. Optimized for installation on repeaters, has small size and weight
Frequency range: 2.7-3.7 GHz
Beamwidth 27-42 degrees
Number of turns - 14
Gain 12-15.5 dBi
Polarization - RHCP or LHCP
VSWR - no more than 2
Connector - SMA
Dimensions 96x96x250 mm
Weight - 108 g
Frequency range: 2.7-3.7 GHz
Beamwidth 27-42 degrees
Number of turns - 14
Gain 12-15.5 dBi
Polarization - RHCP or LHCP
VSWR - no more than 2
Connector - SMA
Dimensions 96x96x250 mm
Weight - 108 g
