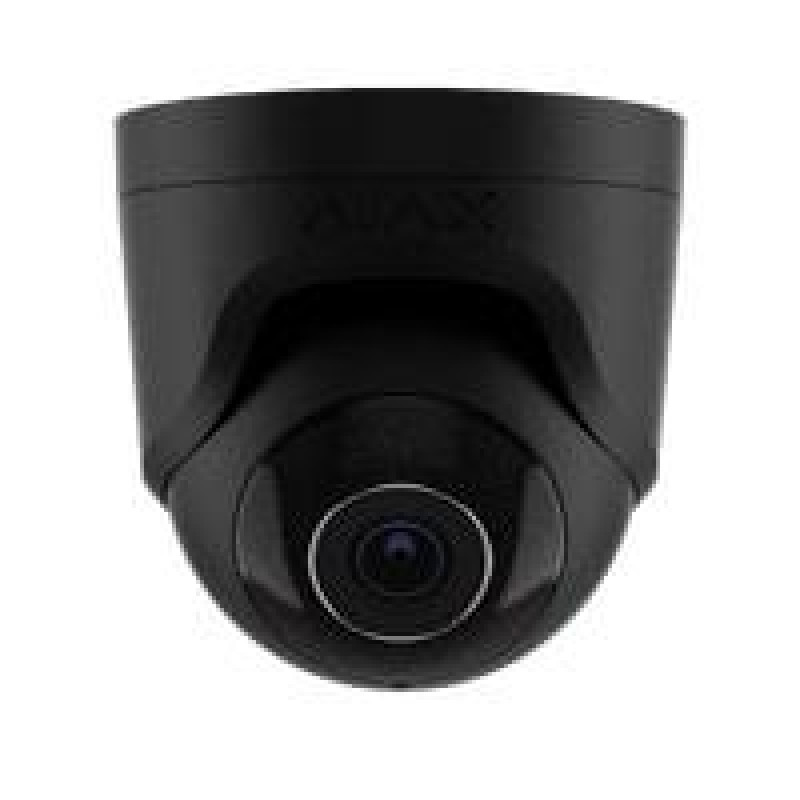

TurretCam is an IP camera with infrared illumination and object recognition. It allows you to view video in real-time and from the archive.
Key features of TurretCam:
Resolution: 5 or 8 megapixels
Lens: 2.8 or 4 mm
Viewing angle: 100 or 75 degrees
Infrared illumination: 10 meters
Supports microSD cards up to 256 GB
Connecting and using TurretCam:
The camera connects to an Ethernet network using a cable.
A hub is required to add the camera to the Ajax system.
For data storage, you can use a microSD card, NVR, or cloud storage.
TurretCam functions:
Real-time video viewing with zoom capability.
Archived video viewing with navigation by recording timeline and calendar.
Setting up motion detection zones and sensitivity levels.
Viewing a video wall showing images from all connected cameras.
Creating video surveillance scenarios so that if a security sensor is triggered, a short video recording from the selected camera is sent to the Ajax application.
Security and privacy:
TurretCam data is transmitted over a secure channel using TLS encryption.
The user can configure access to view video from surveillance cameras for other users and the security company.
Choosing an installation location:
When choosing a location for TurretCam, consider the camera's viewing angle and the presence of obstacles.
Follow the recommendations for device placement during the design phase of the Ajax system for the object.
Places where the camera cannot be installed:
Indoors or outdoors if temperature and humidity indicators do not meet operating parameters.
In places where physical obstacles and structures may block the camera's view.
Rewording of the text:
TurretCam is a modern IP camera with extensive capabilities. It allows you to monitor the situation at any time of day, regardless of lighting.
Main advantages of TurretCam:
High resolution provides a quality image.
Infrared illumination allows visibility in the dark.
Object recognition helps quickly determine what is happening at the site.
The ability to store data on a microSD card, NVR, or cloud ensures reliable storage of recordings.
TurretCam is a reliable assistant in ensuring the security of your home or business.
| Brand | Ajax |
| Model | TurretCam (5 MP/2.8 mm) |
| Camera type | IP |
| Ajax line | Baseline |
| Compatibility | Hub, Hub 2 (2G), Hub 2 (4G), Hub 2 Plus, Hub Plus, Hub Hybrid (2G), Hub Hybrid (4G) |
| Video transmission technology | IP |
| Form factor | Turret |
| Connection type | Wired |
| Camera resolution (MP) | 5 MP |
| Maximum resolution | 5 MP (2880*1620) |
| Matrix type | CMOS |
| Lens type | Fixed |
| Focal length | 2.8 mm |
| Horizontal viewing angle | From 101 to 110 |
| Vertical viewing angle | From 100° to 110° |
| Illumination type | Infrared |
| Illumination range | From 30 to 50 m |
| Maximum illumination range | 35 m |
| Adaptive illumination | Yes |
| Aperture | Fixed |
| Frame rate | 25 fps |
| SD card slot | Yes |
| Card type and capacity | MicroSD up to 256 GB |
| Video compression format | H.264, H.265 |
| Video protection | JetSparrow - a fast and encrypted peer-to-peer video protocol developed by Ajax Systems |
| Built-in microphone | Yes |
| Audio compression format | G222 |
| Wi-Fi support | No |
| PoE (Power over Ethernet) | Yes |
| PoE standard | IEEE 802.3at/ PoE |
| Network interfaces | Ethernet 100 Mbps |
| Smart functions | Yes |
| Smart functions | Human detection, Animal detection, Vehicle recognition |
| Protection class, vandal resistance | IP65 |
| Operating temperature range | From −25 °C to +40 °C |
| Operating humidity | Not more than 90% |
| Operating voltage | 12 V |
| Consumption | 12 V? ± 20%, 1 A |
| Housing material | Metal |
| Weight | 496 g |
| Dimensions | 103 × 98 × 98 mm |
| Color | Black |
