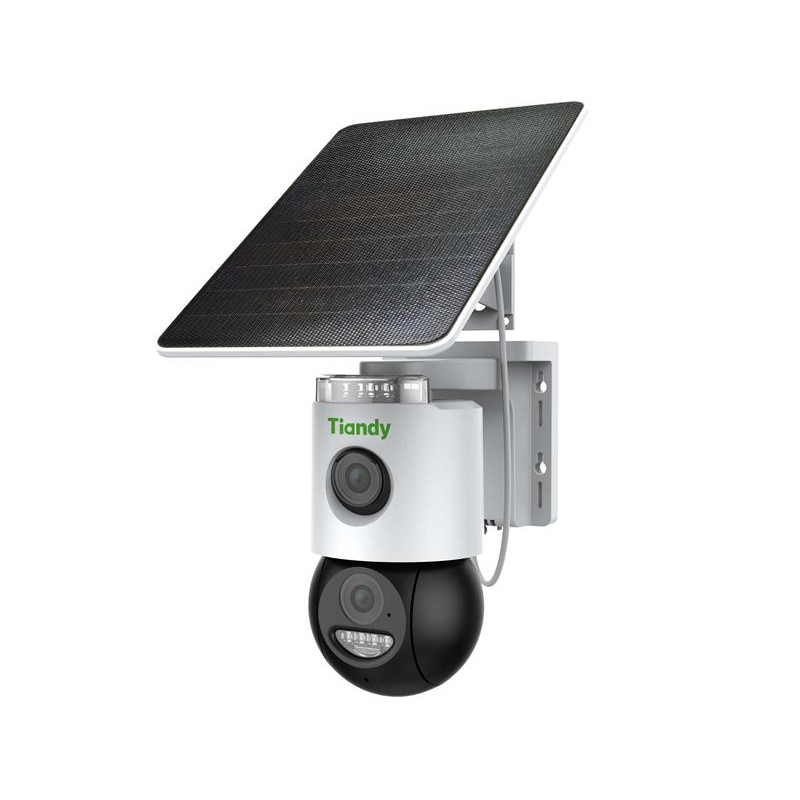

The Tiandy TC-H363U is a powerful 6-megapixel (3+3) PT turret camera with 4G support and a solar panel, designed for autonomous video surveillance in any conditions. Thanks to Color Maker technology, it provides clear full-color video even in darkness — minimum illumination is only 0.002 Lux (color) or 0 Lux in B/W with IR.
The camera is equipped with a powerful 1/2.9″ CMOS sensor and provides dual-stream video — panoramic and detailed modes with 3MP @15 fps resolution, allowing simultaneous wide-angle coverage and a high-attention zone. Built-in SMART IR illumination extends visibility up to 30 m, and front White Light LED illuminators provide quality lighting.
It features PT (pan and tilt) control — 4G connectivity with LTE FDD/TDD support, a built-in 10400 mAh battery, and a solar panel ensure autonomy. Additionally, the camera has two-way audio communication thanks to its built-in microphone and speaker.
Intelligent functions such as WDR/DWDR, digital DNR, BLC/HLC, microSD support up to 256 GB, alert mode (red/blue LEDs, audible alarm) make the TC-H363U an effective solution for challenging installation conditions — especially where there is no wired power or network cables.
With an IP65 protection rating, the camera withstands temperatures from –10°C to +50°C and humidity up to 95%, making it ideal for outdoor or remote video surveillance (homes, farms, construction sites).
Tiandy TC-H363U Specifications
| Feature | Value |
|---|---|
| SENSOR | 1/2.9″ CMOS |
| Max. Resolution | Panorama: 3 MP (2304×1296) @15 fps; Detail: 3 MP @15 fps |
| Min. Illumination | 0.002 Lux (color, F1.0), 0 Lux (B/W with IR) |
| IR Illumination | SMART IR + White Light up to 30 m |
| Color Maker Technology | Yes — full-color night video |
| Lens | 4 mm, fixed, F1.0, M12 mount |
| PT Control | Pan: −60°…+60°; Panorama Tilt: 5°…15°; Detail: 0°…345° |
| DORI Distance | Detect: 57 m; Observe: 22 m; Recognize: 11 m; Identify: 5.7 m |
| Audio | Built-in microphone and speaker, G.711 A/U codecs (8/16 kHz) |
| Video Compression | S+265, H.265, H.264B/M/H |
| Video Bitrate | 32 kbps – 4 Mbps |
| Storage | microSD/SDHC/XC up to 256 GB |
| Power | DC 5 V/2 A; built-in 10400 mAh battery + solar panel |
| Network Interface | 4G LTE FDD/TDD; TCP/IP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH, Unicast |
| Operating Conditions | –10°C…+50°C; up to 95% RH |
| Protection | Surge 500 V; ESD 6000 V; IP65 |
| Housing | Plastic; dimensions: 183×105×102 mm; weight: ~1.66 kg |
