Operating Principle

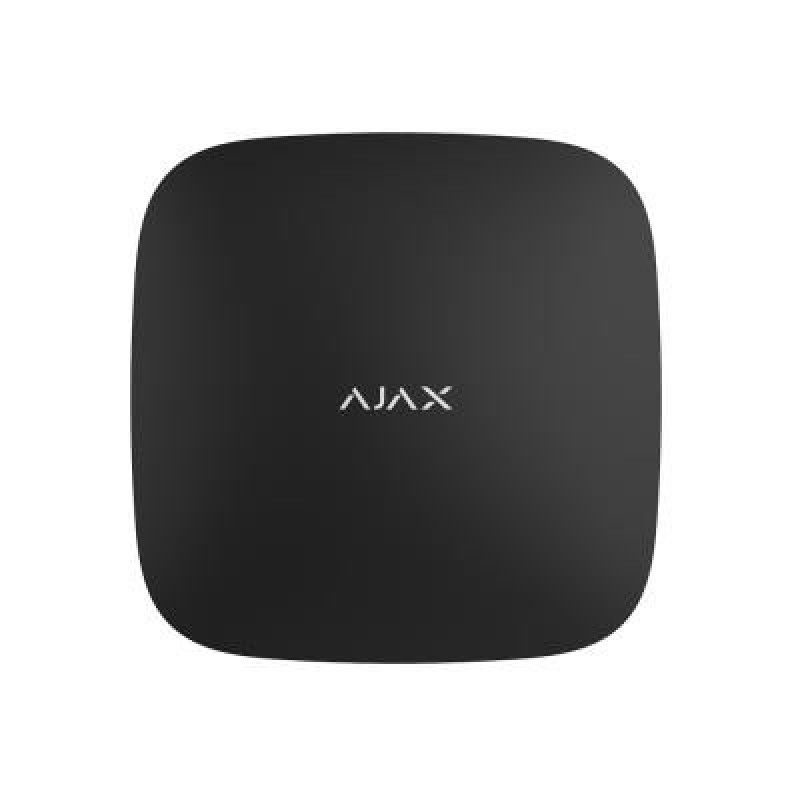

The Ajax Hub 2 (4G) intelligent security control panel manages the security system by sending photo verifications of alarms. In the event of a situation requiring a response, photos from the MotionCam motion sensor will be instantly transmitted to the smartphone app. Ajax Hub 2 (4G) transmits data via one of three communication channels: Ethernet or two SIM cards. The channels operate in parallel, replacing each other in emergency situations. Data transmission and compression protocols guarantee instant delivery of photo verifications even with a weak internet connection. Ajax Hub 2 (4G) analyzes threats, filters out false alarms, and notifies you of real dangers.

• Jeweller wireless technology allows the network to span up to 2000 meters in open space or across several floors of a business center;
• The system operates via Ethernet with LTE/3G/2G as a backup communication channel;
• Ajax Hub 2 (4G) supports up to 100 devices, with the ability to organize 9 security groups;
• Connect up to 25 video cameras or recorders with RTSP protocol support;
• Ability to connect up to 50 users or a security company to the monitoring system (using Contact ID). The system works even with very poor connection quality: a GPRS speed of 0.5 kbit/sec is sufficient;
• Two-way communication with devices allows for continuous testing and simple settings;
• Firmware and software are updated automatically and free of charge;
• Control is possible via a key fob or using free smartphone apps (iOS/Android) or through a browser;
• Supported platforms for mobile applications: iOS 7.1 and higher, Android 4.1 and higher;
• Ajax Hub 2 (4G) stores the history of all marked system events;
• Real-time viewing of video streams from video cameras that support the RTSP protocol. The two-way Jeweller protocol protects transmitted data with encryption;
• In case of radio interference or jamming attempts, Ajax switches to a free radio frequency, notifying of the situation;
• Ajax Wings radio protocol for transmitting graphic data;
• Wings uses a dedicated hub antenna;
• Guarantees photo delivery even with unstable signal levels and communication interruptions;
• All connectors and buttons are hidden inside the casing;
• The casing is protected against tamper opening;
• An alarm is triggered when external power is disconnected;
• Battery life on backup power up to 16 hours;
• Jamming detection and prevention systems, channel encryption, and authentication to protect against device spoofing are active;
• A clear frequency is used for communication with each device in the network and is reconfigured in case of overlap;
• The GSM module provides a backup communication channel in case of internet outage;
• An ultra-thin 50-230V AC power adapter is built into the casing;
• The thickness of Ajax Hub 2 (4G) is less than 4 cm;
• Installation takes 15 minutes thanks to interactive instructions and SmartBracket mounts;
• Remote testing of sensor availability, processing area, and radio noise level;
• New devices are connected in one click using QR codes.

Control Panel Specifications:

• Brand - Ajax;
• Model - Hub 2 (4G);
• Installation Type - Indoor;
• Communication Channels - 2G (GSM900/DCS1800 (B3/B8)), 3G (WCDMA 850/900/2100 (B1/B5/B8)), Ethernet, LTE (FDD B1/B3/B5/B7/B8/B20);
• Switching between 2G, 3G, LTE;
• Switching between SIM cards - 4 minutes;
• Radio Channel Frequency Range - 868.0−868.6 MHz;
• Maximum Radio Signal Power - up to 25 mW;
• Radio Signal Modulation - GFSK;
• Radio Signal Range - Up to 2000 m (without obstacles);
• Wireless Sensor Frequency - Jeweller protocol (868/915 MHz), Wings radio protocol;
• Notification Types - SMS, call, push;
• Mobile Application - iOS 9.1 and higher, Android 4.4 and higher;
• Operating System - OS Malevich;
• Connection to Monitoring Station - Contact ID, SIA. Fire photo verification is transmitted to Manitou, ABsistemDC(NG) and SB CMS;
• Connection Interface - RJ45;
• Remote Configuration;
• Anti-sabotage;
• Protection against spoofing, jamming notification;
• Tamper Protection - Tamper for opening and detachment;
• Power Supply - 110−240 V from mains;
• Power Consumption from Mains - 10 W;
• Built-in Battery - Li-Ion;
• Built-in Battery Capacity - 2 A*h;
• Operating Temperature Range -10°С ~ +40 °С;
• Operating Humidity - Up to 75%;
• Service Life - Up to 10 years;
• Certification - DSTU EN 50131;
• Casing Material - Plastic;
• Color - White;
• Dimensions - 163 × 163 × 36 mm;
• Weight - 362 g;
• Warranty - 24 months;
• Package Contents - Ajax Hub 2 (4G) control panel, SmartBracket panel, Power cable, Ethernet cable, Mounting kit, SIM cards (depends on sales region), Manual;
• Maximum number of connected wireless devices (sensors, key fobs, keypads, etc.) - 100 devices;
• Operation time without power - 16 hours;
