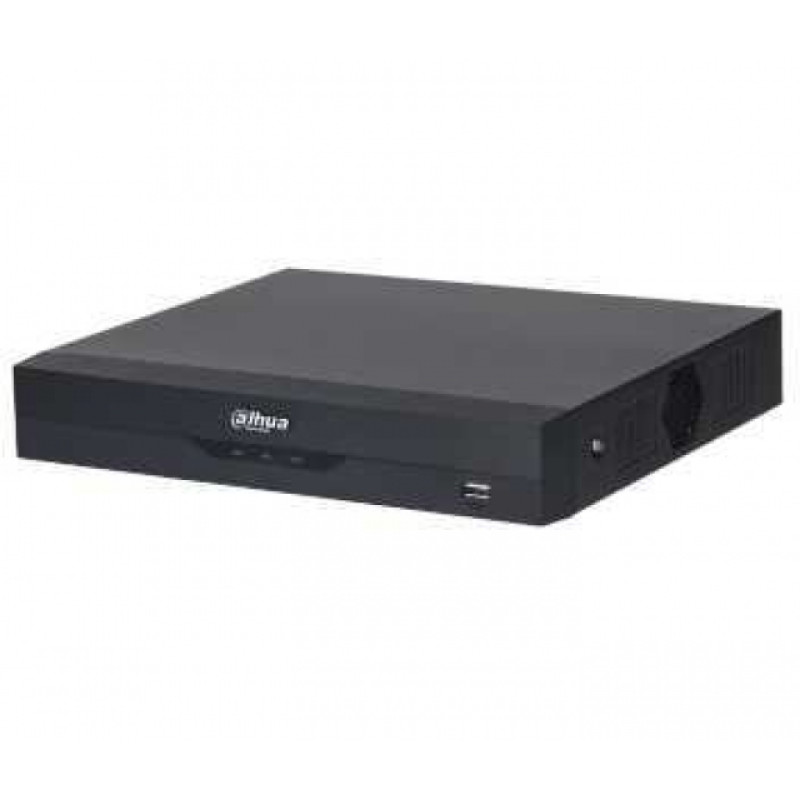

Dahua DH-XVR4104HS-I — 4-Channel Penta-brid WizSense DVR

Brand: Dahua. Name: Dahua DH-XVR4104HS-I. Category: Electronics > Video Surveillance > DVRs. This is a compact 1U DVR designed for reliable recording and analytics based on WizSense technology, ensuring efficient operation in surveillance systems for small and medium-sized facilities.

Key Features

This device is a 4-channel Penta-brid recorder, compatible with various camera formats: HDCVI, analog, AHD, TVI, and IP, providing flexibility when upgrading existing systems. The model supports 1080N/720p quality, with 1080p and 720p resolutions available at 25/50 fps in HDCVI mode.

Technical Specifications

• Video Interfaces: 4 BNC inputs
• Camera Support: 4+1 IP
• Video Encoding: AI Coding / H.265+ / H.265 / H.264+ / H.26
• Video Outputs: HDMI, VGA
• Network Interface: 1 x RJ-45 (100 Mbps)
• Audio: 1 input / 1 output
• Interfaces: 2 x USB, RS-485
• Hard Drive: 1 x SATA HDD (up to 6 TB support)
• Power Supply: DC 12V / 1.5A
• Power Consumption: 4 W (without HDD)
• Chassis Size: 1U, 260 x 238 x 48 mm

This recorder is optimized for efficient video archiving with low space consumption thanks to support for modern compression algorithms, including H.265+ and AI Coding. The presence of 1 SATA interface allows connecting a drive up to 6 TB for long-term archive storage. In combination with 4 BNC inputs and support for 4+1 IP cameras, the device is ideal for retail stores, offices, small warehouses, and private properties.

Benefits of Use

• Hybrid Penta-brid architecture allows combining older analog systems and modern IP cameras.
• WizSense and AI Coding support enhance detection quality and reduce storage load.
• Compact 1U form factor and low power consumption make installation and operation economical.
• HDMI and VGA outputs provide convenient local high-resolution streaming.

If you need a reliable yet budget-friendly option for building or upgrading a video surveillance system, the Dahua DH-XVR4104HS-I offers an optimal set of features: 4-channel Penta-brid, 1080p/720p support, AI Coding/H.265+/H.265/H.264+, and convenient connection interfaces. Its dimensions of 260x238x48 mm and low power consumption make it suitable for rack or under-desk installation.
