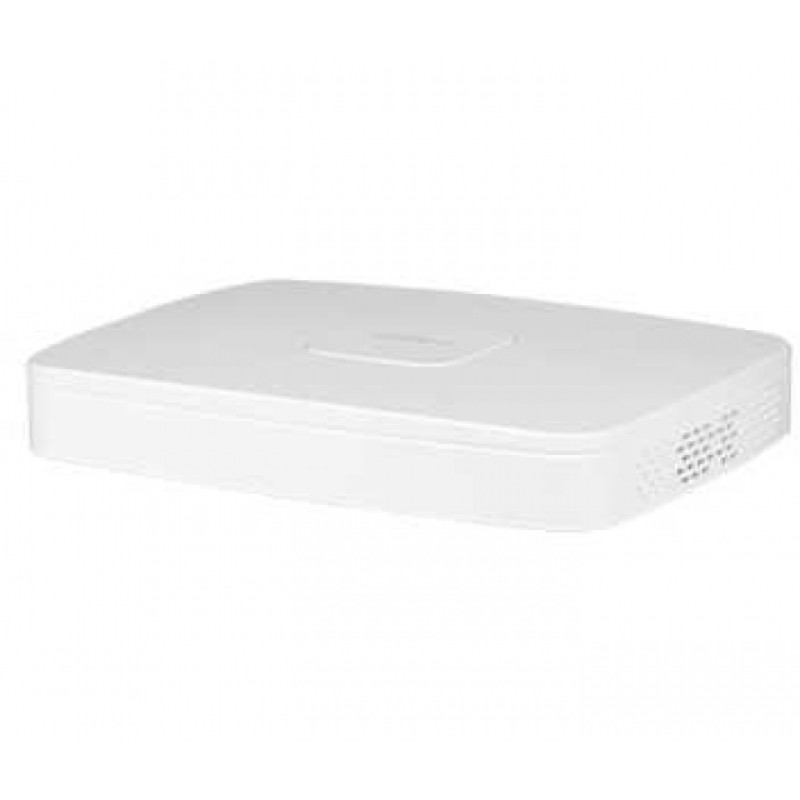

Dahua DH-XVR5108C-I3. 8-Channel Penta-brid 5M-N/1080p Smart 1U 1HDD WizSense
Dahua DH-XVR5108C-I3 — 8-Channel Penta-brid DVR with WizSense
Brand: Dahua. Category: Electronics > Video Surveillance > DVRs. The DH-XVR5108C-I3 model combines advanced WizSense AI algorithms and universal Penta-brid compatibility for flexible application in small and medium-sized surveillance systems.
Brief Overview
This 1U DVR supports up to 8 video channels, provides recording in 5M-N and 1080p resolutions, and allows connecting one hard drive (1 HDD) for archive storage. The device is optimized for efficient operation with H.265+/H.265/H.264+/H.264 compression, which reduces the volume of stored data without loss of video quality.
Key Features
- 8 video recording channels with Penta-brid support (five signal technologies).
- Perimeter protection: 1 channel with human and vehicle detection and search.
- Face detection: up to 8 records per second to enhance search efficiency and analytics.
- SMD (Smart Motion Detection) on 8 channels to reduce false alarms.
- 8 BNC inputs with support for 5MP, 4MP, and 1080p at 25 fps for each channel.
- Support for modern codecs: H.265+/H.265/H.264+/H.264 to save storage space.
- Interfaces: 1 HDMI for high-resolution monitor connection, 1 VGA for additional monitoring.
- Network connection: 1 RJ-45 port (100 MB) for stable video stream transmission.
- Storage: 1 SATA up to 10 TB for organizing video surveillance archives.
- Ports: 2 x USB 2.0 for backup and peripheral connection, 1 RS485 port for PTZ camera control.
Benefits for Business and Home
The Dahua DH-XVR5108C-I3 is suitable for shops, offices, warehouses, and private properties where intelligent event analysis and reliable video recording are required. WizSense provides intelligent behavior analysis in the surveillance area, allowing focus on important events and reducing time spent reviewing archives. Penta-brid compatibility enables gradual system upgrades while retaining existing cameras of various standards.
Technical Specifications
| Parameter | Description |
|---|---|
| Number of Channels | 8 |
| Analytics | Perimeter protection (1 channel), face detection (8/sec), SMD 8 channels |
| Video Inputs | 8 BNC (5MP, 4MP, 1080p 25 fps) |
| Codecs | H.265+/H.265/H.264+/H.264 |
| Video Outputs | 1 HDMI, 1 VGA |
| Network | 1 x RJ-45 (100 MB) |
| Storage | 1 x SATA up to 10 TB |
| USB | 2 x USB 2.0 |
| Control Interfaces | 1 x RS485 |
| Form Factor | 1U, 1 HDD, WizSense |
The Dahua DH-XVR5108C-I3 model is designed for those who value a balance between advanced analytics and ease of integration into existing video surveillance systems. It allows saving disk space thanks to advanced encoding, while simultaneously ensuring high recording quality and fast searching for necessary events using recognition and SMD functions.
