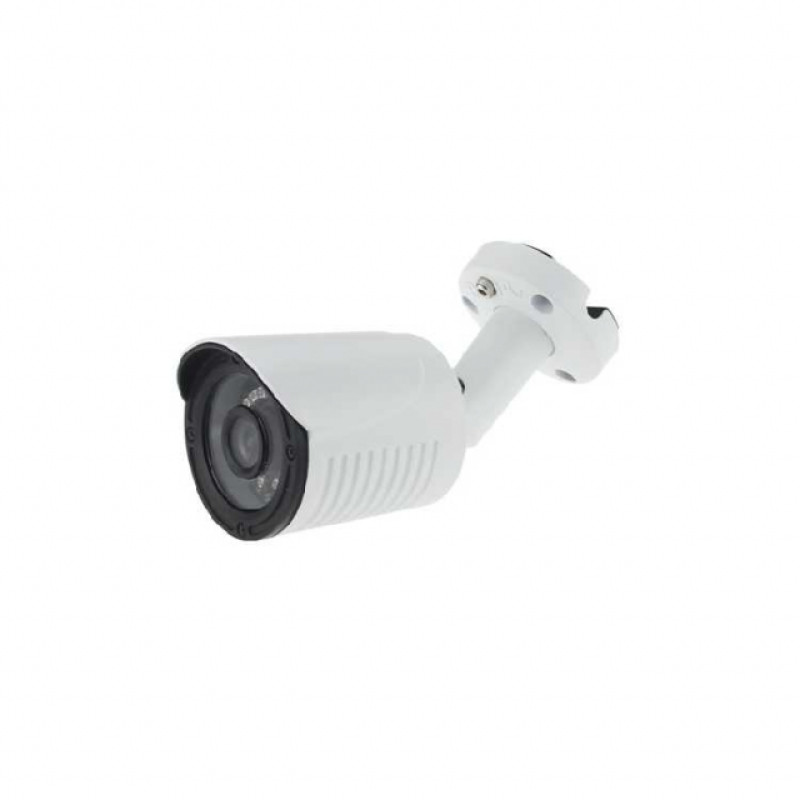

DigiGuard DG-2523P (3.6 mm). 2.1 MP AHD/CVI/TVI/CVBS Outdoor Bullet Camera

DigiGuard DG-2523P (3.6 mm) Video Camera

Brand: DigiGuard. Model: DG-2523P (3.6 mm). This is a 2.1 MP multi-format outdoor bullet video camera that combines a reliable housing for outdoor use and universal compatibility with various video surveillance systems. The device is designed for stable operation in challenging conditions and is suitable for installation on building facades, parking lots, industrial facilities, and residential areas.

Brief Description

The camera supports AHD/CVI/TVI/CVBS formats, making it compatible with most modern recorders and hybrid video surveillance systems. Optics: f=3.6 mm with a 90° viewing angle. Sensor: 2.1 MP, 1/2.9` F23. The device ensures operation in low-light conditions and features a 0 Lux mode with IR illumination for night vision.

Technical Specifications

• Resolution: 2.1 MP.
• Multi-format: AHD/CVI/TVI/CVBS.
• Optics: f=3.6 mm, viewing angle approximately 90°.
• Sensor: 1/2.9` F23.
• Night Vision: 0 Lux with IR illumination, IR range up to 20 m.
• Image Processing: DWDR (digital wide dynamic range), 3DNR (three-dimensional digital noise reduction), AWB (automatic white balance), AGC (automatic gain control), BLC (backlight compensation).
• Protection Class: IP66 (protection against dust and strong wind/rain) — suitable for outdoor use.
• Power Supply: DC 12V/5.
• Dimensions: 151x64x65.5 mm.

This model combines important features for high-quality video surveillance: multi-format compatibility allows the camera to be integrated into existing infrastructures without replacing cable lines or recorders; 3.6 mm optics provide a convenient balance between field of view and detail; digital image processing algorithms (DWDR, 3DNR, AWB, AGC, BLC) ensure a clear picture in complex lighting conditions.

Thanks to 20-meter IR illumination, the camera effectively records events in the dark, and the IP66 protection level guarantees reliable operation in case of occasional precipitation and dust. The device has compact dimensions of 151x64x65.5 mm and a convenient bullet housing for quick mounting on walls or poles. Power is supplied from a DC 12V/5 source, which meets standard installation requirements for outdoor cameras.

Where to Apply

Recommended for perimeter control, driveways, parking lots, shops, logistics zones, and other open areas. The DigiGuard DG-2523P camera will be a solution for those looking for a balance between cost-effectiveness and functionality: simple integration into existing systems, a protected housing, and high-quality night shooting.

If you are looking for a reliable outdoor bullet video camera with broad compatibility and a basic set of modern video algorithms, the DigiGuard DG-2523P (3.6 mm) is an excellent choice for private and commercial projects.
