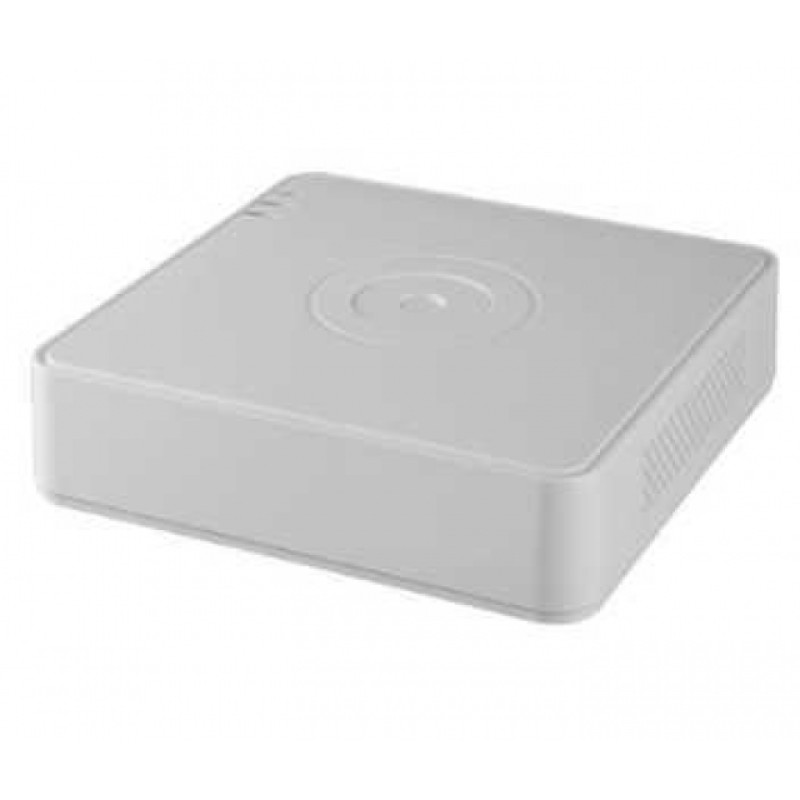

Hikvision iDS-7104HQHI-M1/S(E). 4-channel 1080P Mini 1U H.265 AcuSense DVR
Hikvision iDS-7104HQHI-M1/S(E) — 4-Channel 1080P Mini 1U H.265 AcuSense DVR
Brand: Hikvision. Category: Electronics > Video Surveillance > DVRs. Model: iDS-7104HQHI-M1/S(E). This compact 1U DVR is designed for reliable recording and intelligent video analysis in small and medium-sized video surveillance systems.
The device supports analog and hybrid configurations, providing flexible connectivity: 4+2 (4 BNC ports/6 virtual IP channels). Video encoding formats: H.265+/H.265/H.264+/H.264, and compatible video signals — HDCVI/AHD/TVI/CVBS. For TVI, recording is possible in modes up to 3K at 20 fps, 4MP, 1080p/720p at 25 fps.
| Parameter | Description |
|---|---|
| ID | 20134 |
| Model | Hikvision iDS-7104HQHI-M1/S(E) |
| Channels | 4+2 (4 BNC ports/6 virtual IP channels) |
| Codecs | H.265+/H.265/H.264+/H.264 |
| Supported formats | HDCVI/AHD/TVI/CVBS |
| TVI | 3K 20 fps, 4MP, 1080p/720p 25 fps |
| Decoding | 3K Lite 12fps, 4MP, 1080p 15fps, 720p/WD1/4CIF/VGA 20fps |
| Incoming bandwidth | 72 Mbps |
| Analytics | 2-channel perimeter protection, motion detection 2.0 (all analog channels), face detection |
| HDD | 1 HDD up to 10TB max |
Key Features
- Hybrid operation with analog and IP cameras: 4 BNC ports and up to 6 virtual IP channels.
- Efficient compression: H.265+ reduces network load and storage space compared to H.264.
- Support for modern analog standards: HDCVI, AHD, TVI, CVBS — compatibility with a wide range of cameras.
- High recording resolution for TVI: up to 3K and 4MP for detailed video.
- Intelligent analytics: perimeter protection, enhanced motion detection 2.0 on all analog channels, and face recognition to increase monitoring efficiency.
- Spacious local archive: one hard drive up to 10 TB for long-term storage of recordings.
Applications and Benefits
The Hikvision iDS-7104HQHI-M1/S(E) is ideal for shops, offices, small warehouses, and residential complexes where high-quality video recording and smart analytics are required. Thanks to H.265+ support, you get high quality with less bandwidth, and analytical functions help you react faster to incidents and reduce the time spent searching for important episodes in the archive. The compact 1U chassis facilitates installation in standard racks and does not take up much space visually.
When choosing a system, pay attention to camera compatibility with the signal format (HDCVI/AHD/TVI/CVBS) and the maximum incoming bandwidth — 72 Mbps, which determines the number of simultaneously recorded channels in high resolution. The presence of decoding for 3K Lite, 4MP, and 1080p ensures smooth viewing and playback of the archive.
This Hikvision recorder combines brand reliability and AcuSense intelligent capabilities, making it an excellent choice for those seeking a modern video surveillance system with analytics and efficient resource usage.
