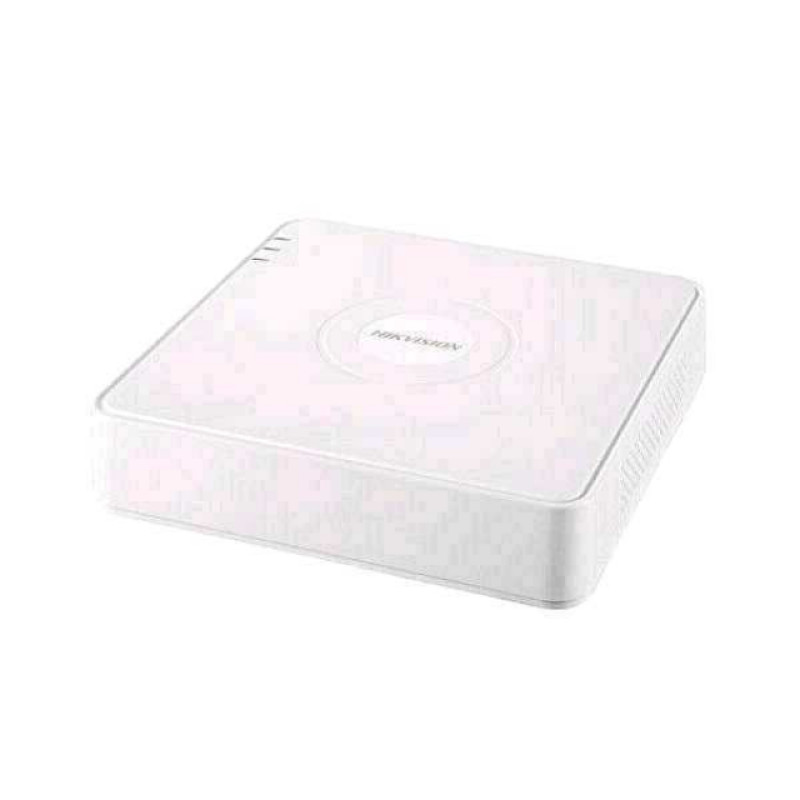

Hikvision iDS-7108HQHI-M1/S(E). 8-Channel 1080P Mini 1U H.265 AcuSense DVR
Hikvision iDS-7108HQHI-M1/S(E) — 8-channel 1080P Mini 1U H.265 AcuSense DVR
The professional Hikvision iDS-7108HQHI-M1/S(E) video recorder combines a compact Mini 1U form factor with advanced AcuSense technology, providing reliable recording and smart video analysis for small to medium-sized video surveillance systems. The device is designed by the Hikvision brand and is suitable for applications in commercial premises, offices, stores, and private properties where high-quality recording and intelligent analytics are required.
Key Features
- Supports 8+4 channels: 8 BNC ports and up to 12 virtual IP channels.
- Video codecs: H.265+/H.265/H.264+/H.264 for efficient compression and disk space saving.
- Analog format compatibility: HDCVI, AHD, TVI, CVBS.
- Supports high resolutions and recording speeds for TVI: 3K at 20 fps, 4MP, 1080p/720p at 25 fps.
- Live video decoding: 3K Lite 12 fps, 4MP, 1080p 15 fps, 70p/WD1/4CIF/VGA 20 fps.
- Input stream: up to 96 Mbps for recording from all channels.
- Video analytics: perimeter protection for 4 channels, advanced motion detection (version 2.0 for all analog channels), and face detection.
- Storage support: 1 hard disk drive (HDD) up to 10 TB max.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | Hikvision iDS-7108HQHI-M1/S(E) |
| Type | 8-channel 1080P Mini 1U DVR |
| Channels | 8 BNC ports / 12 virtual IP channels |
| Codecs | H.265+/H.265/H.264+/H.264 |
| Analog formats | HDCVI / AHD / TVI / CVBS |
| TVI | 3K 20 fps; 4MP; 1080p/720p 25 fps |
| Decoding | 3K Lite 12 fps; 4MP; 1080p 15 fps; 720p/WD1/4CIF/VGA 20 fps |
| Input stream | 96 Mbps |
| Analytics | Perimeter Protection (4 channels), Motion Detection 2.0 (all analog channels), Face Detection |
| HDD | 1 × up to 10 TB |
| Manufacturer | Hikvision |
| Category | Electronics > Video Surveillance > DVRs |
This DVR is ideal for systems where the integration of digital recording with existing analog cameras of various standards (HDCVI, AHD, TVI, CVBS) and the ability to expand with virtual IP channels are important. Thanks to hardware support for H.265+/H.265 and H.264+/H.264, optimal video stream compression is ensured without loss of quality, allowing more archives to be stored on a single hard drive up to 10 TB.
Intelligent AcuSense analytics enhance system efficiency: perimeter protection and motion detection functions reduce false alarms, and face detection allows for faster event identification. The total input stream of 96 Mbps guarantees stable recording from all connected cameras, and variable decoding modes allow for optimized playback and video viewing on a monitor or remotely.
Hikvision iDS-7108HQHI-M1/S(E) is a reliable and functional solution for those seeking a balance between compactness, analytics capabilities, and support for modern video standards.
