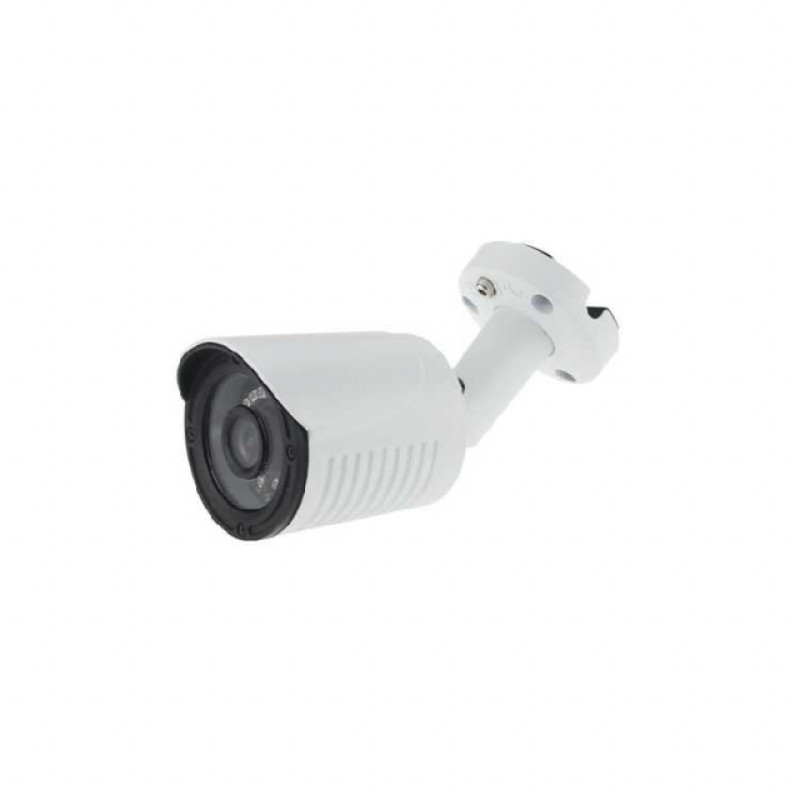

DigiGuard DG-2523P (2.8 mm). 2.1 MP AHD/CVI/TVI/CVBS Outdoor Bullet Camera
DigiGuard DG-2523P (2.8 mm) — Outdoor Bullet Camera for Reliable Video Surveillance
The DigiGuard DG-2523P model from the DigiGuard brand is a 2.1 MP multi-format outdoor bullet camera that supports AHD/CVI/TVI/CVBS formats and is designed for outdoor use thanks to its IP66 protection class. The camera is ideal for perimeter control, entrances, parking lots, and office facades.
Key Features
- Resolution: 2.1 MP.
- Multi-format: AHD/CVI/TVI/CVBS — universal compatibility with various recorders.
- Sensor / Lens: 1/2.9` F23, focal length f=2.8 mm, viewing angle 107°.
- Sensitivity: 0 Lux with IR illumination.
- IR Illumination: up to 20 m range for night vision.
- Image Processing: DWDR, 3DNR, AWB, AGC, BLC — enhanced details in challenging lighting.
- Housing Protection: IP66 — dustproof and moisture-resistant design for outdoor use.
- Power Supply: DC 12V.
- Dimensions: 151x64x65.5 mm.
Detailed Overview and Advantages
This bullet camera combines a compact body with powerful functionality. Thanks to its wide 107° viewing angle on the 2.8 mm lens, it provides a broad picture without significant distortion, minimizing "dead zones." Support for AHD/CVI/TVI/CVBS multi-formats makes the DG-2523P a universal solution for upgrading existing video surveillance systems or integrating with various DVR/HD recorders.
Image processing functions (DWDR for contrast balancing, 3DNR for noise reduction, AWB for white balance correction, AGC for automatic signal amplification, and BLC for strong backlight compensation) ensure a clear image under challenging lighting conditions. IR illumination with a range of up to 20 m guarantees object recognition at night, even in complete darkness (0 Lux with IR).
| Parameter | Value |
|---|---|
| Model | DigiGuard DG-2523P |
| Brand | DigiGuard |
| Type | Outdoor Bullet Camera |
| Resolution | 2.1 MP |
| Formats | AHD/CVI/TVI/CVBS |
| Sensor / Lens | 1/2.9` F23, f=2.8 mm (107° viewing angle) |
| Sensitivity | 0 Lux with IR |
| IR Illumination | 20 m |
| Image Processing | DWDR, 3DNR, AWB, AGC, BLC |
| Protection | IP66 |
| Power Supply | DC 12V |
| Dimensions | 151x64x65.5 mm |
This camera is an optimal choice for those seeking a reliable outdoor solution with broad video signal format compatibility and modern image processing algorithms. Installation and integration do not require complex settings: connect to 12V DC and a compatible recorder — and the system is ready to operate.
By ordering the DigiGuard DG-2523P, you get a combination of quality optics, modern image enhancement algorithms, and a protected housing for year-round outdoor operation.
