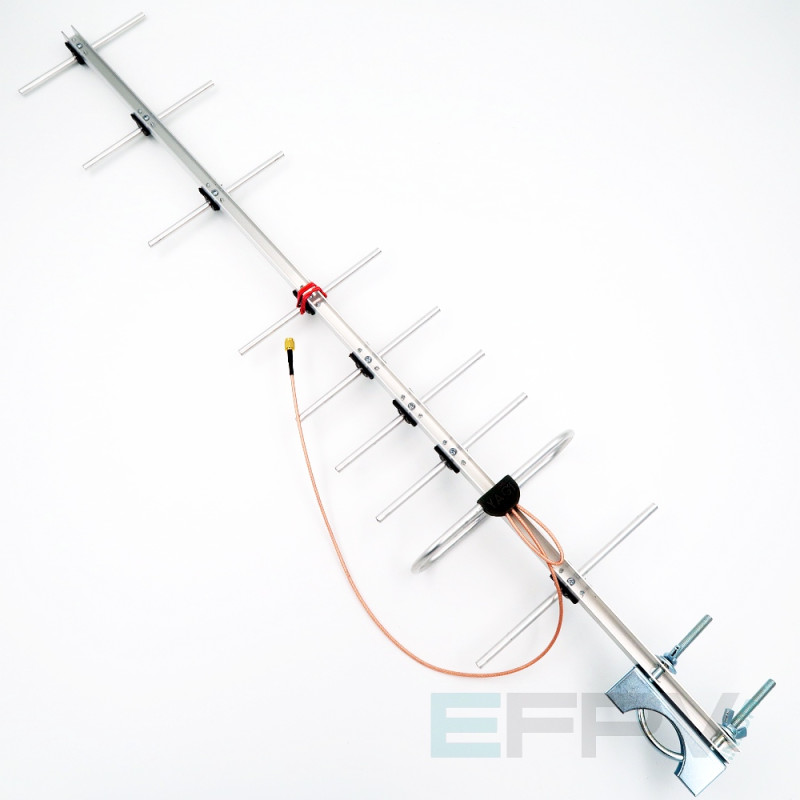

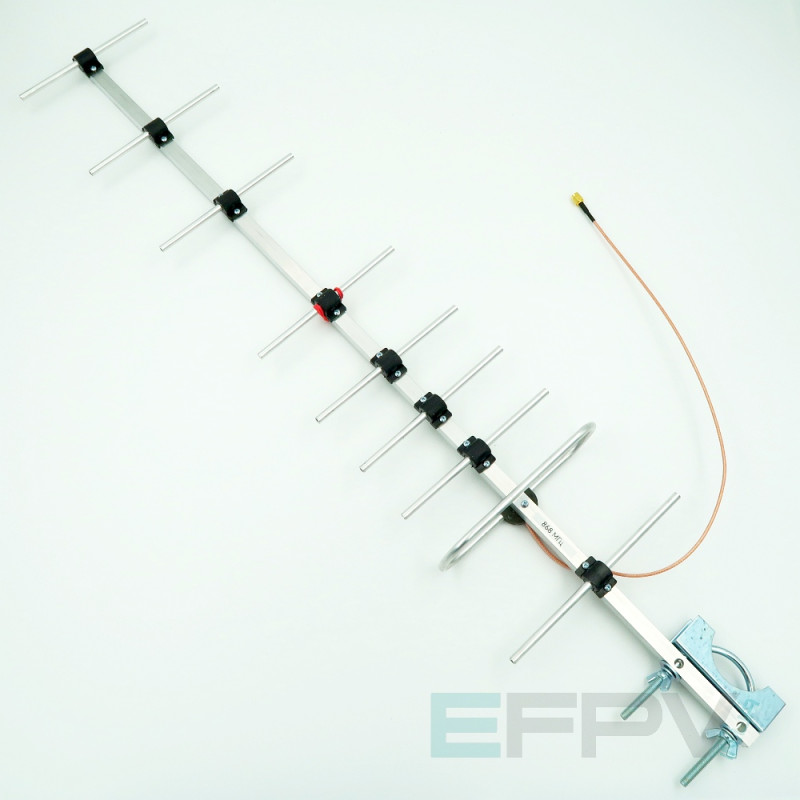

Yagi Antenna 868MHz — 9 sections, 13.4 dBi ()
This Yagi-type antenna from the manufacturer is a directional, high-efficiency design intended for signal reception and transmission amplification at 868 MHz. The "Yagi Antenna 868MHz 9 sections 13.4 dBi" model combines a narrow directional beam with high gain, making it an excellent choice for radio communication systems, IoT devices, industrial networks, and point-to-point connections between two nodes. Linear polarization and optimized director geometry reduce interference from the sides and rear, enhancing communication channel stability.
Where and for whom it is suitable
The antenna is ideal for mounting on base stations, for signal amplification in rural areas, and for organizing long communication lines and point-to-point connections. Its lightweight aluminum construction and standard SMA connector ensure easy installation and broad compatibility with various equipment.
Advantages and features
- High gain: 13.4 dBi — for increased communication range and quality.
- Operating frequency: 868 MHz — compatibility with many industrial solutions and IoT networks.
- Number of sections (directors): 9 — provides a narrow directional beam for point-to-point connections.
- Beam angle: 35° — optimal balance of range and focus.
- Polarization: linear — versatile for various use scenarios.
- Connector: SMA — convenient and common connection solution.
- Material: aluminum — lightweight, durable, and corrosion-resistant.
- Size: 798*171*56 mm — compact length for mounting on masts or brackets.

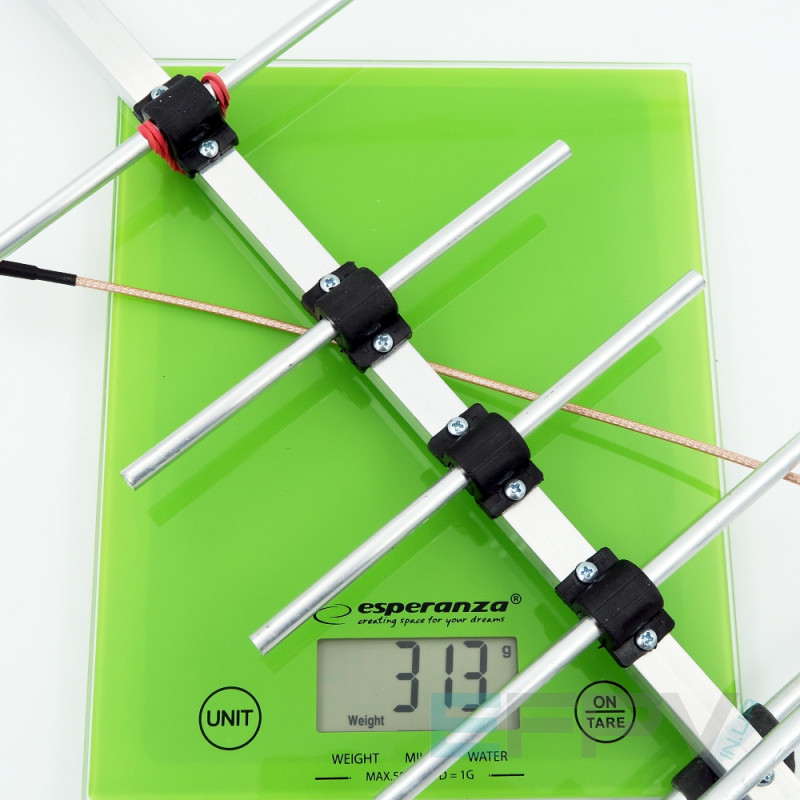

- Weight: 313 g — minimal load on mounts, easy installation.
Technical specifications
| Name | Parameter |
|---|---|
| Model | Yagi Antenna 868MHz 9 sections 13.4 dBi |
| Manufacturer | |
| Type | Antennas > Yagi Antennas |
| Frequency | 868 MHz |
| Polarization | linear |
| Number of sections (directors) | 9 |
| Beam angle | 35° |
| Connector | SMA |
| Material | aluminum |
| Gain | 13.4 dBi |
| Size | 798*171*56 mm |
| Weight | 313 g |
This antenna combines ease of installation and operation with high directivity and gain, making it a reliable solution for both professional installations and domestic tasks. Installation does not require complex operations — thanks to its well-thought-out design and standard SMA connector, adaptation to most devices is quick.
When choosing an antenna, pay attention to polarization matching and connector compatibility with your equipment. Additional recommendations for installation and operation can be obtained from customer support or in the full product description on the store's website.
