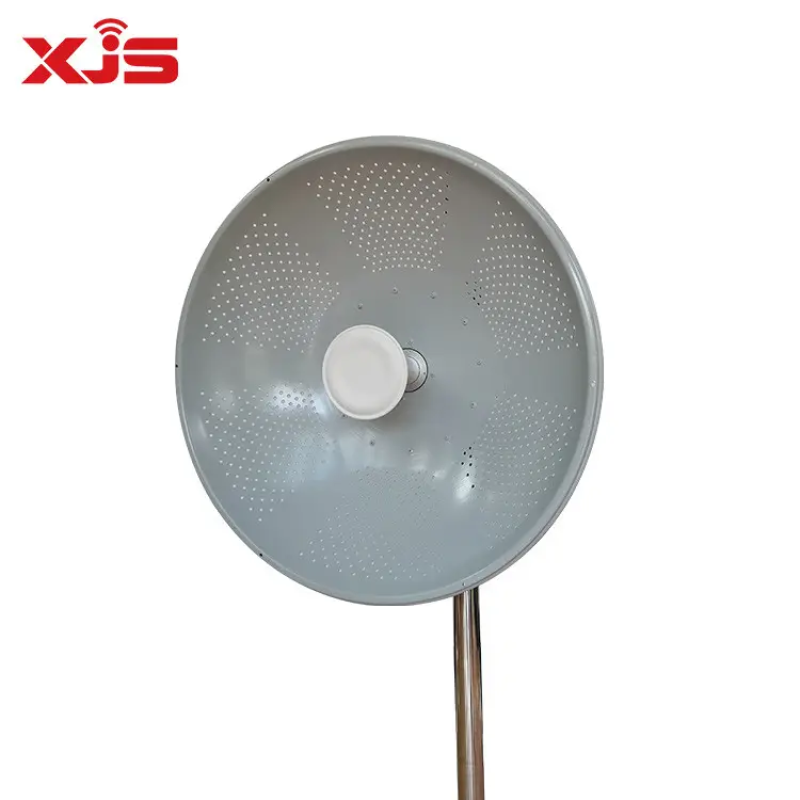

The WiMAX XJS-DP-D4865-33X MIMO WiFi 4.8-6.5GHz 33dBi parabolic antenna is a highly effective solution for establishing long-distance wireless networks. This antenna is designed to provide a stable and powerful signal in the 4.8-6.5 GHz frequency range, making it an ideal choice for creating reliable point-to-point connections up to 30 km away. With support for MIMO 2x2 technology, the antenna ensures high data transfer speeds and improved communication quality even in the presence of interference.
Using the WiMAX XJS-DP-D4865-33X MIMO WiFi parabolic antenna effectively solves the problem of long-distance data transmission, providing a reliable connection between remote objects. The compact design of the antenna, developed by XJS Technology, combines small dimensions with high signal gain. A wide operating frequency range guarantees stable operation in various conditions, and ±45° polarization minimizes signal loss during transmission.
Key features of the WiMAX XJS-DP-D4865-33X parabolic antenna
| Characteristic | Value |
|---|---|
| Frequency Range | 4800 - 6500 MHz |
| Gain | 33 dBi |

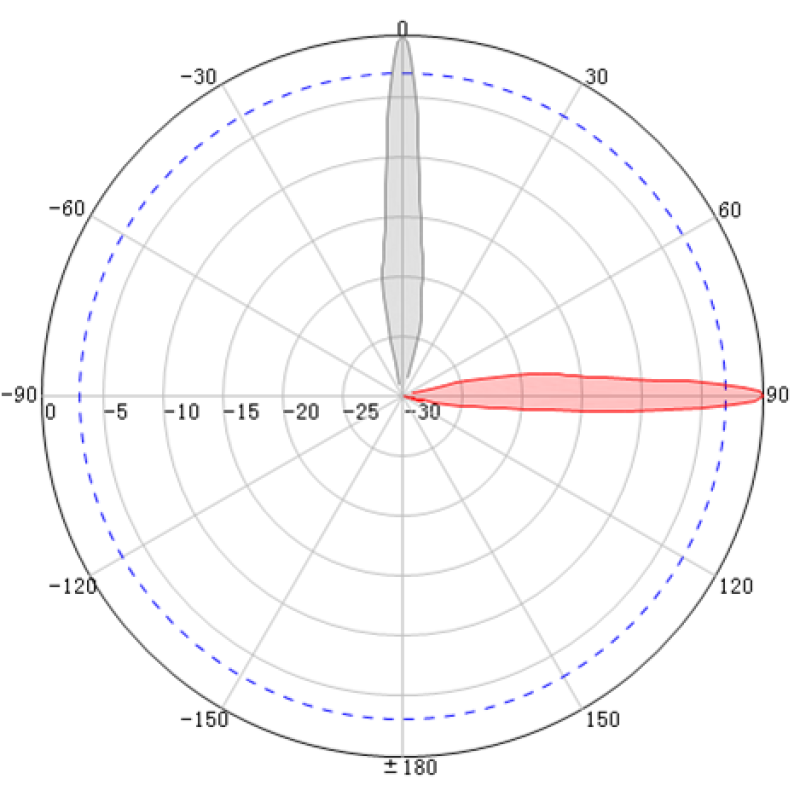

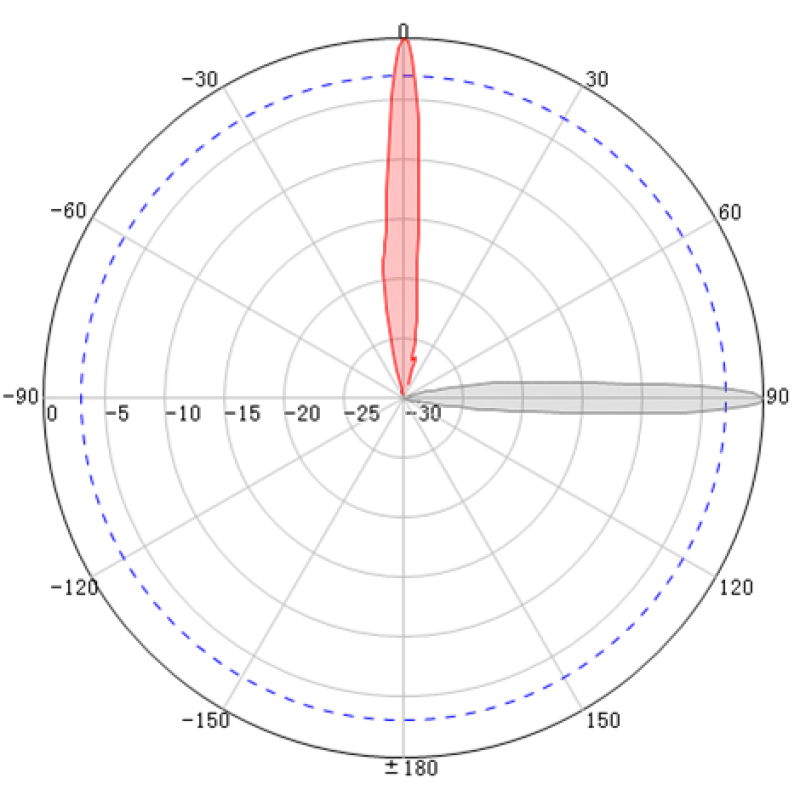

| Horizontal Beamwidth | 3.4° |
| Vertical Beamwidth | 3.4° |
| Polarization | ± 45° |
| F/B Ratio | ≥ 45 dB |
| VSWR | ≤ 1.8 |
| Impedance | 50 Ω |
| Connector | 2 x SMA |
| Max Power | 50 W |

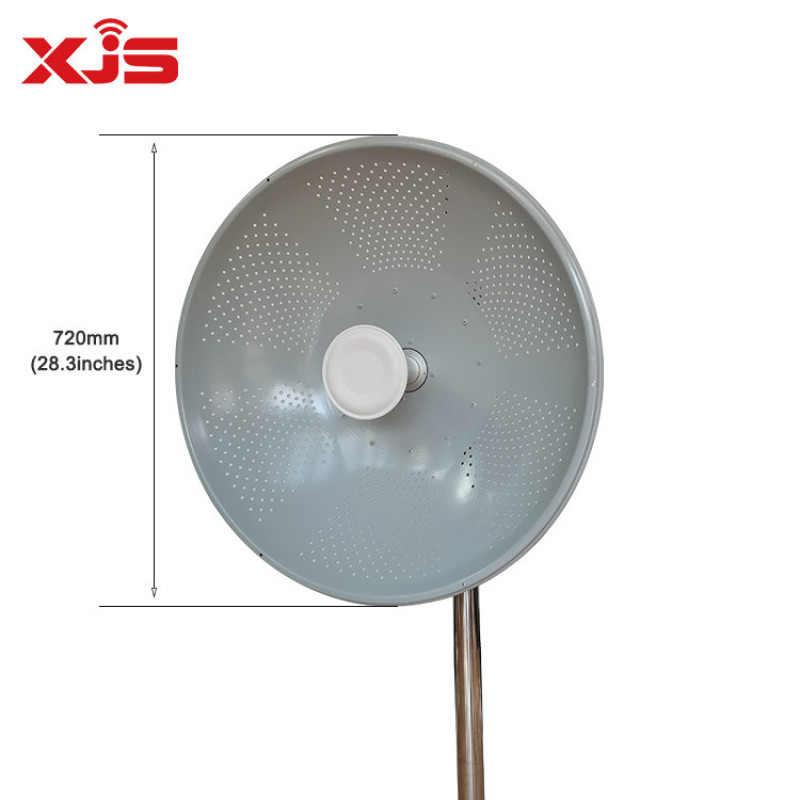

| Diameter | 720 mm |
| MIMO Support | 2x2 |
| Lightning Protection | DC Ground |
| Dimensions | 720 x 720 x 195 mm |
| Weight | 7 kg |
| Operating Temperature | -40℃ ～ +65℃ |
| Wind Load | 210 km/h |
| Mounting | Mast |
| Country of Origin | China |
Advantages of the WiMAX XJS-DP-D4865-33X antenna
- High antenna gain ensures signal transmission over significant distances.
- Support for MIMO 2x2 technology increases data transfer speed and antenna connection stability.
- Wide operating frequency range guarantees flexibility in use.
- Compact antenna size simplifies transportation and installation.
- High quality materials and antenna assembly ensure durability and reliability.
- Simple and convenient antenna installation thanks to its thoughtful design.
- The antenna is equipped with two high-quality low-loss RG141 cables, 40 cm long, with SMA connectors.
Features of the parabolic antenna

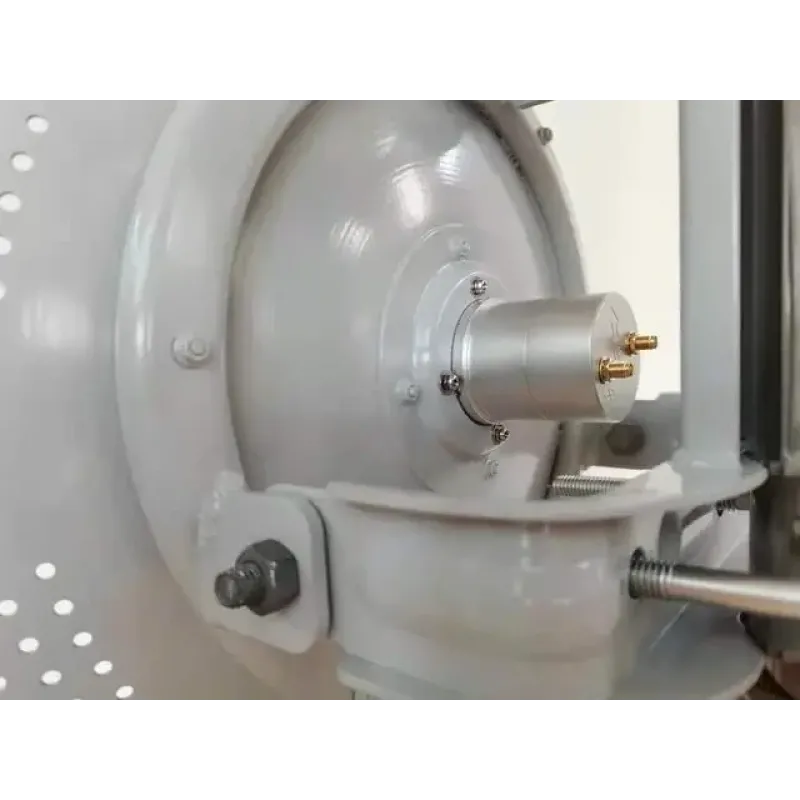

- The use of a pure copper SMA connector ensures minimal signal loss.
- ±45° polarization contributes to stable signal transmission without significant losses.
- The new antenna design from XJS Technology has reduced its size while maintaining high performance.
Useful functions of the XJS-DP-D4865-33X model
- MIMO (Multiple Input Multiple Output) support for increased bandwidth and connection reliability.
- High gain to ensure a stable signal over long distances.
- Wide frequency range for flexible use in various networks.
- Lightning protection for safe operation in adverse weather conditions.
Compatibility of the WiMAX parabolic antenna
- Compatible with equipment operating in the 4.8-6.5 GHz frequency range.
- Suitable for use with WiMAX and WiFi devices that support MIMO technology.
- Can be used with various types of radio systems to create wireless bridges.

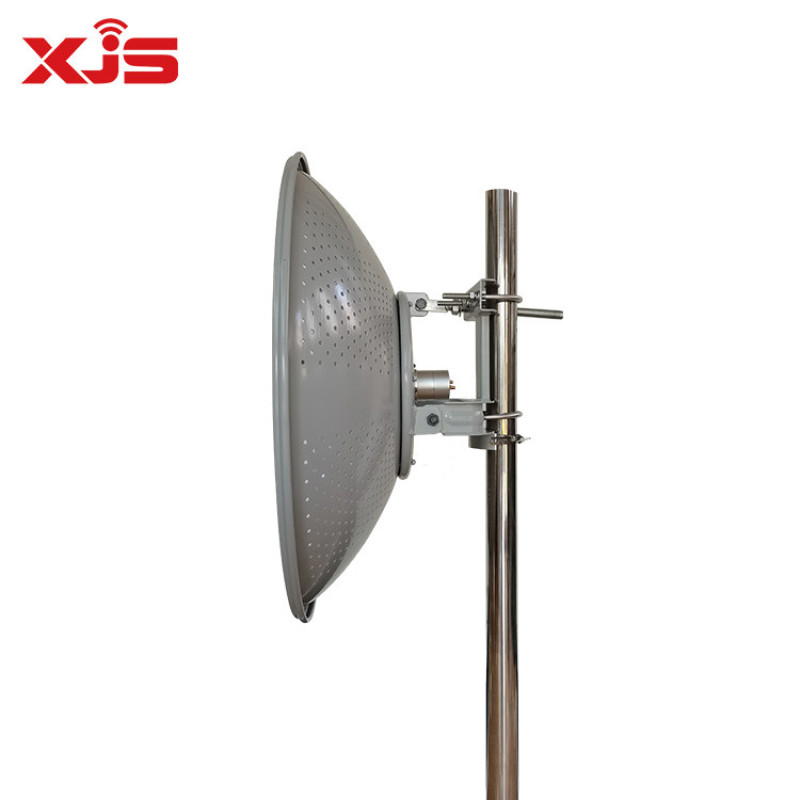

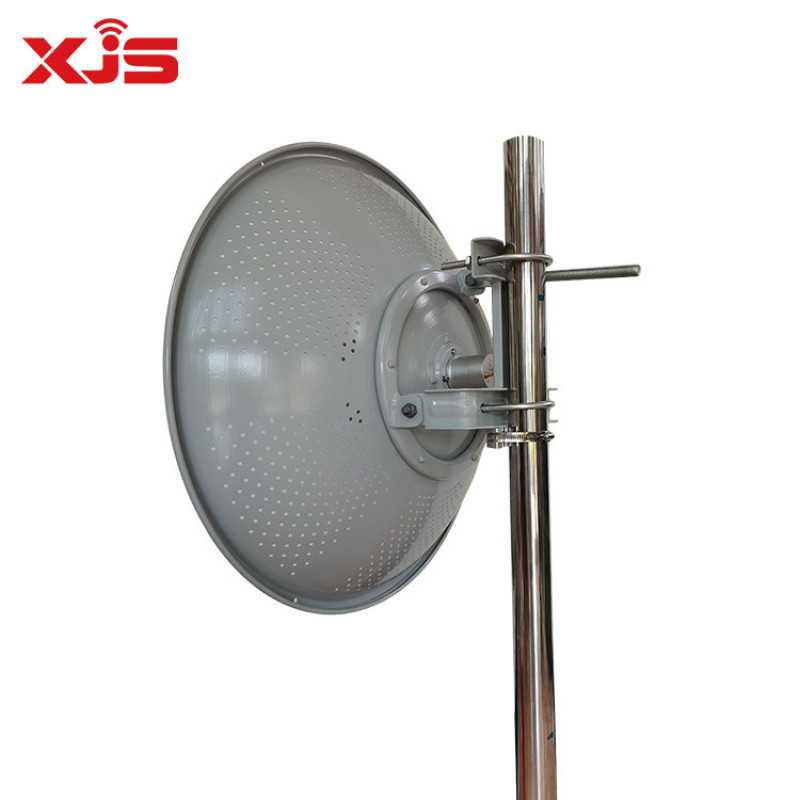

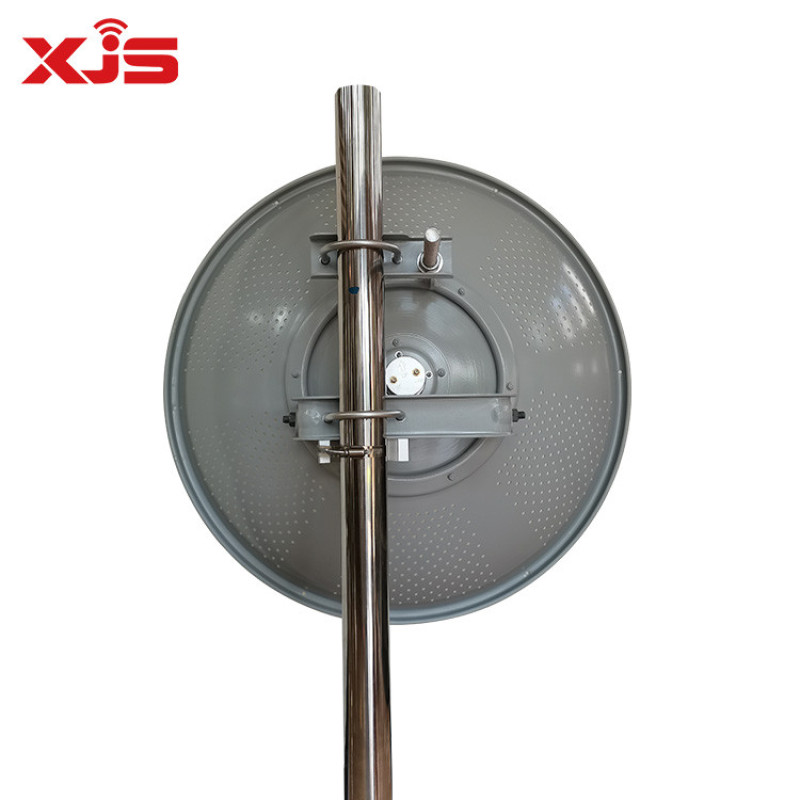

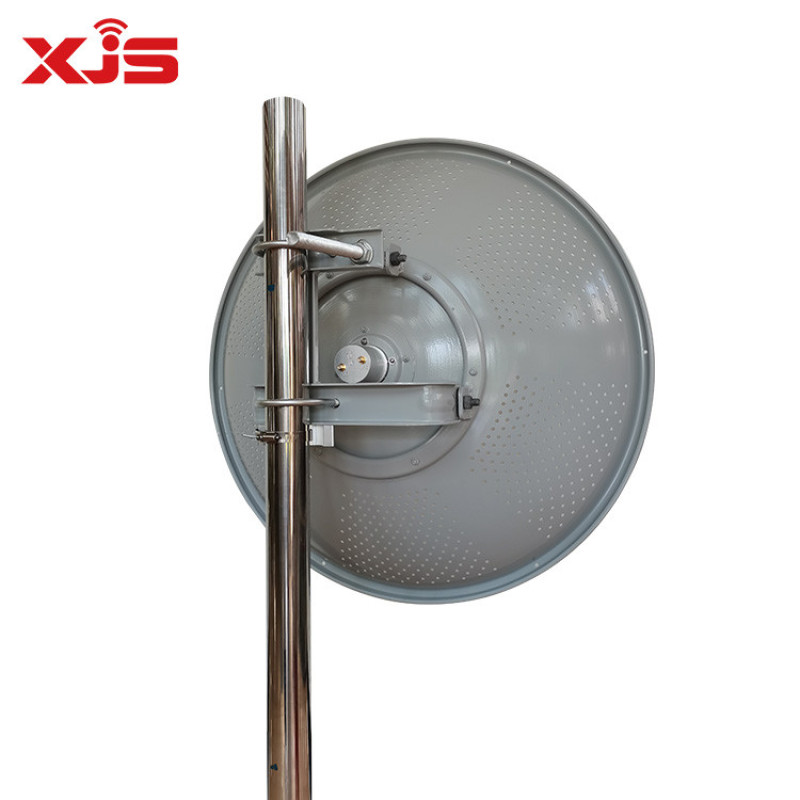

Antenna XJS-DP-D4865-33X Installation
The installation process for this antenna is designed for maximum convenience and speed. The kit includes all necessary fasteners for reliable mast mounting.
- Site preparation: Choose an antenna mounting location that provides a clear line of sight to the equipment with which communication will be established. Ensure that the mast or other support is strong and stable enough to hold the antenna under wind loads up to 210 km/h.
- Mounting assembly: Using the included components, assemble the mounting system according to the instructions. Ensure all parts are securely connected.
- Antenna installation on the mount: Attach the antenna to the assembled mount using the appropriate bolts and nuts. Do not overtighten the fasteners at this stage to allow for antenna position adjustment.
- Cable connection: Connect the RG141 cables with SMA connectors to the corresponding connectors on the antenna. Ensure a reliable connection. It is recommended to use sealing tape or other means to protect the connectors from moisture and corrosion.
- Antenna orientation: Point the antenna towards the base station or other antenna with which communication needs to be established. Precise adjustment of tilt and azimuth may be required to achieve maximum signal level. Use appropriate measuring equipment or rely on the signal level indicators of the receiving device.
- Position fixation: After achieving the optimal signal level, finally tighten all fastening elements to fix the antenna's position.
- Grounding: Connect the grounding wire to the dedicated contact on the antenna and to the grounding circuit to provide protection against static electricity and lightning.
Following these simple steps will ensure reliable and effective installation of the XJS-DP-D4865-33X antenna.

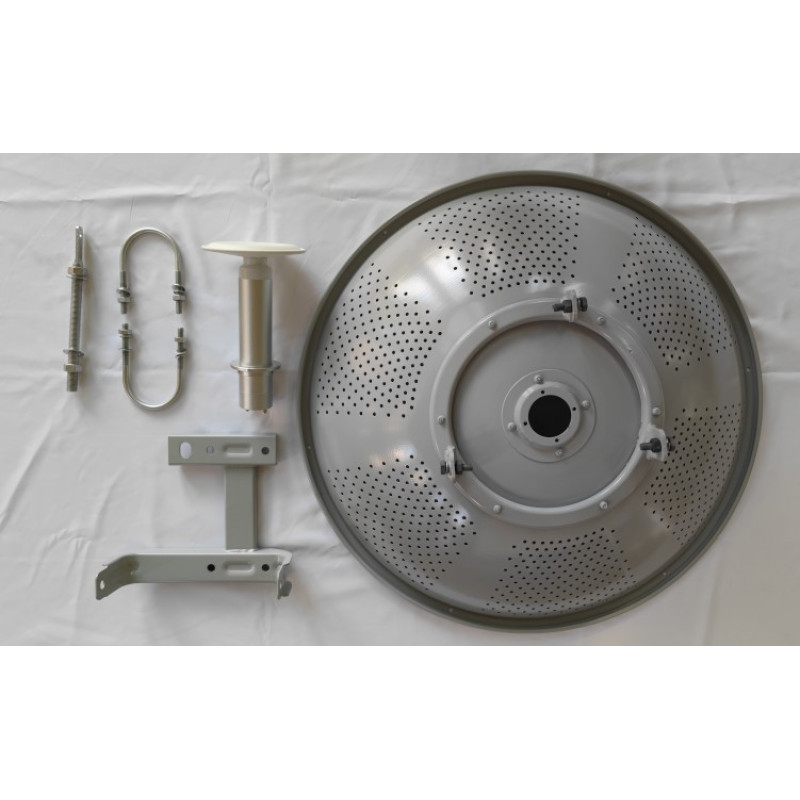

Package Contents
- WiMAX XJS-DP-D4865-33X MIMO WiFi parabolic antenna.
- Mounting kit for mast installation.
Antenna Packaging
The antenna is securely packed in a cardboard box to ensure safe transportation and storage.
Don't miss the opportunity to purchase this highly efficient WiMAX XJS-DP-D4865-33X MIMO WiFi parabolic antenna for creating reliable and high-speed wireless connections over long distances. Its advanced features and ease of installation will make it an indispensable solution for your business or personal needs. Ensure stable signal and high data transfer speeds today!
