Foxeer 4.9G Low Band Goggles Module Set KIT Video Transmission System

The Foxeer 4.9Ghz Low Band Goggles Module Set video transmission and reception kit is a ready-made solution from the Foxeer brand for FPV pilots who require reliable, stable, and high-quality video communication during aggressive flights, races, or long missions. The kit combines the Foxeer Reaper 2.5W Extreme VTx transmitter and the Foxeer Wildfire Dual Receiver dual-channel receiver module, ensuring operation across a wide frequency range and compatibility with most modular FPV goggles.

Brief Description and Advantages

This kit is designed for use in conditions where signal stability is critical: competitions, aggressive freestyle, and long-range flights. The Foxeer Reaper transmitter has a power output of 2.5W and supports the Tramp protocol for convenient output power control and channel configuration. The Wildfire Dual Receiver dual-channel receiver allows simultaneous operation with two signal sources or quick switching between channels — up to 72 available channels make the system maximally flexible for complex frequency environments. The kit includes special high-quality antennas: two Foxeer 4.9G Lollipop 4+ and one Foxeer 4.9G Echo 2 Patch, ensuring clear and stable video even in areas with high signal density. The included MMCX to SMA cable makes installation simple and fast, and LED indicators allow instant monitoring of the selected frequency and band during flight.

Main Characteristics

• Frequency Range: 4.9 GHz – 6 GHz
• Number of Channels: 40 (transmitter), 72 (receiver)
• Transmitter Power: 2.5 W (Foxeer Reaper 2.5W Extreme VTx)
• Protocol: Tramp
• Antennas Included: Foxeer 4.9G Lollipop 4+ (2 pcs.) and Foxeer 4.9G Echo 2 Patch (1 pc.)
• Connectors: MMCX to SMA (cable included)
• LED Indicators: frequency and band indication
• Brand: Foxeer
• Product Type: Drones and Quadcopters — FPV Parts and Transmitters

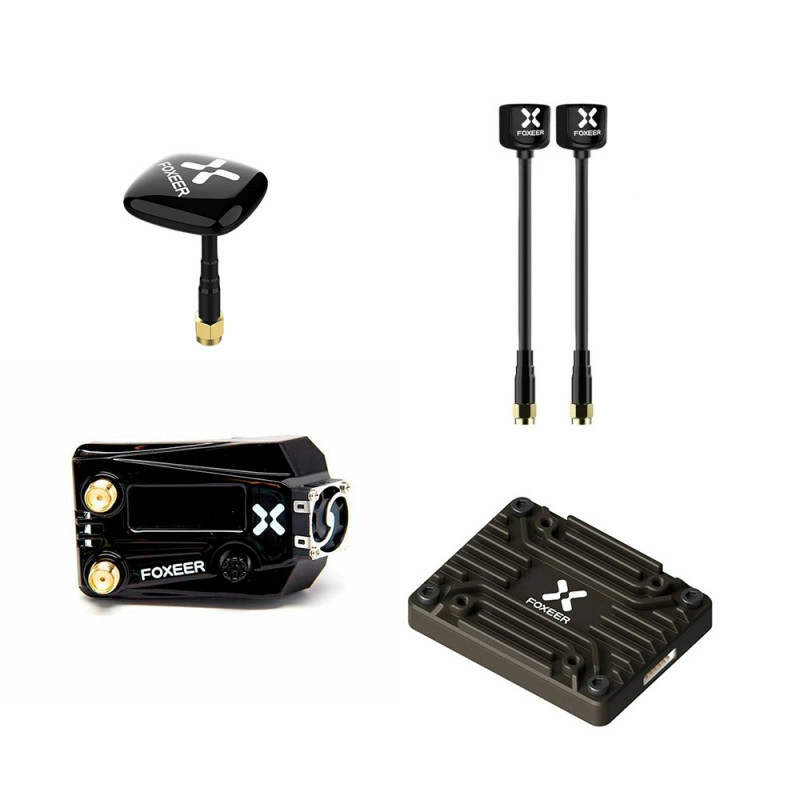

Package Contents

• 1 × Foxeer 4.9G Wildfire Dual Receiver Goggles Module
• 1 × Foxeer Reaper 2.5W Extreme VTx Transmitter
• 2 × Foxeer Lollipop 4+ Antennas
• 1 × Foxeer Echo 2 Patch Antenna
• 1 × MMCX to SMA Cable

The kit is compatible with most FPV goggles that support modular receiver installation and provides a clear connection and setup interface. The use of a dual-channel receiver along with a powerful 2.5W transmitter offers advantages in terms of redundant channels, quick switching of signal sources, and increased transmission stability in complex frequency environments. The included Foxeer Lollipop 4+ and Echo 2 Patch antennas provide an optimal balance between coverage range and directionality, and the MMCX–SMA cable allows easy integration of modules with goggles or external antenna systems.

2.5W Reaper VTx Frequency Table

Foxeer Wildfire Dual Receiver Frequency Table
