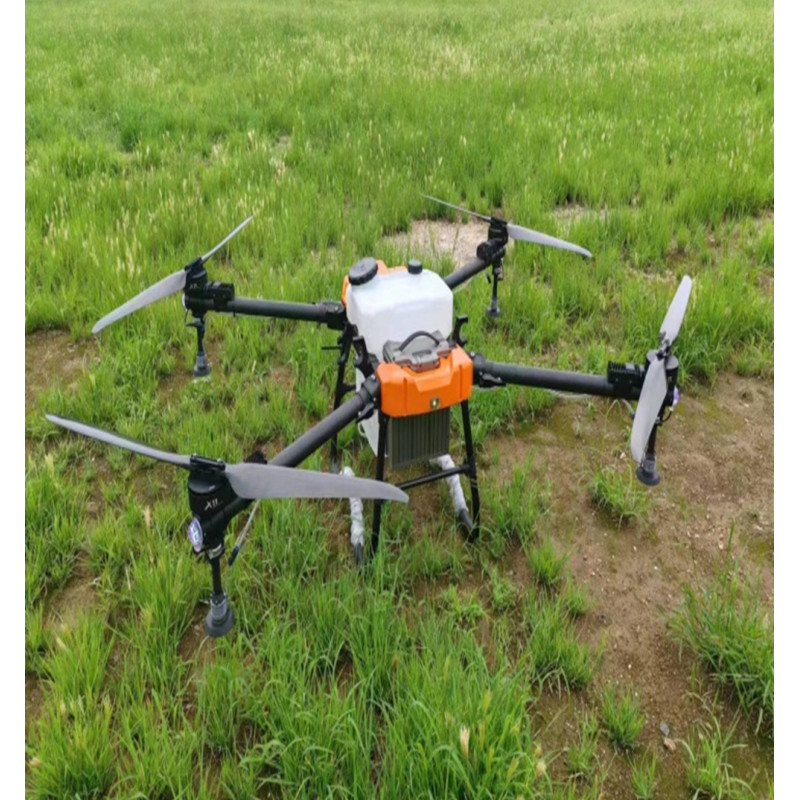

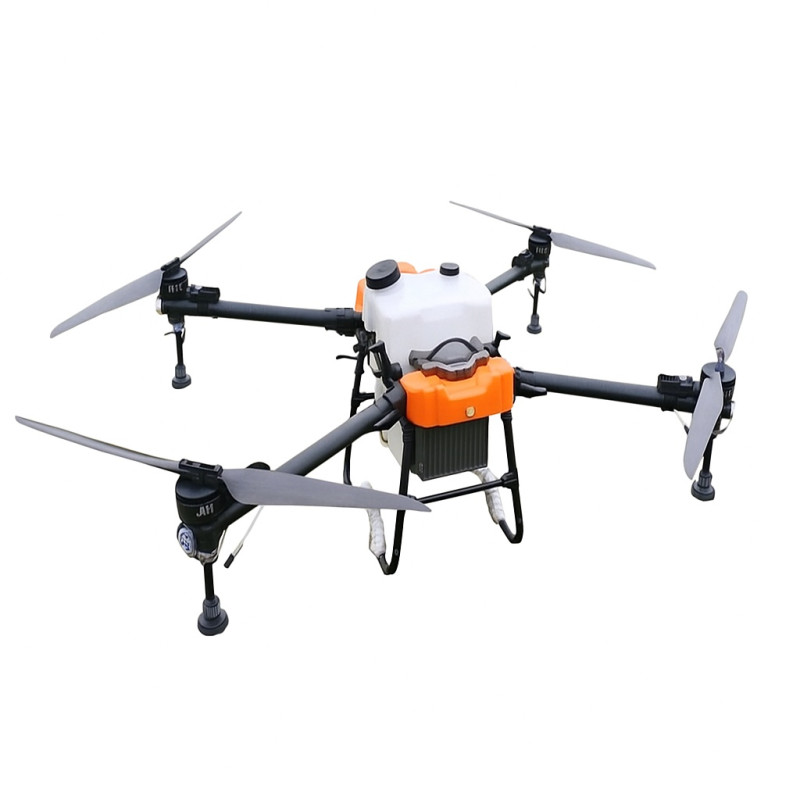

Agro-drone FPVXSF JK4-50 50L Plant Protection UAV

Brand: FPVXSF. Product ID: 10851. The FPVXSF JK4-50 agro-drone is a professional unmanned aerial vehicle for plant protection with a 50L tank and a 50kg payload. Delivery time is 15 to 30 days. This agro-drone is designed for intensive agricultural techniques: spraying, fertilization, and other field operations with high productivity and reliability. Product category: Drones, EW, Drone Detectors, Components > Drones and Quadcopters > Agro-drones.

Advantages and Purpose

The FPVXSF JK4-50 is ideal for large farms, service companies, and agricultural contractors who need a fast, autonomous, and scalable solution for field treatment. Its modular design, optional modules, and powerful battery allow the drone to be adapted to specific tasks and operating conditions.

Product Features:

• Fully autonomous operation with autonomous route planning.
• Night flight function for operations at any time of day.
• 50mm carbon arm ensures strength and lightweight construction.
• High drop resistance and waterproof body design.
• Payload — 50 kg; maximum takeoff weight — 90 kg.
• Tilt-folding for convenient transport, minimal dimensions after folding.
• Basic spray width — 15 m, maximum — 20 m; spray productivity 8–16 L/min.
• 18S 30000 mAh battery (high-voltage version) powers the propulsion system.
• 4 aerosol nozzles with 16 L/min productivity and excellent atomization.
• Remote control with a bright 5.5-inch screen for convenient monitoring and control.
• Brushless waterproof pump and ESC; modular design for quick maintenance.

Technical Specifications:

• Material: aviation carbon + aviation aluminum.
• Chassis span: 2170 mm.
• Folded size: 1100×850×850 mm.
• Maximum takeoff weight: 90 kg.
• Maximum payload: 50 kg.
• Drone weight: 26.7 kg.
• Tank volume: 50 L.
• Flight height: ≤ 20 m.
• Flight radius: ≤ 5000 m.
• Flight time: 10–20 min.
• Flight speed: 1–12 m/s.
• Motor lifespan: ≥ 100,000 hours.
• Frame lifespan: ≥ 10 years.
• Spray width: 7–9 m (typical), basic 15 m, maximum 20 m.
• Propellers: foldable, 48".
• Operating time at full load: 7–10 min.
• Hovering: in any position.
• Spray productivity: 8–16 L/min; spraying system: high-speed aerosol nozzle.
• Treatment efficiency: ≤ 1500 mu/day.
• Permissible wind speed for takeoff/landing: ≤ 7 levels.
• Battery: 18S30000 mAh.
• Flight stability: √√√.
• Fall protection: √√√.

Flight Functions:

• Automatic point setting and automatic return.
• Automatic obstacle avoidance, obstacle avoidance radar (optional).
• Return on signal loss and low battery.
• AB point work memory, breakpoint memory, autonomous route planning.
• Continued spraying after stopping; automatic altitude setting.
• GPS system, ground station, video transmission.
• Flight modes: manual, intelligent, fully automatic; beyond visual line of sight operation.
• Wave radar (optional).

Package Contents:

• Basic kit:
  • JK4‑50 drone (X13 power unit) — 1 pc.
  • 18S30000 mAh battery — 1 pc.
  • Charger — 1 pc.
  • Refueling station — 1 pc (for an additional fee, please check the price with the manager).
  • Spreader (50 L) — 1 pc (for an additional fee, please check the price with the manager).
• Optional modules (for an additional fee, please check the price with the manager):
  • Obstacle avoidance radar — 1 pc.
  • CANHUB — 1 pc.
  • Ground simulation radar — 1 pc.
  • Aerosol nozzles Pro ×2 — 1 set.

The FPVXSF JK4‑50 agro-drone is designed for efficient operation in field conditions: it combines a robust aviation-grade construction, powerful electronics, a high-performance spraying system, and intelligent control modes. This makes it an optimal choice for those who value precision, speed, and reliability in agriculture.
