Product Code: FA101-44389-101
In Stock
7 043 грн.
Buy this product in 1 click:
Main specifications
Aggregated tractor power, hp: 12-25
Blade thickness, mm: 4.0
Frame size, mm: 50 x 70
Frame thickness, mm: 3.0
Jamming width, mm: 400
All specifications
We will deliver this product:
Payment
Description

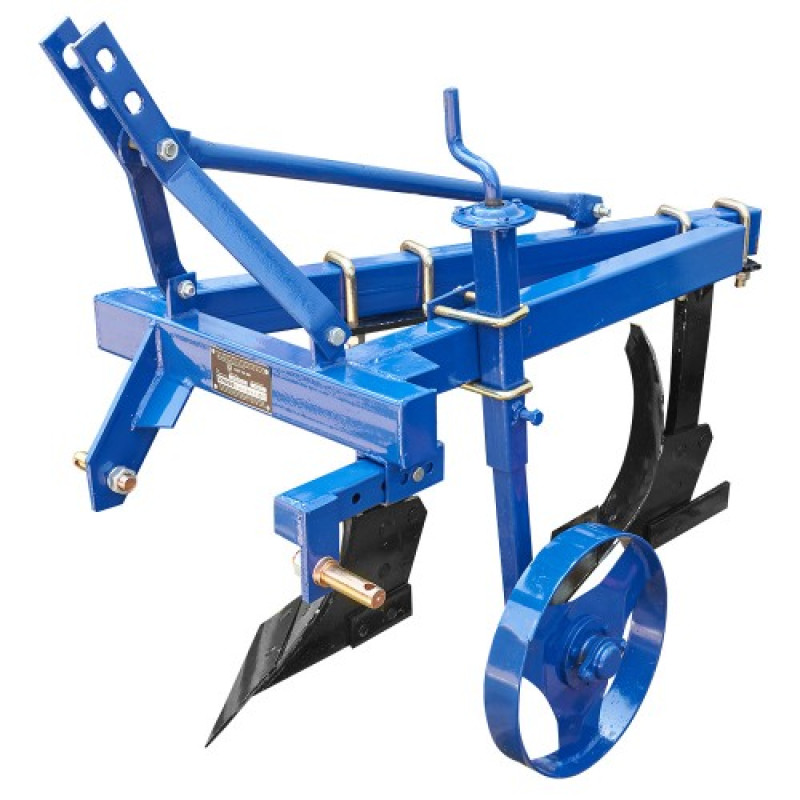

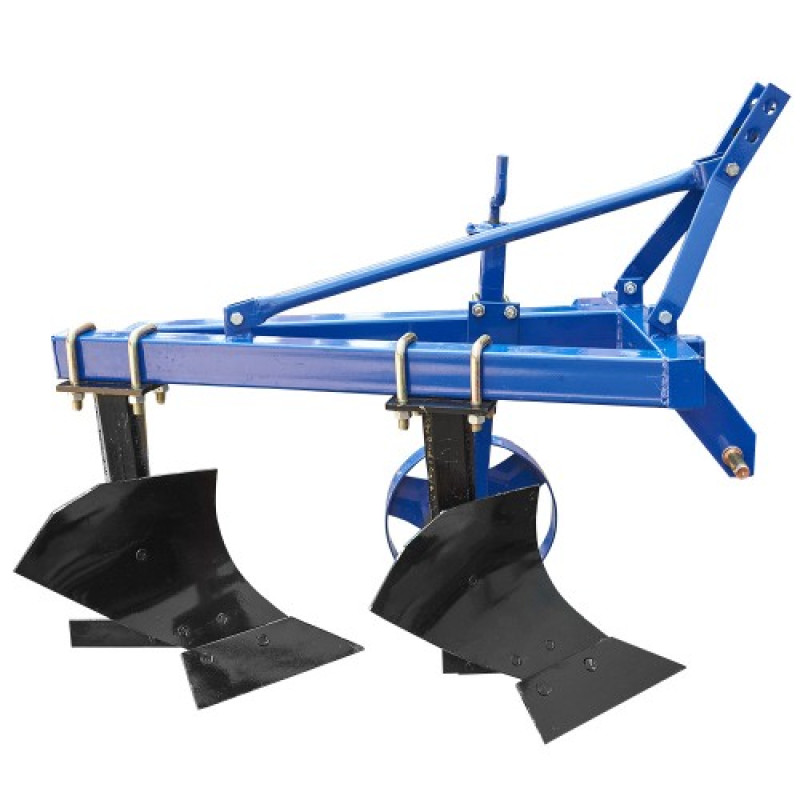

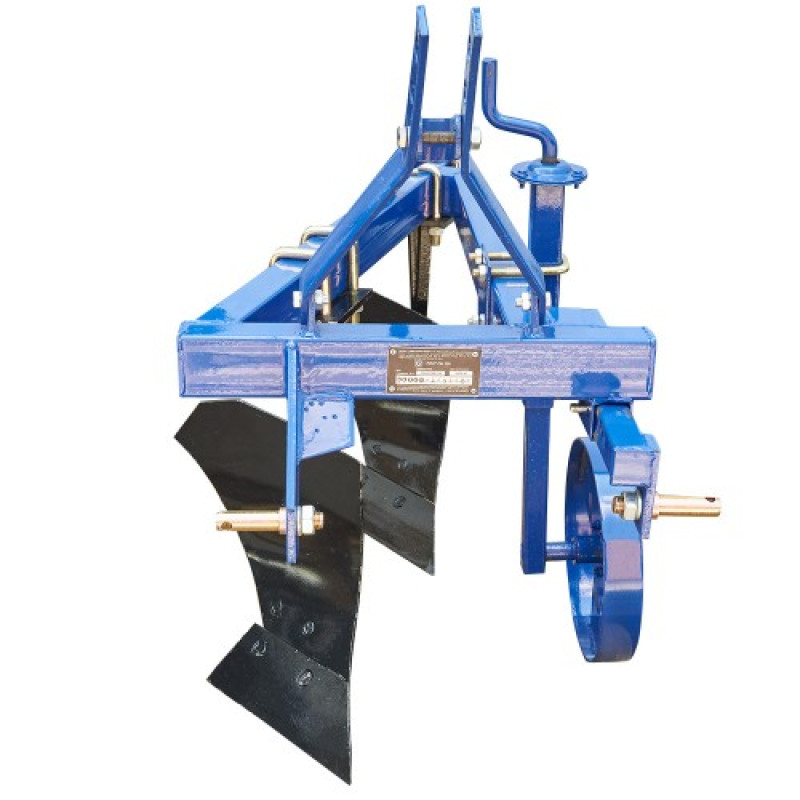

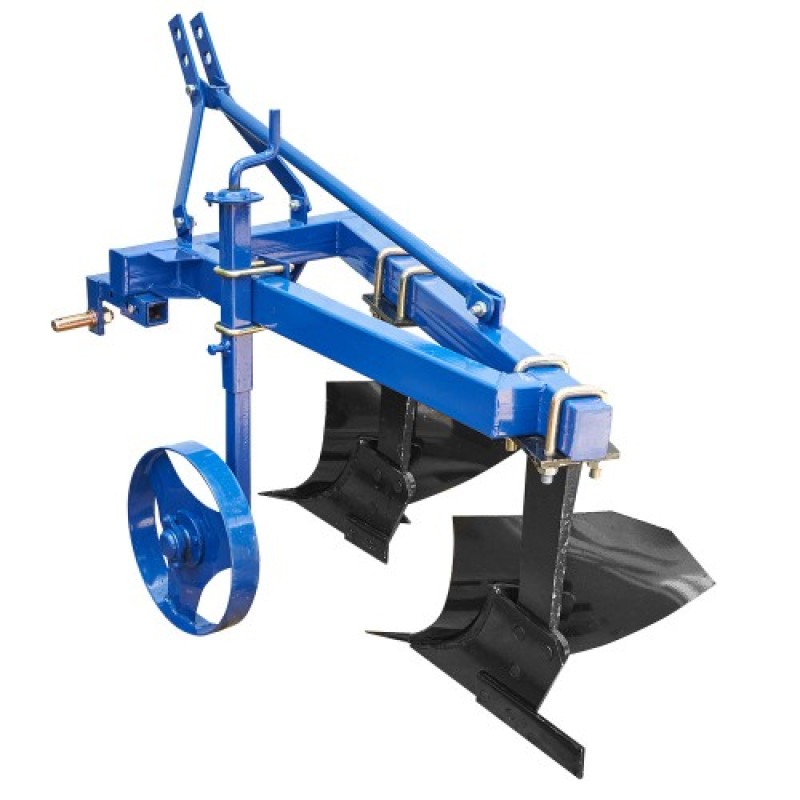

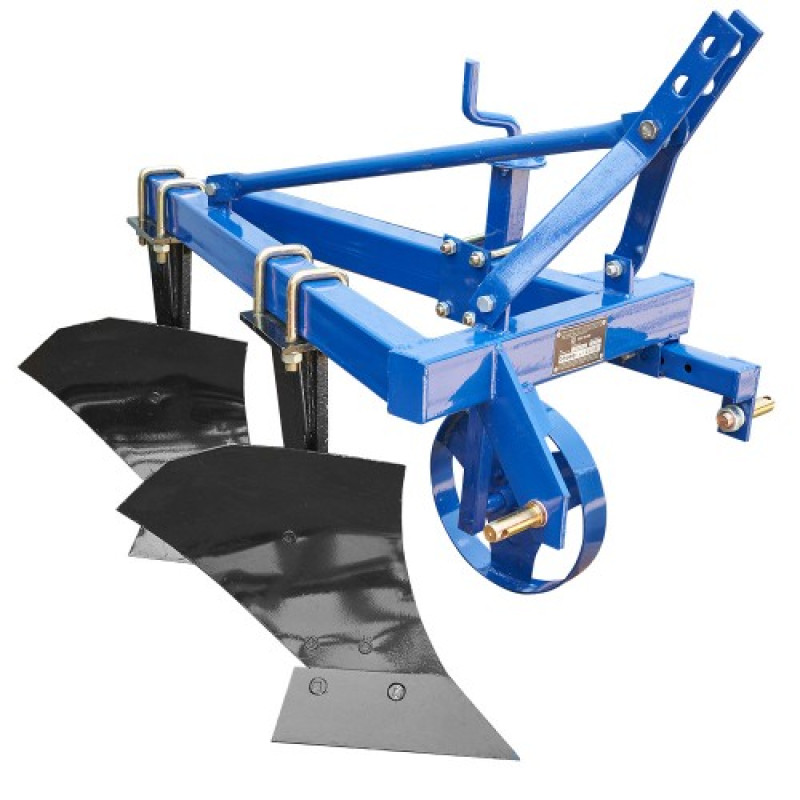

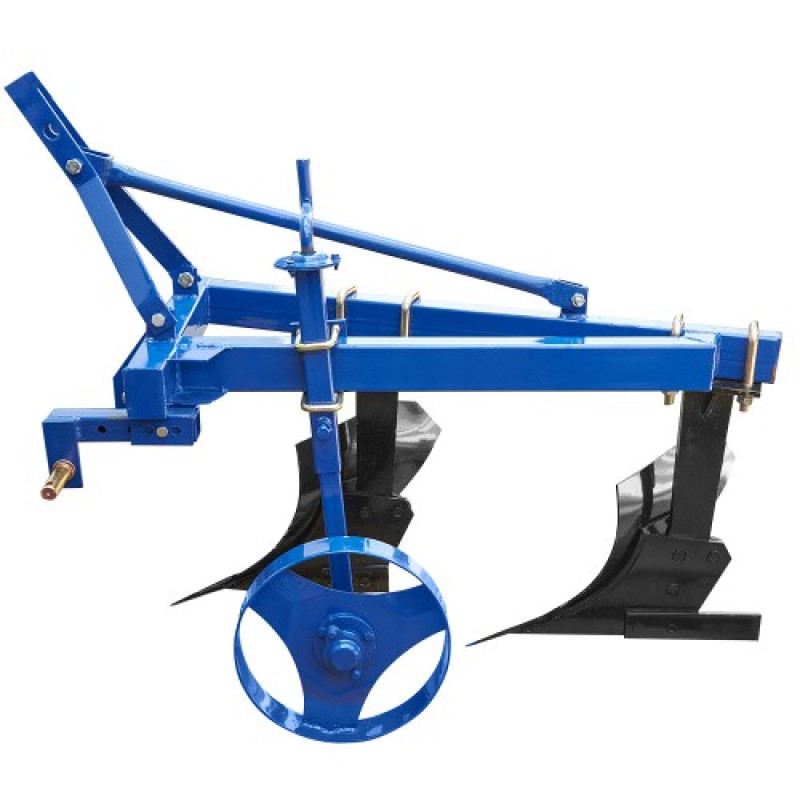

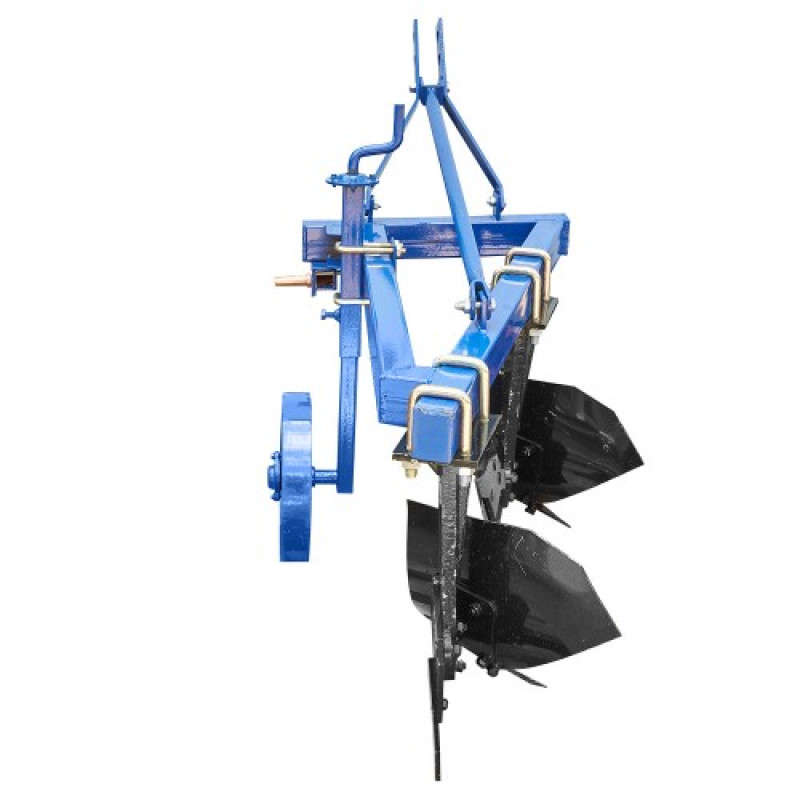

Description of the PN 220 two-furrow tractor plow:

A lightweight, general-purpose two-furrow moldboard plow that performs classic moldboard plowing of soil free of stones and flagstone, breaking it up and mixing it to increase homogeneity and improve structure, burying fertilizers, sprouted weeds, crop residues, and other plant matter to a great depth. It can be used with tractors and mini-tractors with a power output of 12 hp or more, equipped with a standard 3-point hitch system. The frame is welded from rectangular tubing. Plowing depth is adjusted using a screw pair and a support wheel.

The PN-220 plow can be purchased throughout Ukraine through our official representatives, or ordered via the special feedback form in the "Contacts" section. This attachment comes with a 1-year warranty.

Specifications
Aggregated tractor power, hp 12-25
Blade thickness, mm 4.0
Frame size, mm 50 x 70
Frame thickness, mm 3.0
Jamming width, mm 400
Number of cases, pcs. 2
Plowshare thickness, mm 6.0
Post thickness without reinforcement, mm 18
Processing depth, mm up to 200
Reinforcement of the Mast is
Type Hinged
Weight, kg 53
