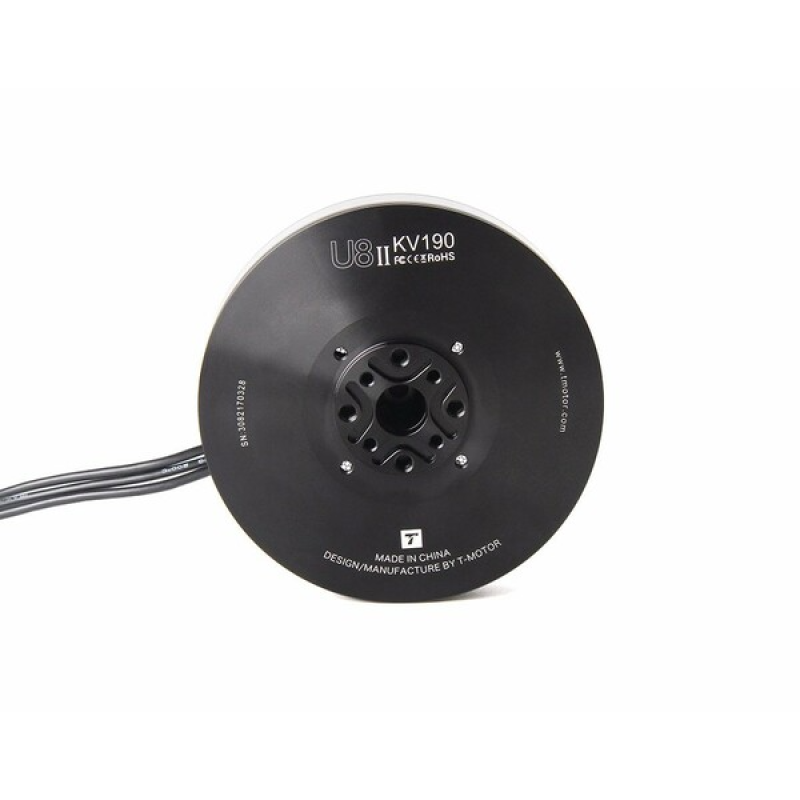

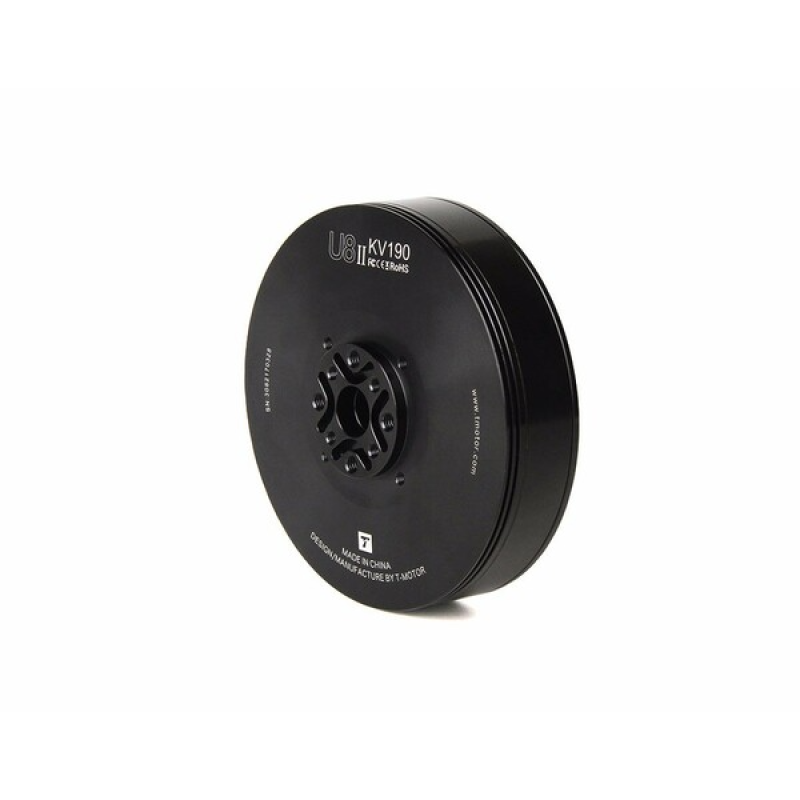

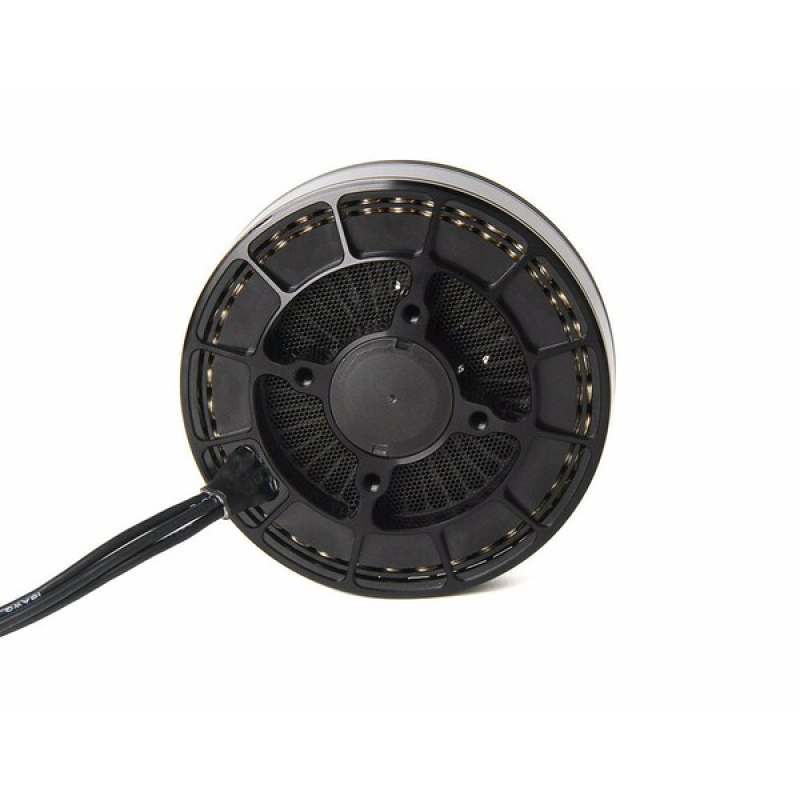

T-motor U8 II KV190 Motor
Model: T-Motor U8 II KV190. Manufacturer: T-Motor. A powerful and reliable U-Efficiency series brushless electric motor designed for multi-copters and heavy copter platforms requiring high thrust and efficiency.
This motor is presented as an Outrunner with a 36N42P configuration, ensuring high efficiency and stable operation under heavy loads. The recommended power mode is — 6S (supply voltage 22.2 V), which allows achieving a maximum continuous power of 1048.8 W.
Key Features
| Parameter | Value |
|---|---|
| Manufacturer | T-Motor |
| Model | U8II |
| Series | U-Efficiency |
| Type | Brushless Electric Motor |
| Kind | Outrunner |
| Purpose | Multicopters |
| KV | 190 |
| Max. Thrust | 6761 – 7334 g |
| Supply Voltage | 22.2 V |
| Rated Current | 5.5 A |
| Peak Current | 43.7 A |
| Max. Continuous Current | 38.7 A |
| Max. Continuous Power | 1048.8 W |
| Configuration | 36N42P |
| Wire Length | 90 mm |
| Motor Mount | 36×36 mm |
| Recommended Propellers | 28-29″ |
| Dimensions | 87.1×87.1×29.1 mm |
| Weight | 277 g |
Description and Application
The T-motor U8 II KV190 motor combines high thrust with economical power consumption, making it an excellent choice for heavy multicopters and platforms where payload capacity and flight stability are crucial. Thanks to its low KV (190), the motor works well with large 28-29″ propellers, providing optimal torque and lift.
Electrical Parameters and Operation
With a recommended power supply of 22.2 V and a rated current of 5.5 A, the motor demonstrates high efficiency. Peak current values up to 43.7 A and a maximum continuous current of 38.7 A allow it to withstand sudden loads during maneuvers. The maximum continuous power of 1048.8 W guarantees reliable operation under heavy loads for extended periods.
Package Contents
- Motor – 1 pc.

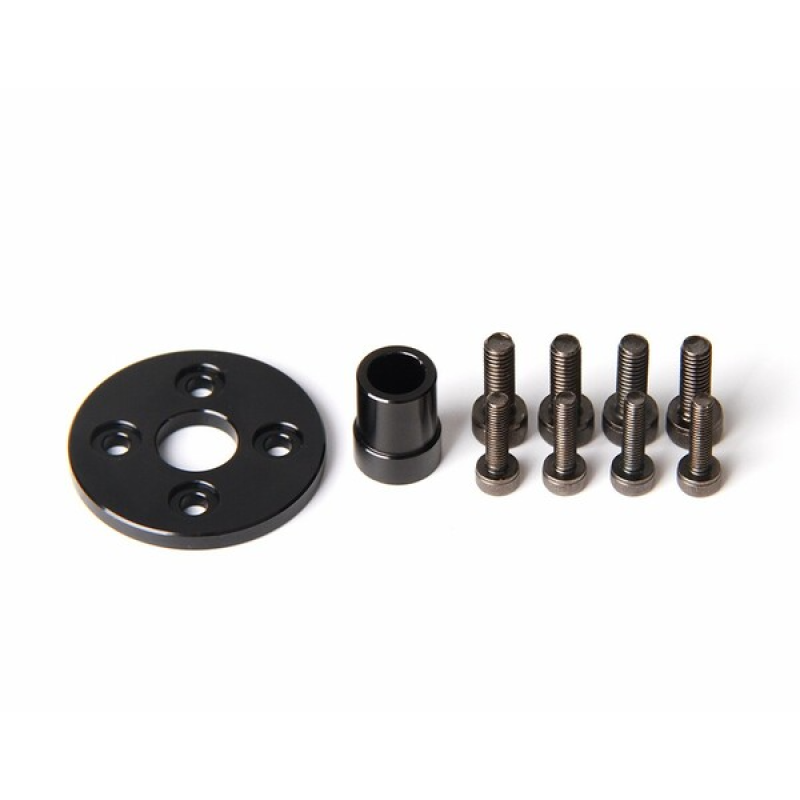

- Accessory pack (clip, bushing, fasteners) – 1 pc.
This kit is ready for installation on multi-motor platforms with 36×36 mm mounting; the 90 mm wire length ensures convenient connection to speed controllers. The motor's dimensions of 87.1×87.1×29.1 mm and weight of 277 g make it relatively compact for its thrust category.
Advantages of the U8 II KV190 model: high thrust of 6761–7334 g, optimal operation with large propellers, reliable design, and T-Motor quality. This motor is suitable for professional drones requiring payload capacity and flight stability.
If you are looking for a powerful motor for serious multicopter projects, the T-motor U8 II KV190 is one of the best options in its category.
