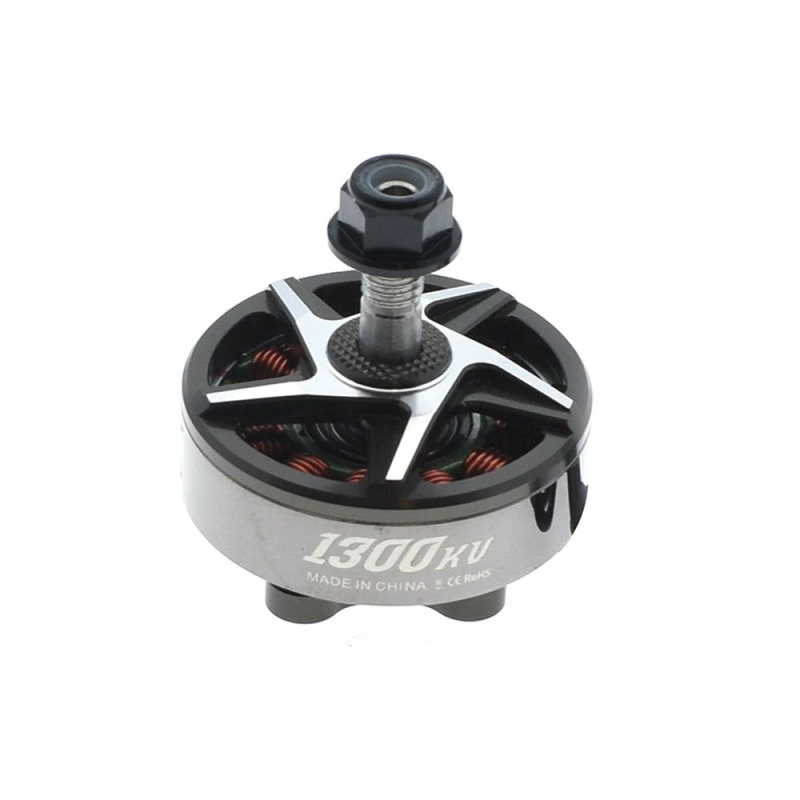

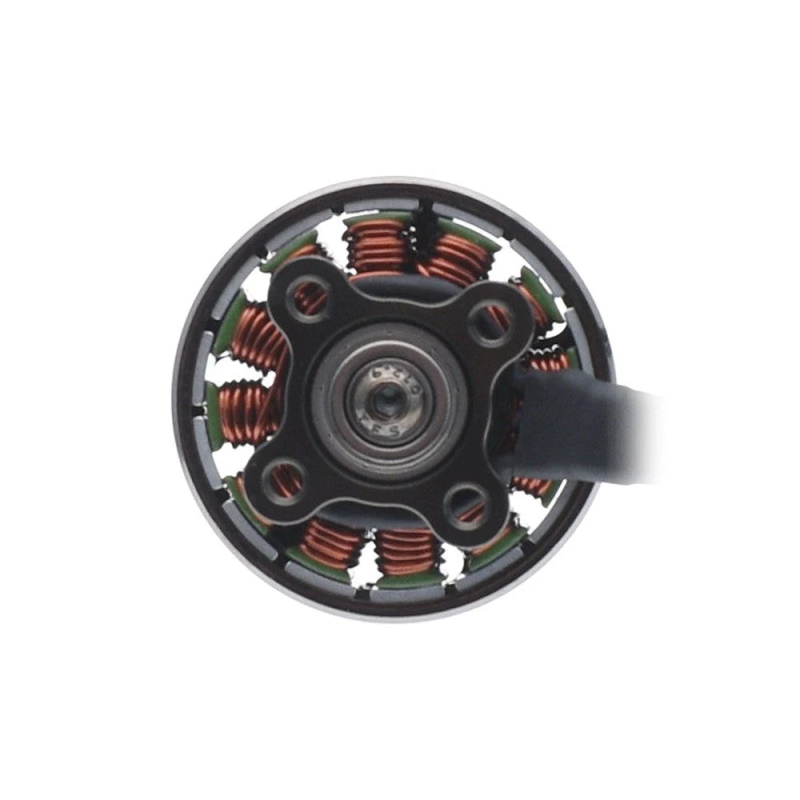

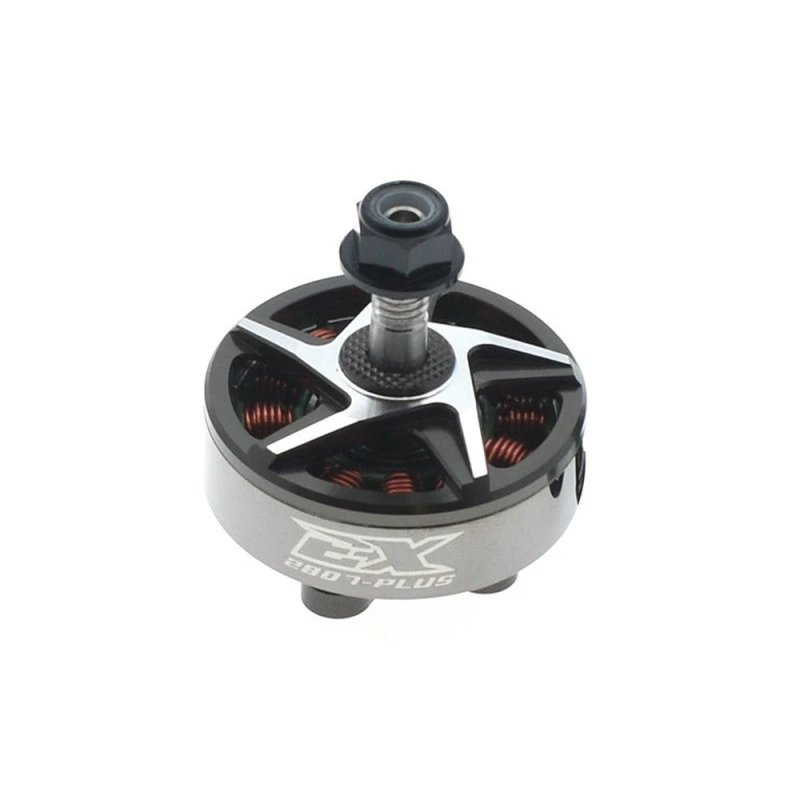

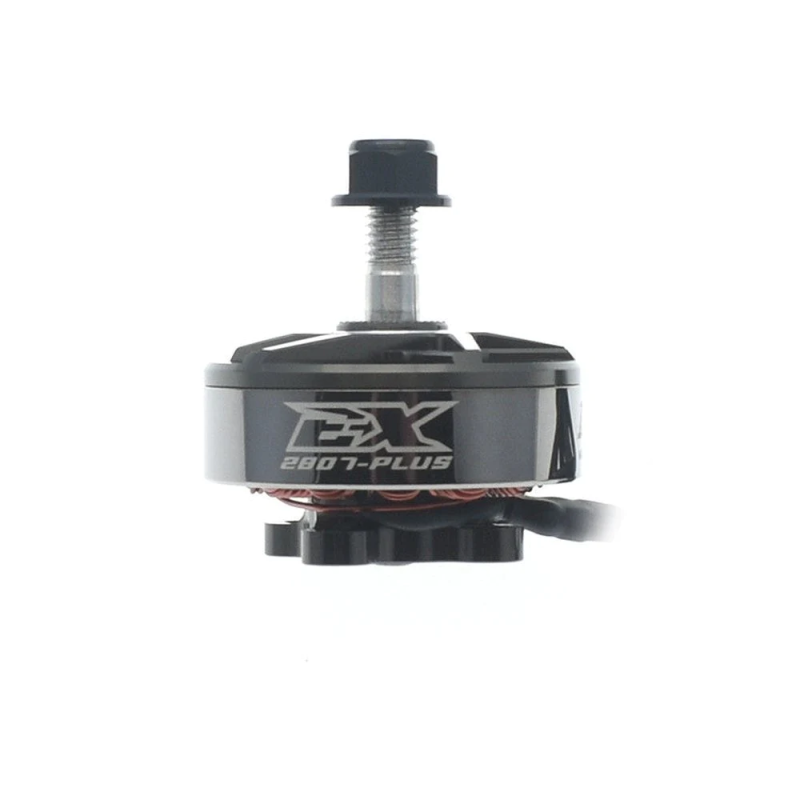

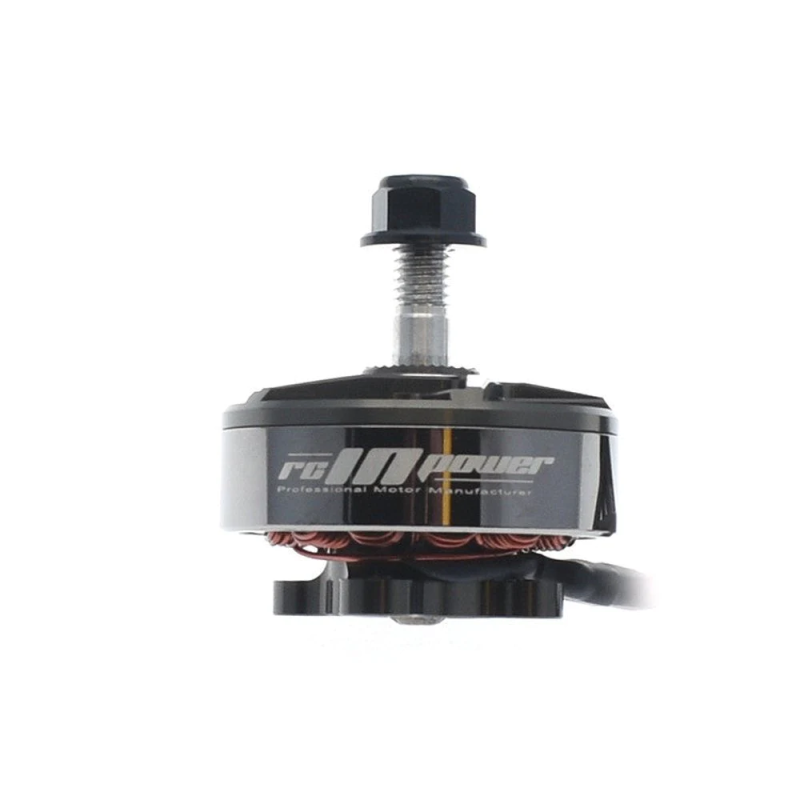

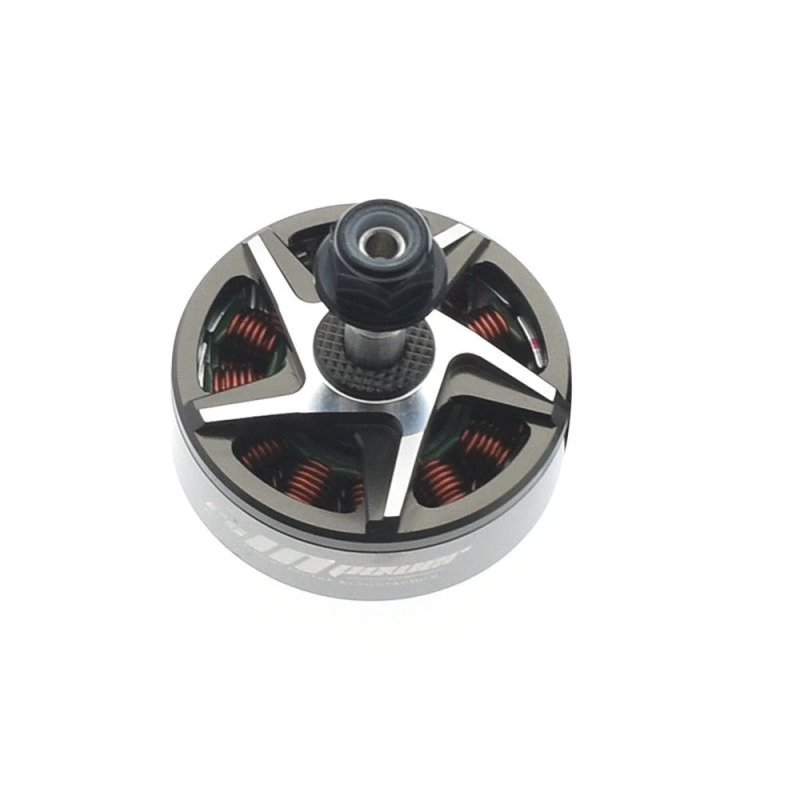

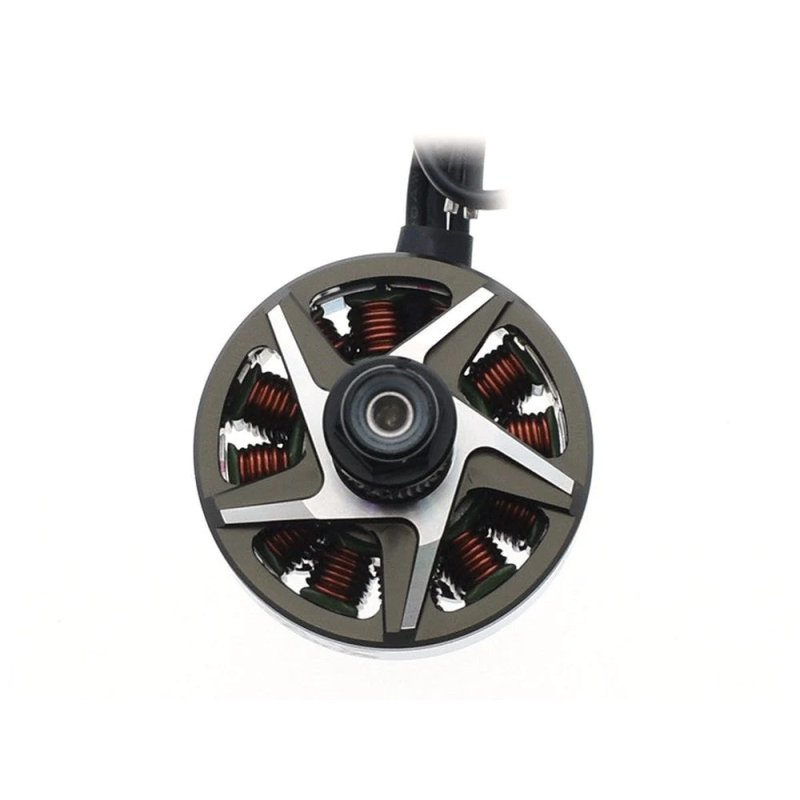

RCinpower EX2807 1300KV Motor — Power and Efficiency for Multicopters
The RCinpower EX2807 1300KV motor from the RCinpower brand is a high-efficiency brushless motor specifically designed for multicopters, combining an excellent power-to-weight ratio with high energy efficiency and reliability. The motor's design ensures long-lasting operation in various flight modes, while balanced parameters provide stable thrust and smooth control even during intense maneuvers.
The RCinpower EX2807 model has a nominal KV rating of 1300KV, making it optimal for 4-6S setups. Thanks to high-quality materials — high-strength N52H magnets and primary winding made of quality copper — the motor demonstrates high efficiency and resistance to thermal loads. The 12N14P stator design ensures good power output and stable torque.
| Specifications | Value |
|---|---|
| Model | RCinpower EX2807 |
| KV (RPM/Volt) | 1300KV |
| Operating Voltage | 4-6S |
| Max Current | 41A |
| Max Thrust | 2547 g |
| Stator Diameter | 28 mm |
| Stator Height | 7 mm |
| Shaft Diameter | 4 mm |
| Motor Size | 34.3 x 32.9 mm (diameter x length) |
| Cable Length | 160 mm |
| Weight | Approx. 50 grams |
| Max Power | Approx. 800W |
| Magnets | High-strength N52H |
| Windings | Quality copper |
| Configuration | 12N14P |
Who is this motor for?
The RCinpower EX2807 1300KV is ideal for pilots seeking a reliable motor for mid-range racing and freestyle multicopters with 4S–6S batteries. The motor provides a high thrust reserve (2547 g) at a relatively low weight (approx. 50 g), which allows for increased maneuverability and flight duration without excessively increasing the aircraft's mass.
Advantages and Features
- High KV 1300KV for dynamic maneuvers and rapid acceleration.
- Operating voltage 4-6S — versatility for various battery configurations.
- Max current 41A and power approx. 800W for stable thrust.
- N52H magnets and quality copper windings for enhanced efficiency and durability.
- Compact size 34.3 x 32.9 mm and stator diameter 28 mm with a height of 7 mm.
- Shaft diameter 4 mm and cable length 160 mm for convenient installation.
Package Contents:
- 1× RCINPOWER EX2807 motor (1300KV)
- 1× lock nut
- 4× M3 mounting bolts
By choosing the RCinpower EX2807 1300KV, you get a high-quality component for your drone from the renowned RCinpower brand, combining high power, reliable construction, and optimal dimensions for mounting on various frames. If you need a motor with excellent thrust and durability — this model will be the right choice.
