Product Code: FA123-2275516177-123
220 000 грн.
Buy this product in 1 click:
Main specifications
Number of Channels:
8
Operating time:
40–50 min
Power source:
From Battery
Power Supply:
24 V
Jamming range:
2000–2500 m
All specifications
We will deliver this product:
Payment
Description

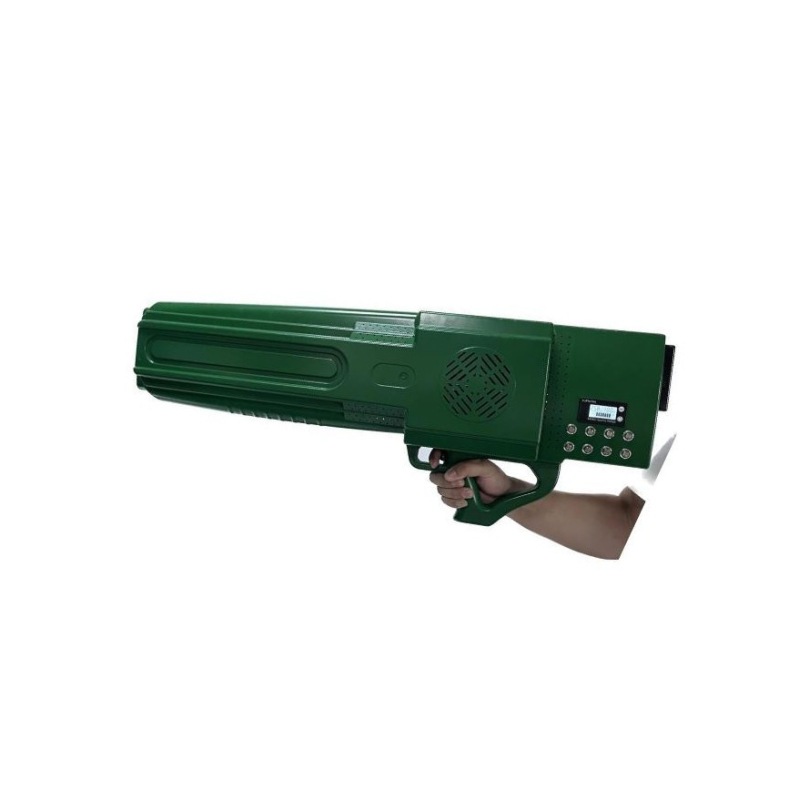

Anti-Drone TX-T08 8 Channels
Anti-Drone TX-T08 is an 8-channel jammer capable of suppressing UAV signals at a distance of up to 2500 meters. Its compact dimensions (780 x 302 x 165 mm) ensure ease of use. The effective operating range is 2000 to 2500 meters, making this device an effective means of airspace control. A wide frequency range and corresponding output power allow it to block various signals at frequencies from 433MHz to 5.8GHz, providing full coverage to prevent aerial intrusions.
SPECIFICATIONS
- Model No. T08
- Size 780*302*165 mm
- Weight approx. 5.4 kg
- Effective range 2000-2500 meters, depends on the actual environment
Output Power
- 410-485 MHz (433 MHz) 10 W
- 840-920 MHz (900 MHz) 10 W
- 1100-1280 MHz (1.2 GHz) 10 W
- 1559-1620 MHz (1.5 GHz) 30 W
- 1400 MHz (1.4 GHz) 10 W
- 2400-2500 MHz (2.4 GHz) 30 W
- 5150-5350 MHz (2.4 GHz) 30 W
- 5725-5850 MHz (5.8 GHz) 30 W
- Total 160 W
Internal Antenna Gain
- 433 MHz / 5 dBi
- 2400 MHz /14 dBi
- GPSL1-L5 (1.2 G/11 dBi, 11.5 G/12 dBi)
- 5800 MHz /16 dBi
- 5200 MHz /16 dBi
- 900 MHz. /9 dBi
- Total Output Power 160 W
- Battery Life 40-50 minutes
- Operating Temperature -20oC to +55oC
- Power Supply
- Internal 24V 15A Li-ion Battery
- (Can be designed for external battery connection)
- Relative Humidity 35~85%
Specifications
Number of Channels
8
Operating time
40–50 min
Power source
From Battery
Power Supply
24 V
Jamming range
2000–2500 m
Frequency range
410–485 MHz, 840–920 MHz, 1100–1280 MHz, 1400 MHz, 1559–1620 MHz, 2400–2500 MHz, 5150–5350 MHz, 5725–5850 MHz
Antennas
Weight
5.4 kg
Trench EW Jammer
Total system power
160 W
Specifications
Size
780×302×165 mm
