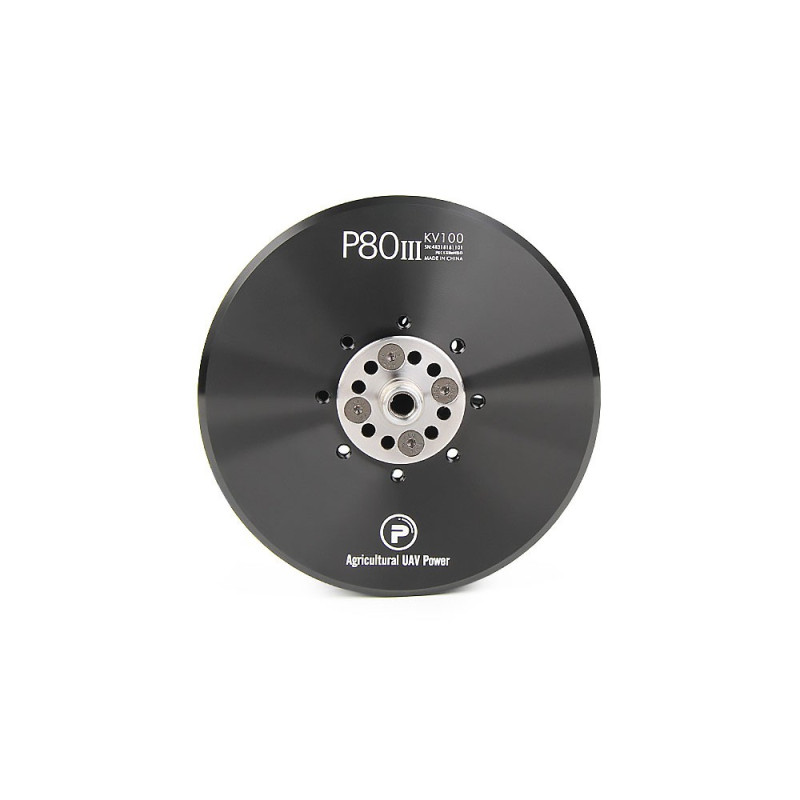

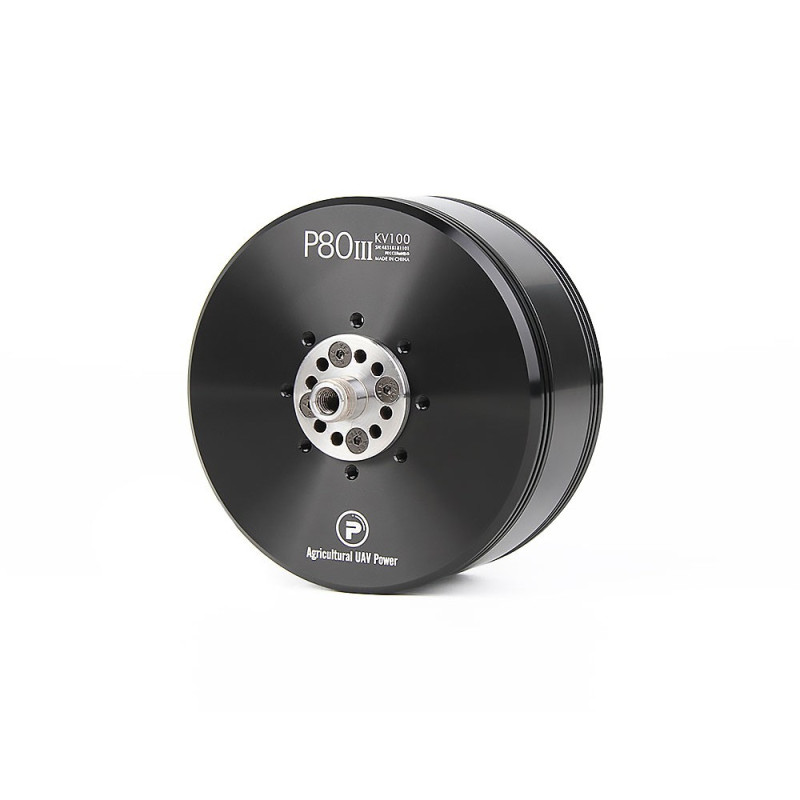

T-MOTOR P80III 100KV Motor — Power and Reliability for Agricultural Drones
T-Motor, a company known for its mission to create the "safest power system," introduces the P series for agricultural applications. The T-MOTOR P80III 100KV motor is designed for operation in harsh conditions with increased thrust, high efficiency, and a long service life. This brushless motor combines waterproof, dustproof, anti-corrosion, and heat-resistant properties, making it an ideal choice for agricultural drones and heavy multi-copters operating in the field and in challenging climatic conditions.
Key Features
- High efficiency and thrust performance among comparable motors
- Stable and reliable operation with a long service life
- Waterproof, dustproof, anti-corrosion, and heat-resistant casing
- Precise engineering design for durability
- Easy installation and wide compatibility with many drone models
Technical Specifications
T-MOTOR P80III Specifications| Brand | T-motor |
|---|---|
| Model | T-motor P80III |
| KV | 100KV |
| Motor Dimensions | 91.6×43 mm |
| Internal Resistance | 45-51 mOhm |
| Configuration | 36N42P |
| Shaft Diameter | 15 mm |
| Number of Cells (LiPo) | 6-12S |
| No-Load Current at 10V | 1.6 A |
| Max Continuous Power 180s | 2700 W |
| Max. Continuous Current 180S | 60 A |
| Weight | 635 g (including cables) |
The P80III motor provides an excellent thrust-to-weight ratio and is designed for operation with 6–12S batteries. Low internal resistance (45-51 mOhm) helps reduce heat loss and increase efficiency, while the 36N42P configuration ensures stable operation under high loads. The 15mm shaft diameter adds strength for propeller installation and reduces the risk of wear during intensive use.
Package Contents
- T-MOTOR P80III KV100 or 120 kV Brushless Motor x 1
- 32 x 10 x 3 mm Carbon Propeller Cover x 1
This motor is suitable for professional agricultural drones and heavy industrial platforms requiring high power (up to 2700 W under continuous loads) and a stable current of up to 60 A. Thanks to dust and moisture protection, anti-corrosion coating, and heat-resistant materials, you get a reliable resource in field conditions. Easy integration and wide compatibility allow for quick replacement or upgrade of the drone's propulsion system without complex modifications.
If you need a motor for demanding tasks where reliability, performance, and a long service life are important — the T-MOTOR P80III 100KV meets these requirements and is ready for operation in challenging conditions.
