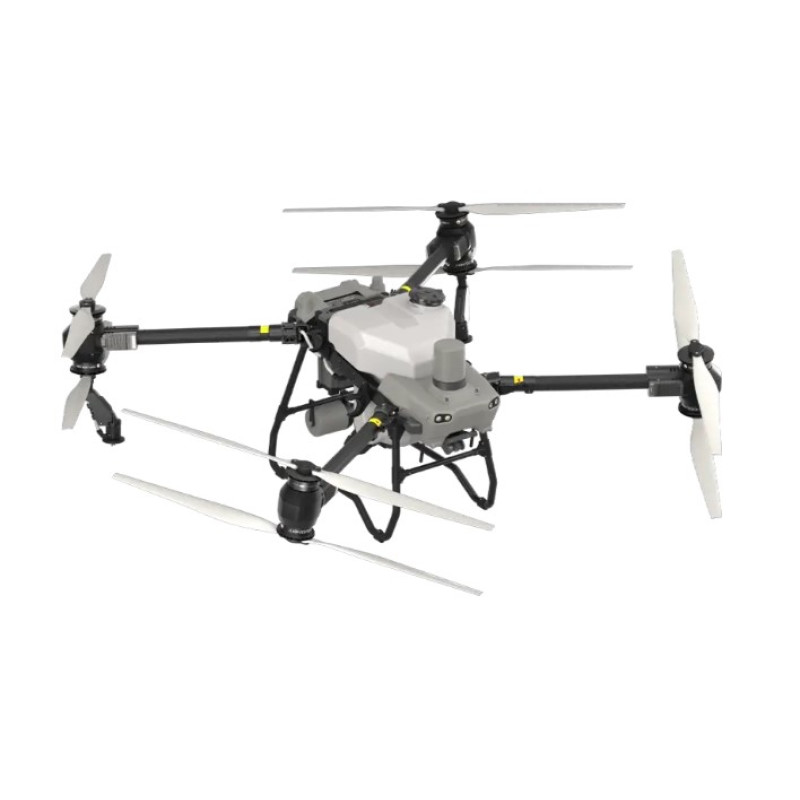

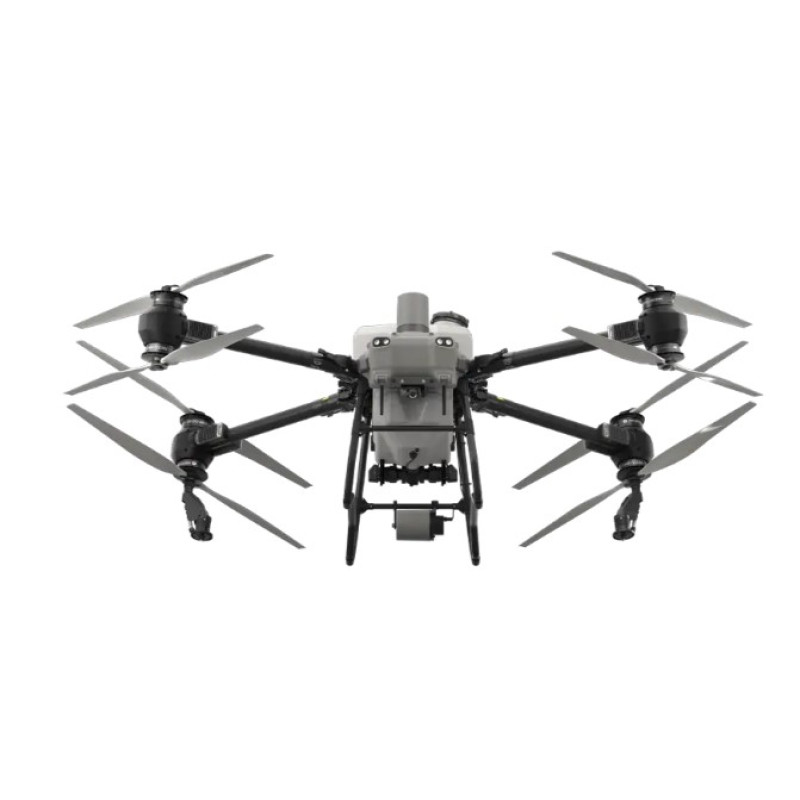

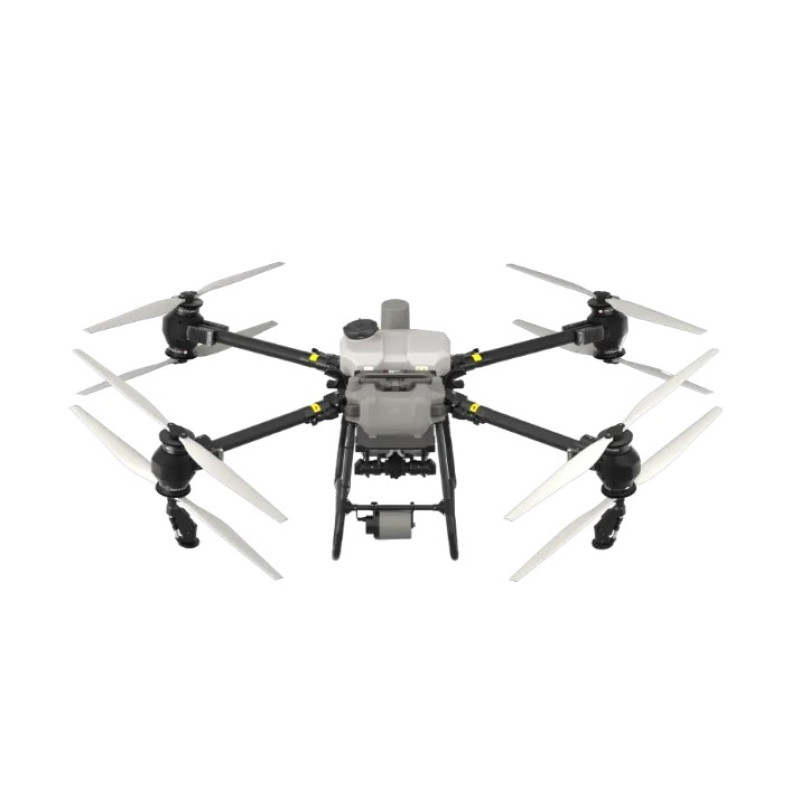

Agricultural Multicopter DJI Agras T50 (Kit)
Precision Agriculture at a New Level
DJI AGRAS T50 — a professional agricultural drone from DJI, designed for intensive and precise treatment of fields, orchards, and plantations. Thanks to its coaxial design (two motors per arm) and robust components, the aircraft ensures stability when applying liquid solutions up to 40 kg or spreading dry fertilizers up to 50 kg, making it an effective tool for large-scale agricultural operations.
Dual Spraying System and Adaptive Performance
The Agras T50's dual spraying system provides a flow rate of 16 L/min with two nozzles, producing fine and uniform droplets. For fruit tree treatment, an optional 50 L additional tank and a pair of centrifugal nozzles are available, increasing the flow rate to 24 L/min when using four nozzles. This allows for greater coverage area and improved adhesion of the working solution to leaves.
Aerial Survey and In-Flight Monitoring
The Agras T50 combines crop protection and aerial survey functions: a gimbal-mounted FPV camera with an adjustable viewing angle provides real-time field imagery, helping to create maps and routes. The intelligent remote-controlled camera supports automatic "one-tap" missions, significantly simplifying operator workflows.
Reliable Communication and Flight Safety
The upgraded DJI O3 transmission system with four antennas ensures a stable signal even in areas without mobile coverage, with a transmission range of up to 2 km; for challenging conditions, an optional Relay module is available for continuous video transmission and enhanced flight safety. The Agras T50 is also equipped with advanced obstacle detection systems and radar modules, increasing safety during autonomous missions.
Package Contents
The set includes:
- Agras T50 drone
- Air-cooled radiator
- Tool kit
- Device
- Harness
- USB-C cable
Technical Specifications (Full List)
| Drone | |
|---|---|
| Mass | 39.9 kg (without battery) 52 kg (with battery) |
| Maximum Takeoff Weight | Spraying: 92 kg (at sea level) Spreading: 103 kg (at sea level) |
| Max. Diagonal Wheelbase | 2200 mm |
| Dimensions | 2800×3085×820 mm (arms and propellers extended) 1590×1900×820 mm (arms unfolded, propellers folded) 1115×750×900 mm (arms and propellers folded) |
| Hovering Accuracy Range (with strong GNSS signal) | D-RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cm D-RTK disabled: Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm) |
| Hovering Accuracy (with strong GNSS signal) | D-RTK enabled: - Horizontal: ± 10 cm - Vertical: ± 10 cm D-RTK disabled: - Horizontal: ± 0.6 m - Vertical: ± 0.3 m (radar module enabled: ± 0.1 m) |
| RTK/GNSS Operating Frequency | RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2 GNSS: GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1 |
| Maximum Configurable Flight Radius | 2000 m |
| Maximum Wind Resistance | 6 m/s |
| Propulsion System - Motors | |
| Stator Size | 100×33 mm |
| KV | 48 rpm |
| Power | 4000 W/motor |
| Propulsion System - Propellers | |
| Material | Carbon fiber nylon thread |
| Dimension | 54 inches (1371.6 mm) |
| Propeller Rotation Diameter | 1375 mm |
| Quantity | 8 pieces |
| Spraying System - Tank | |
| Model | LX8060SZ |
| Quantity | 2 |
| Nozzle Spacing | 1570 mm (rear nozzles) |
| Droplet Size | 50-500 μm |
| Effective Spray Width | 4-11 m (at 3 m height above crop) |
| Spraying System - Pumps | |
| Type | Centrifugal pump (magnetic drive) |
| Quantity | 2 |
| Single Pump Output | 0-12 L/min |
| Maximum Flow Rate | 16 L/min (2 nozzles); 24 L/min (4 nozzles) |
| Spreading System | |
| Compatible Material Diameter | Dry granules 0.5-5 mm |
| Spreading Hopper Volume | 75 L |
| Spreading Hopper Capacity | 50 kg |
| Spreading Width | 8 m |
| Radar System | |
| Model | RD241608RF (front phased array radar); RD241608RB (rear phased array radar) |
| Ground Tracking | Maximum gradient on slopes: 20° Height detection range: 1-50 m Stabilization operating range: 1.5-30 m |
| Obstacle Avoidance | Obstacle detection range (omnidirectional): 1-50 m FOV: Front phased array: horizontal 360°, vertical ±45°, upward ±45° (cone) Rear phased array: vertical 360°, horizontal ±45° Operating conditions: flight over obstacles above 1.5 m with horizontal speed not exceeding 10 m/s and vertical speed not exceeding 3 m/s. Safe braking distance: 2.5 m (distance between front of propellers and obstacle after braking) Detection direction: 360° omnidirectional detection |
| Binocular Vision System | |
| Measurement Range | 0.5-29 m |
| Effective Detection Speed | ≤10 m/s |
| Field of View | Horizontal: 90°, Vertical: 106° |
| Operating Environment | Adequate lighting and discernible surroundings |
| Remote Controller | |
| Model | RM700B |
| Operating Frequency | 2.4000-2.4835 GHz, 5.725-5.850 GHz |
| Maximum Transmission Distance | 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE); (unobstructed, free of interference, and at 2.5 m altitude) |
| Wi-Fi Protocol | Wi-Fi 6 |
| Wi-Fi Operating Frequency | 2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz |
| Bluetooth Protocol | Bluetooth 5.1 |
| Bluetooth Operating Frequency | 2.4000-2.4835 GHz |
| GNSS | GPS+Galileo+BeiDou |
| Screen | 7.02-inch LCD touchscreen, 1920×1200 pixel resolution, 1200 cd/m2 high brightness |
| Operating Temperature | -20° to 50° C |
| Storage Temperature | Less than one month: -30° to 45° C One to three months: -30° to 35° C Six months to one year: -30° to 30° C |
| Charging Temperature | 5° to 40° C |
| Operating Time with Built-in Battery | 3 hours 18 minutes |
| Operating Time with External Battery | 2 hours 42 minutes |
| Charging Type | DJI recommends using a locally certified USB-C charger with a maximum power of 65 W and a maximum voltage of 20 V, such as a 65 W portable charger. |
| Charging Time | DJI 2 hours for built-in and external battery (when device is off and standard charger is used) |
| DB1560 Smart Drone Battery | |
| Output Channel | DB1560 Smart Flight Battery (BAX702-30000mAh-52.22V) |
| Capacity | 30000 mAh |
| Weight | Approximately 12.1 kg |
| Rated Voltage | 52.22 V |
| C10000 Smart Power Supply | (optional) |
| Model Number | CSX702-9500 |
| Dimensions | 400 × 266 × 120 mm |
| Weight | Approximately 11.4 kg |
| Input/Output | Input (main): 220-240 V AC, 50/60 Hz, 24 A max Input (auxiliary): 220-240 V AC, 50/60 Hz, 24 A max Output: 59.92 V DC MAX, 175 A MAX, 9000 W MAX Input (main): 100-120 V AC, 50/60 Hz, 16 A max Input (auxiliary): 100-120 V AC, 50/60 Hz, 16 A max Output: 59.92 V DC MAX, 60 A MAX, 3000 W MAX |
| Charging Time | Full charge of battery in 9-12 minutes (DB1560 Intelligent Flight Battery) |
| Protection Features | Overvoltage, overcharge, undervoltage, and overheating protection. |
| Charging Safety | AC cable protection, power cable protection, and charging connector protection |
| Relay | (optional) |
| Model | RL01-65 |
| Dimensions | 120×110×100 mm |
| Weight | ≤575 g |
| Input Voltage | 9 V3 A / 12 V2.5 A / 15 V2 A |
| Power Consumption | 9 IN (SRRC), 12 IN (FCC) |
| Capacity | 6500 mAh |
| Operating Time | 4 hours |
| Operating Frequency | 2.4000-2.4835 GHz, 5.725-5.850 GHz |
| Maximum Transmission Distance | 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC) (unobstructed, free of interference, and at 2.5 m flight altitude) |
| Charging Time | DJI 2 hours 20 minutes (using standard charger) |
| IP Rating | IP55 |
This multicopter is ideal for commercial use in precision agriculture, combining high performance, precise positioning (RTK/GNSS support), advanced obstacle detection and avoidance systems, and an operator-friendly RM700B control system with a large, bright touchscreen. The Agras T50 is a modern solution for agricultural producers who value speed, reliability, and accuracy in every flight.
