TrueRC Singularity 1280MHz V2 Antenna is a high-quality circular antenna from the brand , belonging to the TrueRC series. The model is optimized for operation in the 1260-1290 MHz frequency range and combines compact dimensions with long-range reliability, making it an excellent choice for FPV systems, drones, racing models, and professional radio communication devices.
Description and Purpose
The antenna is designed for stable signal reception and transmission near 1280 MHz with a wide bandwidth. It features circular right-hand polarization (RHCP) and a 360° beam angle, ensuring uniform coverage regardless of the device's orientation. The body is made of plastic, which provides low weight and long-term operation even in field conditions.
Advantages
- Operates in the 1260-1290 MHz frequency range, suitable for standard FPV solutions;
- Circular right-hand polarization (RHCP) reduces the impact of reflected signals and interference;
- 360° beam angle for consistent coverage in all directions;

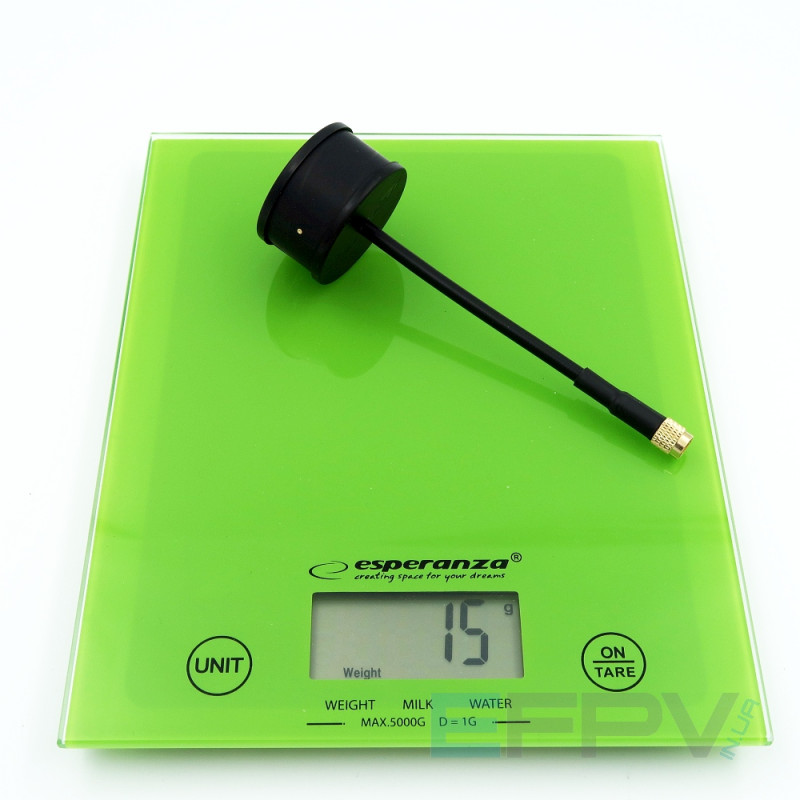

- Compact dimensions of 130*40*40 mm and low weight of 15 g — important for drones and light platforms;
- 1.9 dBi gain provides a balance between range and antenna size;
- Standard SMA connector allows for quick and easy integration of the antenna with most FPV transmitters and receivers.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 1260-1290 MHz |
| Polarization | Circular Right-Hand (RHCP) |
| Beam Angle | 360° |
| Connector | SMA |
| Material | Plastic |
| Gain | 1.9 dBi |
| Size | 130*40*40 mm |
| Weight | 15 g |
The TrueRC Singularity 1280MHz V2 antenna is well-suited for FPV projects, video surveillance, and radio devices where compactness and reliability are important. Installation is simple thanks to the SMA connector; the antenna is easy to mount on devices with limited space and weight without significantly altering balance and aerodynamics.
Product name: TrueRC Singularity 1280MHz V2 Antenna. Brands in description: and TrueRC. Product category: Antennas > Circular Antennas > Clover - Mushroom Antenna.
The antenna can be purchased in the Flash Army online store — the description includes all available parameters and characteristics of the model according to the source.
