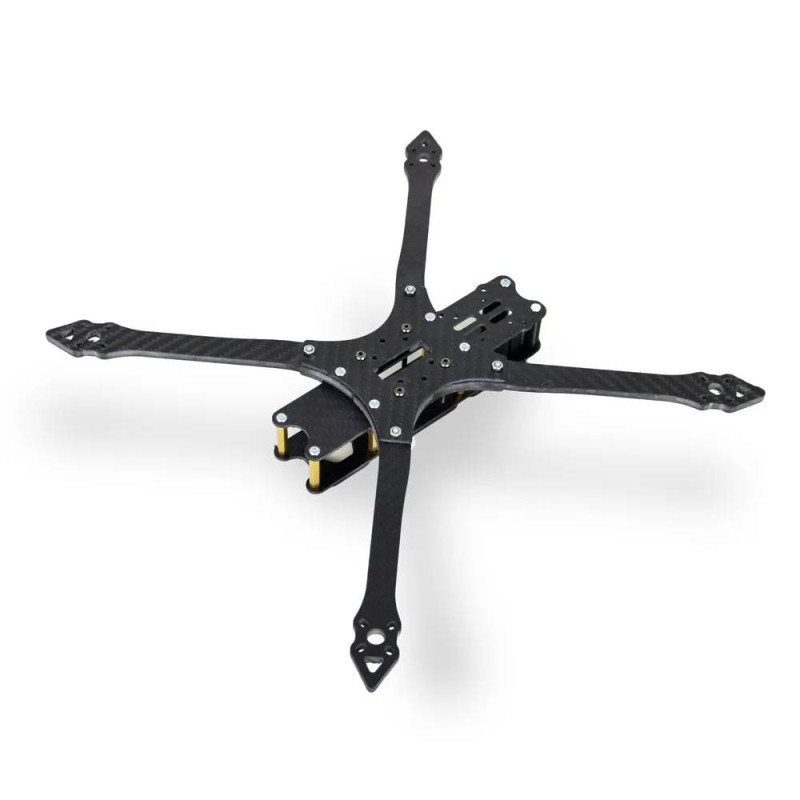

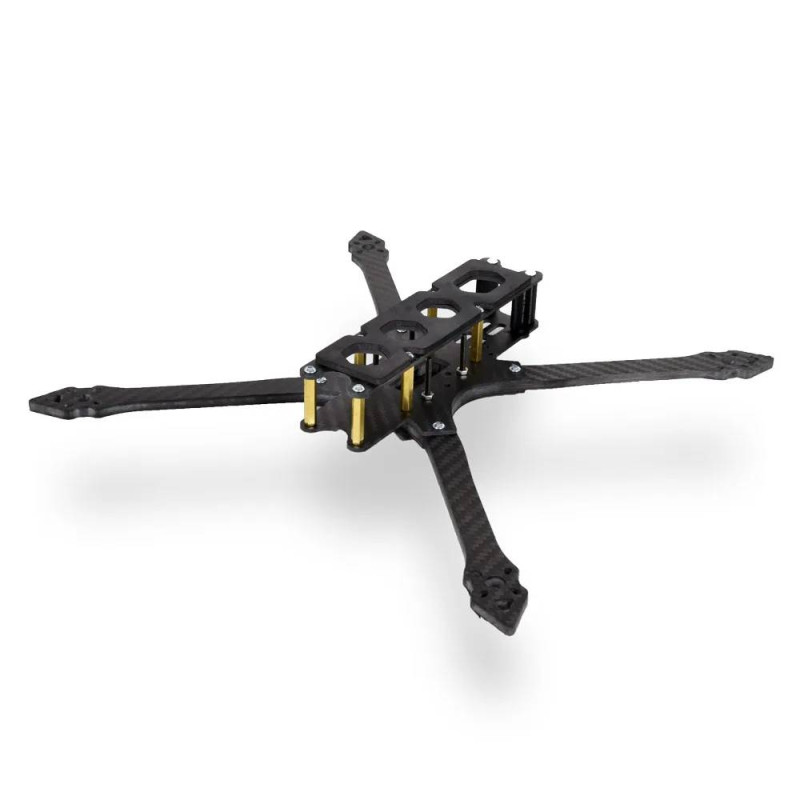

Rigid Carbon Fiber Frame for 7-inch FPV Drone «Amaga 7» by Magura
We offer a reliable and lightweight carbon fiber frame for FPV quadcopters — the «Amaga 7» model from the Magura brand. This frame combines high structural rigidity with minimal weight, making it an excellent choice for freestyle, high-speed racing, and professional videography. The thoughtful geometry and reinforced arms ensure stability in the air and withstand intense loads during aggressive maneuvers.
Materials and Construction
The frame body is made of high-quality carbon fiber, ensuring a balance between strength and weight. The top, middle, and bottom plates have a thickness of 2 mm, while the arms are 5 mm thick, which increases the overall rigidity and durability of the structure.
Weight and Package Contents

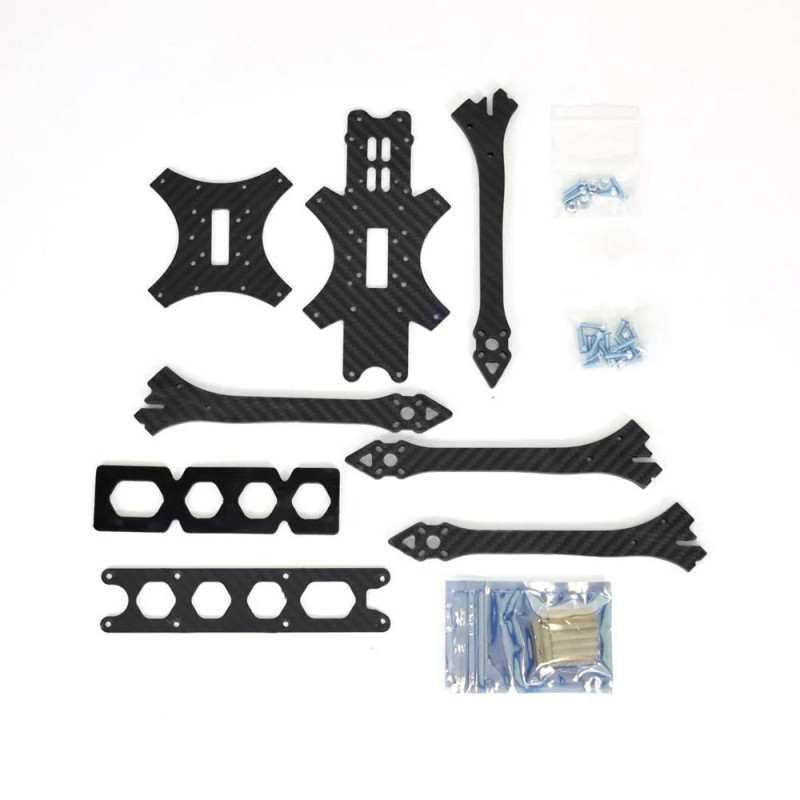

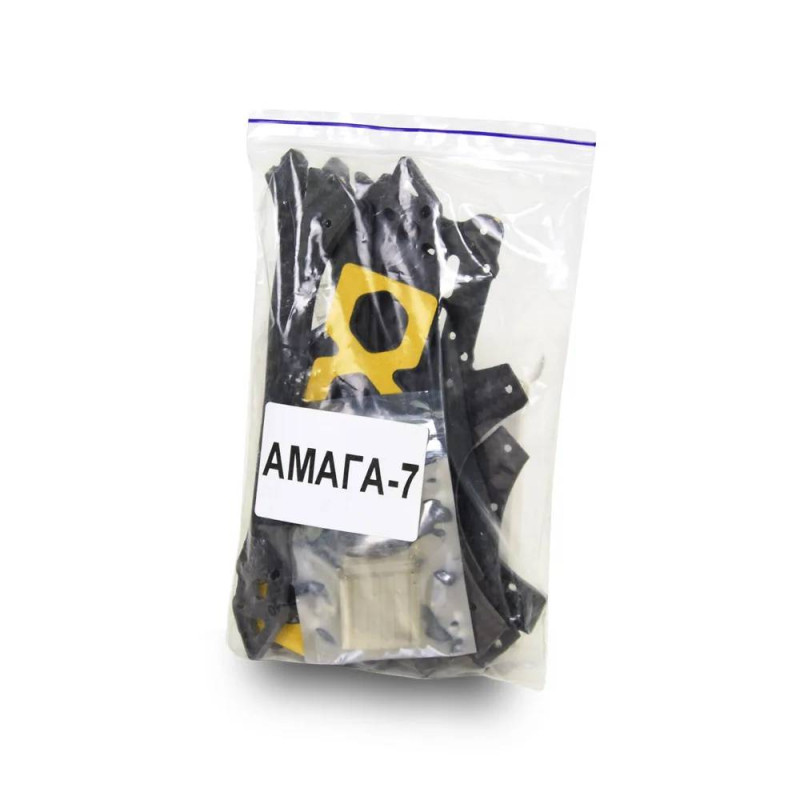

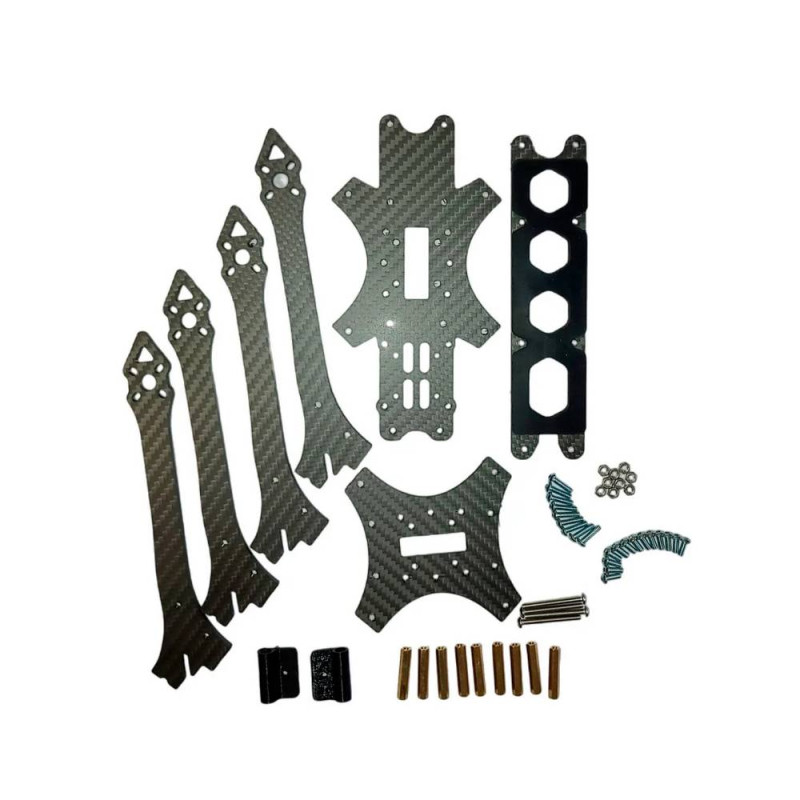

The total weight of the kit is 194 g. The kit includes the frame itself, standoffs, screws, nuts, rubber bands, and 3D-printed elements for camera mounting, allowing immediate assembly and setup of the platform.
Dimensions and Compatibility
The frame is designed for 7-inch propellers and is compatible with common motor and flight controller configurations. Key dimensions and distances are listed below:
- Motor-to-motor distance: 315 mm
- Frame size: 258×258 mm
- Standoff height: 25 mm
- Body length: 163 mm
Advantages
- Aerodynamics: The optimized frame shape reduces air resistance, increasing maximum speed and flight stability.
- Versatility: Suitable for freestyle, racing, or videography thanks to a well-designed camera platform and modular construction.
- Stability and Durability: Strong carbon fiber and thick arms ensure reliability during hard landings and crashes.
Technical Specifications
Below are the main technical parameters of the «Amaga 7» frame:
| Parameter | Value |
|---|---|
| Material | Carbon Fiber |
| Plate thickness | Top/middle/bottom – 2 mm |
| Arm thickness | 5 mm |
| Weight (kit) | 194 g (frame, standoffs, screws, nuts, rubber bands, 3D-printed elements) |
| Propeller size | 7 inches |
| Motor-to-motor distance | 315 mm |
| Frame dimensions | 258×258 mm |
| Standoff height | 25 mm |
| Body length | 163 mm |
The «Amaga 7» frame by Magura is ideal for pilots who value performance, stability, and reliability. It provides a neat platform for mounting cameras and electronics, allowing for high-quality video streams during high-speed and agile flights. Product category: Drones & Quadcopters > Frames
