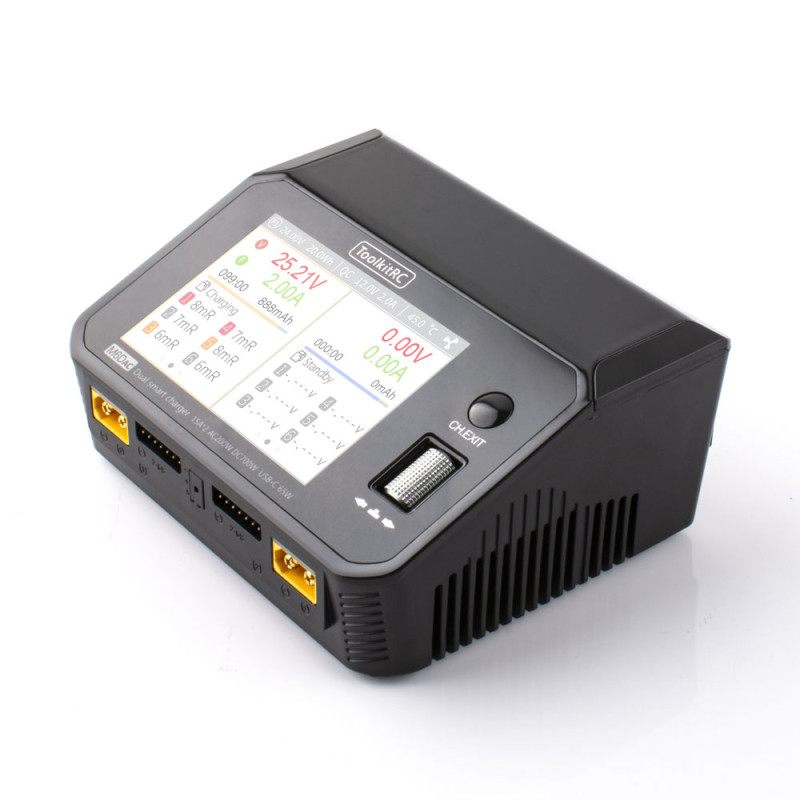

ToolkitRC M6DAC Dual 350W 15A 1-6S Charger with Built-in Power Supply

Brand: ToolkitRC. This is a compact and versatile solution for professionals and hobbyists: a dual-channel charger that combines high power, balancing precision, and advanced power supply capabilities.

Power Supply: Operates from AC 100-240V mains or DC 7-28V power source, and can also serve as a stabilized power supply with a range of 1-28V / 1-15A.

In synchronous mode, the M6DAC provides a total charging current of up to 25A with a total power of 700W; in asynchronous mode, each channel can operate with a current of up to 15A and power of up to 350W per channel. The device supports a wide range of batteries: LiPo, LiHV, LiFe, Li-ion, NiMH, Pb (up to 6S/16S/10S respectively).

Intuitive control is implemented via a large 3.5” IPS display and a rotary wheel. The device supports firmware updates and PC connection, allowing for up-to-date functionality and diagnostics. Additionally, there is a USB-C output with up to 65W power, supporting PD3.0, QC, SCP, PPS, and other modern protocols for charging phones, tablets, or laptops.

Key Advantages

• Two independent channels with synchronous operation capability: simultaneous charging of two batteries at 350W (15A) or combining channels for one battery at a maximum speed of up to 25A.
• Support for Recycle Mode function: energy recirculation between batteries with minimal losses.
• High charging accuracy: control up to 5 mV per channel and balancing current up to 1000 mA to extend battery life.
• Advanced operating modes: charge, balance, storage, discharge, and other cyclic modes.
• Safety: protection against short circuit, overheating, overcharge time/capacity, and manual voltage calibration capability.
• Automatic charging continuation function: after battery replacement, the device can automatically start a new cycle without re-configuration.

How to Use

• 1. Connect the wires to the charger, then connect the battery.
• 2. For LiPo, LiHV, Li-ion, always connect the balance connector before the main charging connector.
• 3. Select the battery type, number of cells (S), desired voltage, and mode (charge, balance, storage, etc.).
• 4. Set the charging or discharging current.
• 5. Press Start to begin the process.

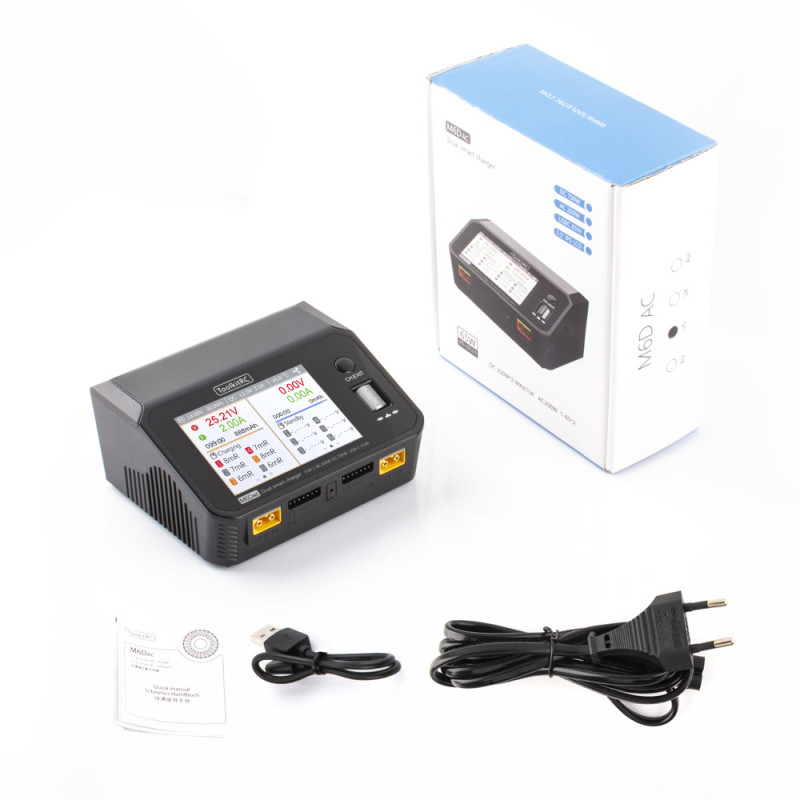

Package Contents

1 × ToolkitRC M6DAC
1 × power cable
1 × user manual
1 × USB-C cable

This charger is ideal for field and home use, providing power flexibility (AC and DC), support for modern USB-C protocols, and high charging accuracy for various battery types. The M6DAC will be a reliable assistant for charging drone batteries, RC models, and other gadgets where fast, safe, and controlled charging is required.
