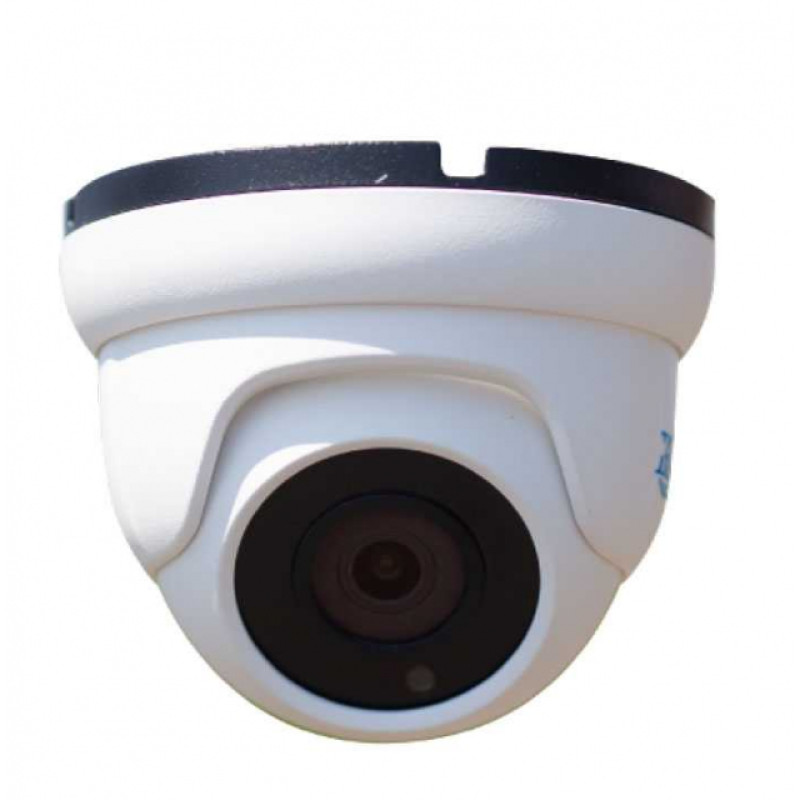

DigiGuard DG-5124S (3.6 mm). 5 MP AHD/CVI/TVI/CVBS Outdoor Bullet Camera

DigiGuard DG-5124S (3.6 mm) — 5 MP Multi-Format Outdoor Dome Video Camera

Brand: DigiGuard
Model: DG-5124S (3.6 mm)
Product ID: 19785
Category: Electronics > Video Surveillance > Video Cameras

This camera combines modern technologies for easy installation and reliability for outdoor video surveillance. The DigiGuard DG-5124S is equipped with a 1/2.8" Sony IMX335 CMOS sensor with STARVIS technology (Back-illuminated CMOS sensor), which provides high-quality images in low-light conditions. Thanks to the built-in IR illumination, the camera can operate in complete darkness with a 0 Lux IR characteristic.

Key Features

• Resolution: 5 MP (full 5-megapixel support).
• Multi-format: AHD / CVI / TVI / CVBS support — compatibility with various recorders and video surveillance systems.
• Sensor: 1/2.8" CMOS SONY IMX335 STARVIS (Back-illuminated) — improved sensitivity in low light.
• Light sensitivity: 0 Lux with IR illumination — operation in complete darkness due to infrared illumination.
• Lens: fixed f = 3.6 mm, viewing angle approximately 90° — optimal for monitoring streets, entrances, parking lots.
• Image processing: DWDR (wide dynamic range), 3DNR (digital noise reduction), AWB (automatic white balance), AGC (automatic gain control), BLC (backlight compensation).
• Protection class: IP66 — full protection against dust and water jets, suitable for outdoor use.
• Power supply: DC 12V / 550 mA — standard power for connection to video surveillance infrastructure.

This model is ideal for use in outdoor video monitoring systems for residential complexes, commercial facilities, parking lots, and industrial zones. Thanks to AHD/CVI/TVI/CVBS multi-format compatibility, you can connect the camera to an existing recorder without replacing cabling solutions. The reliable Sony IMX335 sensor with STARVIS technology ensures high frame detail in low-light conditions, and a set of image processing functions (DWDR, 3DNR, AWB, AGC, BLC) allows for a clear picture in complex contrast scenarios.

Installation and setup are simple: the dome housing simplifies installation on a facade or under a canopy, and IP66 protection guarantees resistance to atmospheric influences. The camera has a fixed 3.6 mm lens with a viewing angle of about 90°, making it versatile for monitoring wide areas without significant distortion. It operates from a standard DC 12V/550mA power source, simplifying integration into larger video surveillance systems.

If you need an inexpensive but high-quality outdoor camera with high resolution and compatibility with various video signal formats — the DigiGuard DG-5124S will be an excellent choice.
