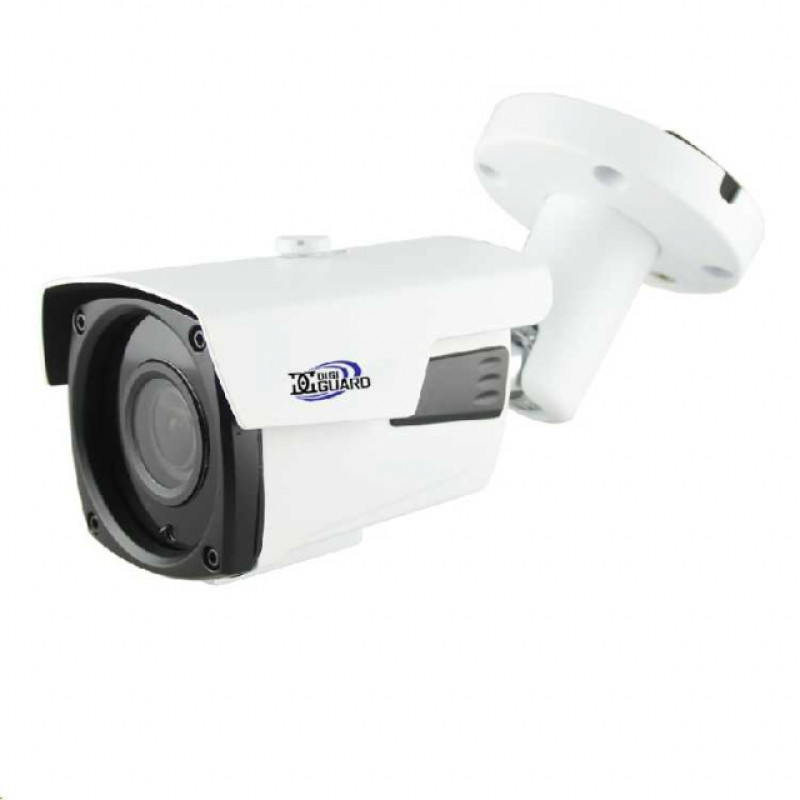

DigiGuard DG-5424S (2.8-12 mm). 5 MP AHD/CVI/TVI/CVBS Outdoor Bullet Camera
DigiGuard DG-5424S (2.8-12 mm) — 5 MP AHD/CVI/TVI/CVBS Outdoor Bullet Camera
The professional multi-format outdoor bullet camera DigiGuard DG-5424S combines high 5 MP resolution with compatibility with AHD, CVI, TVI, and CVBS formats, making it a versatile solution for upgrading existing video surveillance systems and building new ones. The camera is designed for outdoor installation and has IP66 protection, ensuring resistance to weather conditions.
Key Advantages
- High Image Quality: 5 MP provides a clear picture for identifying objects and details.
- Sensitive Sensor: 1/2.8" CMOS IMX335 SONY Starvis Back-illuminated CMOS sensor ensures good performance in low-light conditions.
- Night Vision: 0 Lux with IR illumination up to 60 m for reliable night-time area control.
- Adjustable Viewing Angle: Motorized or manually adjustable f=2.8-12 mm lens with an approximate 109°–35° viewing angle for wide or more concentrated surveillance zones.
- Multi-format: AHD/CVI/TVI/CVBS support provides flexibility for integration with various recorders.
- Reliable Power: DC 12V/750mA ensures stable camera operation.
Functional Characteristics
The camera features image enhancement technologies: DWDR (wide dynamic range) for correcting high-contrast scenes, 3DNR (three-dimensional digital noise reduction) for reducing noise in low light, AWB (automatic white balance) for accurate colors, AGC (automatic gain control), and BLC (backlight compensation). Thanks to the SONY Starvis sensor, the model excels in contrasting conditions and provides detail both day and night.
| Parameter | Value |
|---|---|
| Brand | DigiGuard |
| Model | DG-5424S |
| Type | Outdoor Bullet Camera |
| Resolution | 5 MP |
| Formats | AHD / CVI / TVI / CVBS |
| Sensor | 1/2.8" CMOS IMX335 SONY Starvis (back-illuminated) |
| Sensitivity | 0 Lux with IR |
| Lens | f = 2.8-12 mm (viewing angle ≈ 109° - 35°) |
| IR Illumination | 60 m |
| Video Processing | DWDR, 3DNR, AWB, AGC, BLC |
| Protection Class | IP66 |
| Power Supply | DC 12V / 750 mA |
This model is ideal for perimeter control, parking lots, entrances, building facades, and other open spaces where reliable night vision and resistance to external environmental factors are required. Thanks to multi-format compatibility, the DigiGuard DG-5424S is easy to integrate into existing systems without the need for complete equipment replacement.
Before installation, we recommend considering the viewing direction and distance to the monitored objects to optimally adjust the focus and achieve maximum image quality. The camera has a design that facilitates outdoor installation and maintenance.
