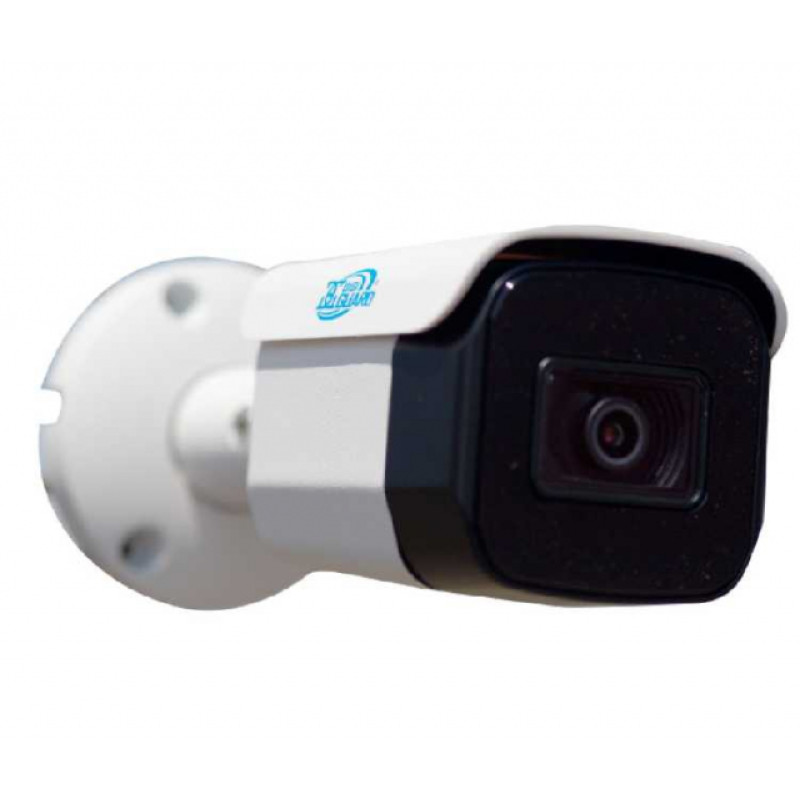

DigiGuard DG-5523S (3.6 mm). 5 MP AHD/CVI/TVI/CVBS Outdoor Bullet Camera
DigiGuard DG-5523S (3.6 mm) — 5 MP AHD/CVI/TVI/CVBS Outdoor Bullet Camera
Introducing the DigiGuard DG-5523S (3.6 mm) outdoor multi-format video camera from the DigiGuard brand. The model supports AHD/CVI/TVI/CVBS formats and provides 5 MP resolution for clear and detailed video. The camera uses a 1/2.8` CMOS IMX335 SONY Starvis sensor with Back-illuminated CMOS technology, which increases sensitivity in low light. The minimum illumination is 0 Lux with IR illumination, allowing video recording in complete darkness. The f=3.6 mm focal length lens provides an angle of view of about 90°, optimal for monitoring streets, entrances, and adjacent areas. The camera is equipped with IR illumination for night mode, supports DWDR for better detail transmission in complex lighting conditions, 3DNR for noise reduction, as well as AWB, AGC, and BLC functions for automatic white balance, signal amplification, and image enhancement in shadows. The device's housing has an IP66 protection rating, guaranteeing protection against dust and heavy rain, and is powered by a DC 12V/500mA source.
Specifications
| Parameter | Value |
|---|---|
| ID | 19786 |
| Model | DigiGuard DG-5523S (3.6 mm) |
| Brand | DigiGuard |
| Product Type | Electronics > Video Surveillance > Video Cameras |
| Format | AHD/CVI/TVI/CVBS (multi-format) |
| Sensor | 1/2.8` CMOS IMX335 SONY Starvis (Back-illuminated) |
| Resolution | 5 MP |
| Lens | f=3.6 mm |
| Angle of View | ~90° |
| Minimum Illumination | 0 Lux with IR |
| Night Vision | IR illumination |
| Image Functions | DWDR, 3DNR, AWB, AGC, BLC |
| Protection Class | IP66 (weatherproof, outdoor) |
| Power Supply | DC 12V/500mA |
Advantages and Applications
- High 5 MP resolution ensures clear reproduction of facial details and license plates.
- SONY Starvis IMX335 sensor improves image quality in low light conditions.
- Multi-format capability makes the camera versatile for integration with various recorders.
- IP66 allows outdoor operation in any weather, without additional protection.
- A set of image processing tools (DWDR, 3DNR, AWB, AGC, BLC) improves video quality in complex lighting.
This model is ideal for outdoor video surveillance of residential complexes, commercial facilities, parking lots, and industrial zones. Thanks to its format versatility and reliable construction, the DigiGuard DG-5523S easily integrates into existing video surveillance systems. Before installation, it is recommended to check the recorder's compatibility with the supported formats and ensure a stable DC 12V/500mA power source for correct operation.
