RushFPV 3.3G 2W VTX Transmitter Module with Antenna
RushFPV 3.3G 2W VTX Transmitter Module — a high-performance video transmitter for drones, designed for long-range flights. Brand: RushFPV. This module combines compact dimensions, a reliable design, and a custom-tuned circularly polarized antenna, ensuring stable and high-quality video communication in challenging operating conditions.
Description and Features
The RushFPV 3.3GHz VTX Air Kit is designed for use in aerial platforms where video signal range and reliability are critical. The built-in digital PLL circuit ensures frequency stability without drift, and the high efficiency of the transmitter reduces the need for additional fan cooling in most operating modes. With sufficient airflow, the VTX can operate at a maximum output power of up to 2.5W, making it suitable for long-distance flights.
- Designed for long-range flights; compact and reliable.
- Integrated digital PLL circuit with no frequency drift.
- High data transmission efficiency; typically does not require fan cooling.
- Custom-tuned high-performance circularly polarized antennas for improved communication quality.
- VTX and antenna quality control at all stages of production.
Specifications
- Video Input: CVBS NTSC/PAL
- Transmission Power: over 2W (up to 2.5W with airflow)
- Protocol: IRC Tramp
- Supply Voltage: 7-30 V
- Connectors: SMA
- Dimensions: 40.5 mm × 26 mm × 8.5 mm
- Weight: 16.5 g
Frequency Bands (3.3 GHz):
| Band | Channel 1 | Channel 2 | Channel 3 | Channel 4 | Channel 5 | Channel 6 | Channel 7 | Channel 8 |
|---|---|---|---|---|---|---|---|---|
| BAND A | 3330 MHz | 3350 MHz | 3370 MHz | 3390 MHz | 3410 MHz | 3430 MHz | 3450 MHz | 3470 MHz |
| BAND B | 3170 MHz | 3190 MHz | 3210 MHz | 3230 MHz | 3250 MHz | 3270 MHz | 3290 MHz | 3310 MHz |
Operating Instructions
- A short press of the button changes the channel. The blue indicator blinks a number of times corresponding to the channel number.
- A long press changes the power level. The red indicator blinks, showing the current level. In PIT mode, the indicator glows continuously.

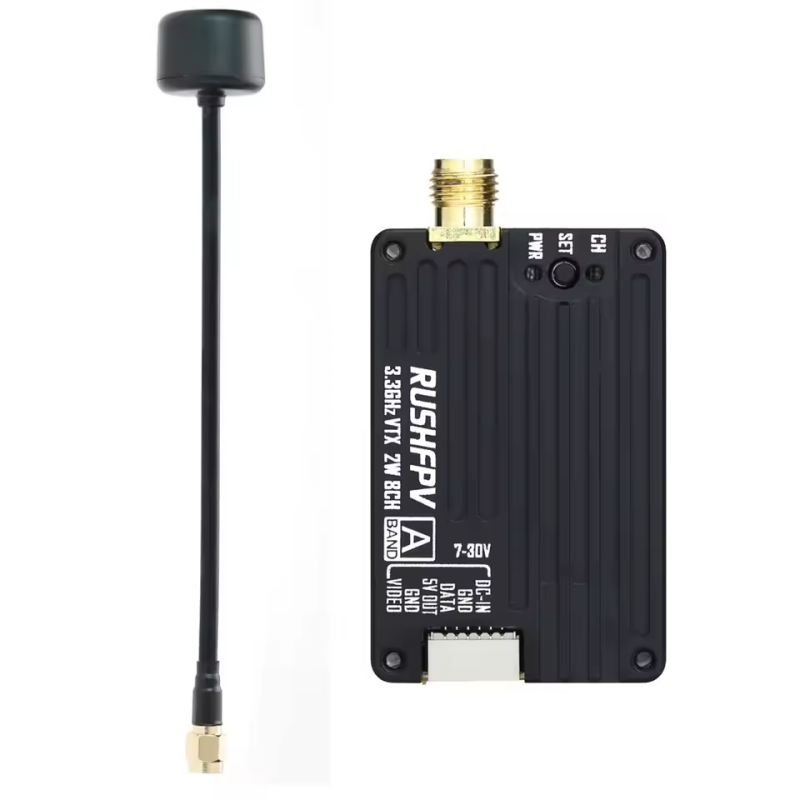

Packaging and kit: RushFPV 3.3G VTX video transmitter, custom-tuned circularly polarized antenna, user manual. Product image source: RushFPV 3.3G 2W VTX Transmitter Module (file: wp-content-uploads-2024-11-S259904a68deb4616b9153917262f92eax-jpg_960x960q75-jpg_-png.png).
Purpose: a component for drones and quadcopters in the category of parts and spare parts — a video signal transmitter (VTX), suitable for mounting in aerial platforms where range and stability of video communication are important.
Product type: Drones & Quadcopters > Drone Components > Drone Spare Parts > Transmitters. Brand: RushFPV.
