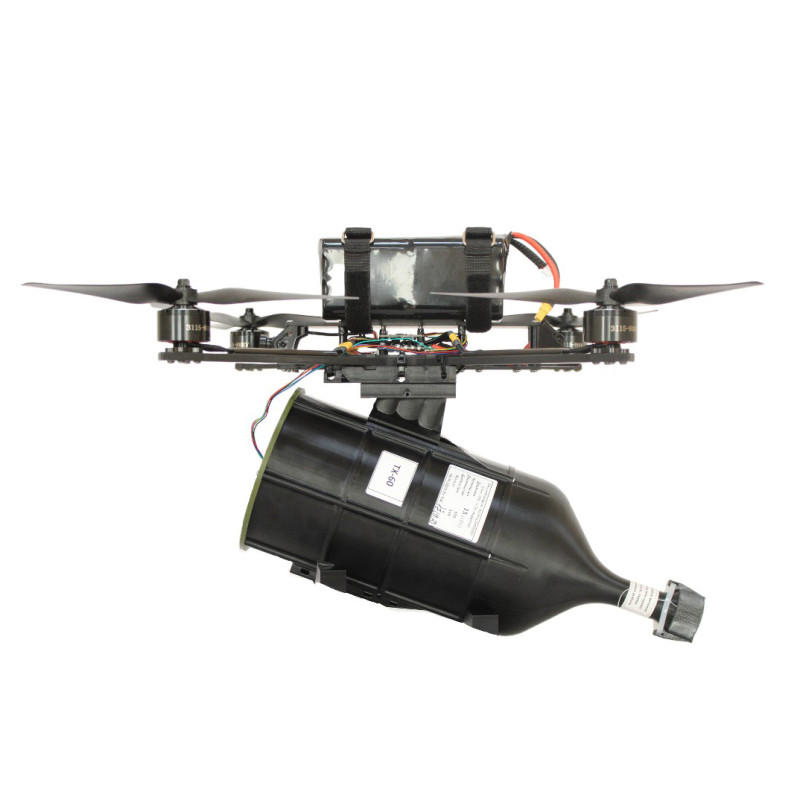

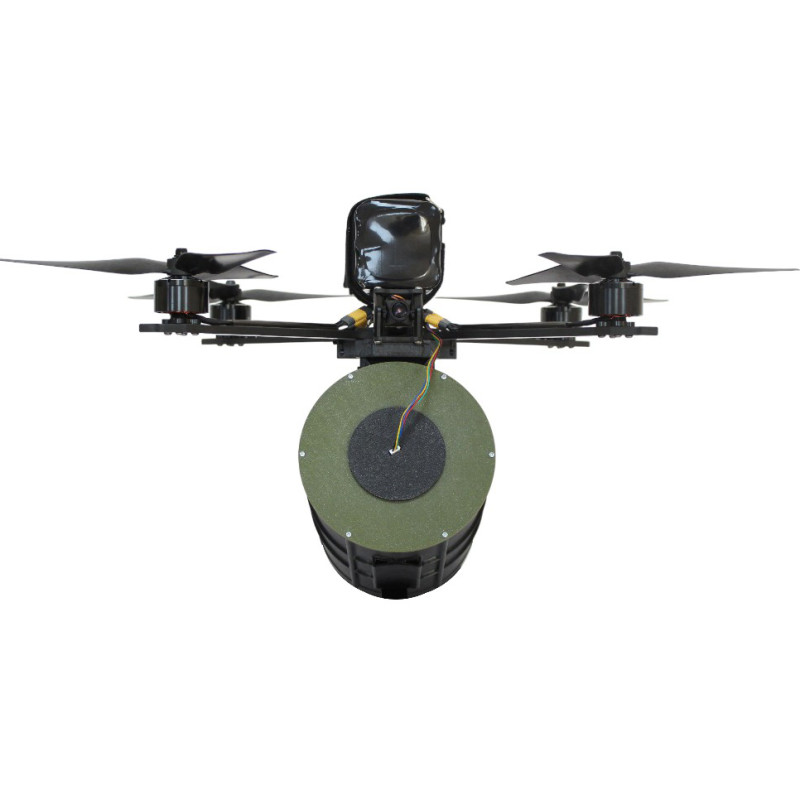

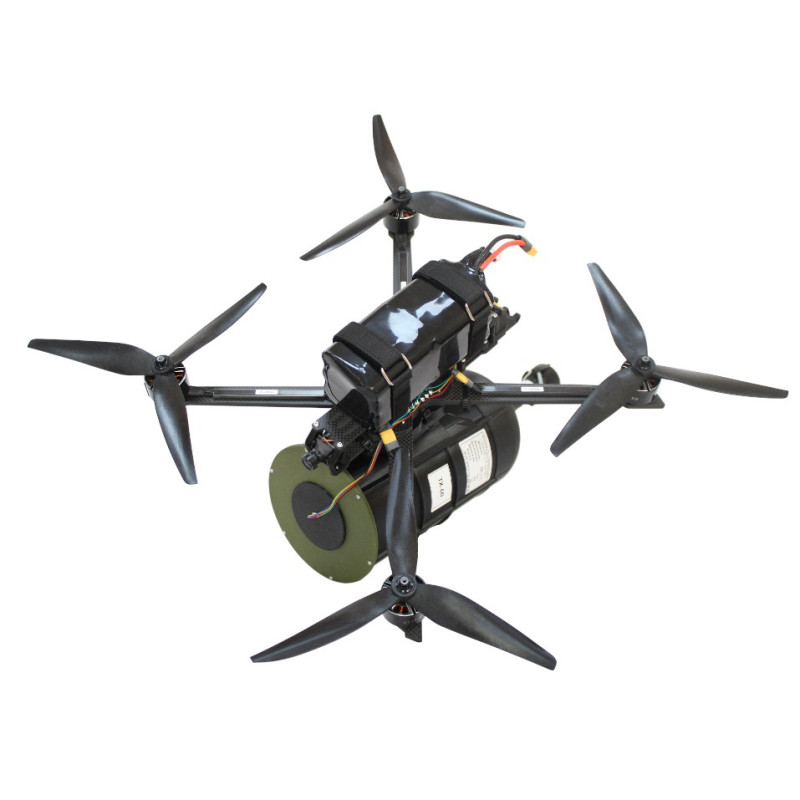

FPV Drone 10" with Fiber Optic "ASTRALEXPRESS" — RAPTOR 10

Model Name: UAV "RAPTOR 10" (FPV drone 10" with ASTRALEXPRESS fiber optic reel).

Manufacturer: Astral Express. Category: Drones & Quadcopters > FPV Drones.

Description: A compact and powerful FPV drone with a 10-inch carbon frame and an integrated 10 km fiber optic reel manufactured by ASTRALEXPRESS. RAPTOR 10 is designed for professional applications: surveillance, rapid payload delivery up to 2.0 kg, and performing tasks in challenging conditions thanks to its robust construction and modular assembly.

Key Advantages:

• Proprietary Ukrainian production — guarantee of quality and technical support;
• Powerful electronics: F722 + 60A stack for stable and precise control;
• High-quality Caddx Ratel Pro camera — clear image day and night;
• Modular design — easy component replacement and maintenance;

Main Characteristics:

• Reel length: 10 km;
• Payload: up to 2.0 kg (for 10 km reel configuration);
• Flight speed: cruising 60-70 km/h, maximum up to 120 km/h;
• Maximum flight duration: up to 10 min (for 10 km reel configuration).

Dimensions (unequipped/equipped):

• Length - 335 mm (equipped 550 mm);
• Width - 335 mm (equipped 550 mm);
• Height - 40 mm (equipped 345 mm).

Technical Data:

• Frame material: carbon;
• Frame brand name: Carbon Frame 10;
• Motors: 3115 / 900KV;
• Propellers: 10×5×3 (set 2 CW + 2 CCW);
• Camera: Caddx Ratel Pro for high-quality video transmission;
• Battery: 6s3p, 15000 mAh (1 pc.).

Package Contents:

• Carbon frame 10";
• Stack: F722 + 60A;
• Camera: Caddx Ratel Pro;
• Motors: 3115/900KV;
• Propeller set: 10×5×3 (2 CW + 2 CCW);
• Battery: 6s3p 15000 mAh (1 pc.);
• Straps;
• Packaging.

Purpose and Application: An ideal choice for professional FPV pilots, visual observation operators, for small cargo delivery tasks, and for use in projects requiring reliable fiber optic data transmission up to 10 km. The modular design allows for quick maintenance and adaptation to various tasks.

Please note: Flight characteristics (speed, duration) depend on configuration, payload mass, and operating conditions.
